Heatecx mica sheets represent the most reliable insulation solution for high-temperature and high-voltage environments. Designed for the manufacturing of electrical resistors, transformers, and heating equipment, our Muscovite Mica and Phlogopite Mica sheets offer an unparalleled combination of thermal stability, dielectric strength, and mechanical durability.

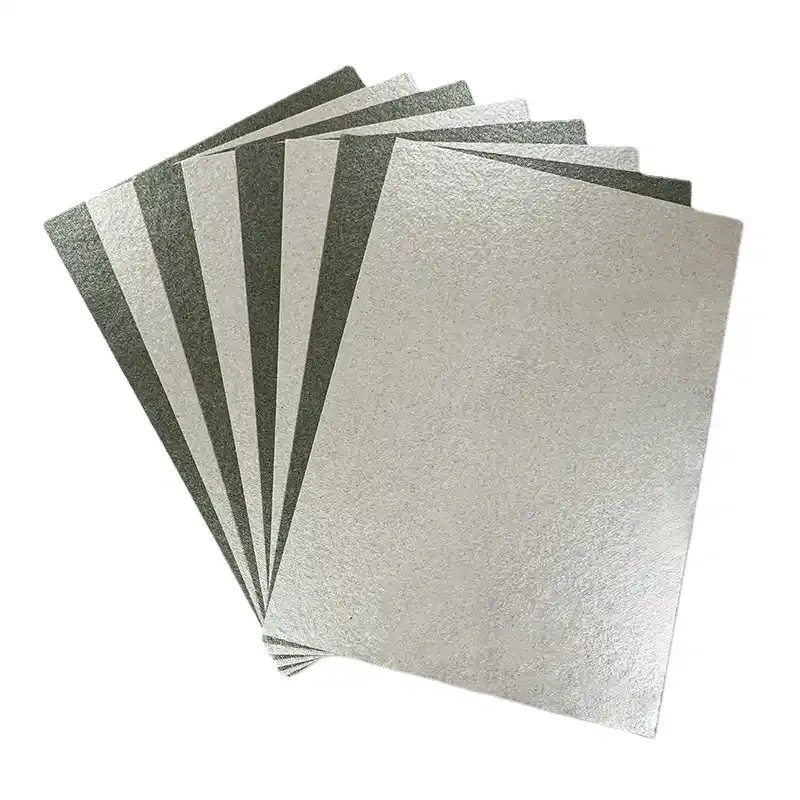

Mica sheets are high-performance insulating materials, manufactured from mica paper (muscovite or phlogopite) impregnated with a high-temperature silicone resin. This compound is pressed and subjected to heat to form rigid or flexible sheets with an exceptional combination of electrical resistance and thermal resistance. They are the ideal solution for thermal and electrical insulation in extreme working environments.
There are two main types, differentiated by their mineral composition and their limiting properties:
• Muscovite Mica: Derived from the muscovite mineral, it is characterized by its light or silvery color. It offers superior dielectric rigidity, making it the preferred choice for applications where electrical insulation is critical. Its continuous working temperature reaches 800 °C.
• Phlogopite Mica: Derived from the phlogopite mineral, it has an amber or brown color. Its main advantage is significantly higher high-temperature resistance, continuously supporting up to 1000 °C, being essential in the industrial heating industry.
This material is fundamental in the manufacturing of heating elements, providing structural support and safe insulation that guarantees the longevity and efficiency of the equipment.
Dielectric Properties and Regulatory Compliance
Mica is an inorganic material with a laminar structure that gives it exceptional dielectric properties, crucial for electrical insulation in high-voltage equipment.
Dielectric Strength
The ability of mica to withstand electric fields without failing is its main advantage.
|
Mica Type |
Dielectric Strength (kV/mm) |
Test Standard |
|
Muscovite |
120 – 200 |
ASTM D149 / IEC 60243-1 |
|
Phlogopite |
115 – 140 |
ASTM D149 / IEC 60243-1 |
Regulations and Quality Standards
Our mica sheets comply with the most rigorous international standards for insulating materials:
• IEC 60371: Specification for mica-based insulating materials. This standard defines the quality requirements, test methods, and specifications for different types of mica products, ensuring uniformity and performance.
• ASTM D149: Standard test method for dielectric breakdown voltage and dielectric strength.
• UL 94: Due to its inorganic nature, mica generally achieves a V-0 flammability rating, making it ideal for applications where fire safety is paramount.
he versatility of mica sheets positions them as a key component in a wide range of industries, especially those that handle extreme heat and require reliable electrical insulation.
|
Application |
Recommended Mica Type |
Emphasis on Key Property |
|

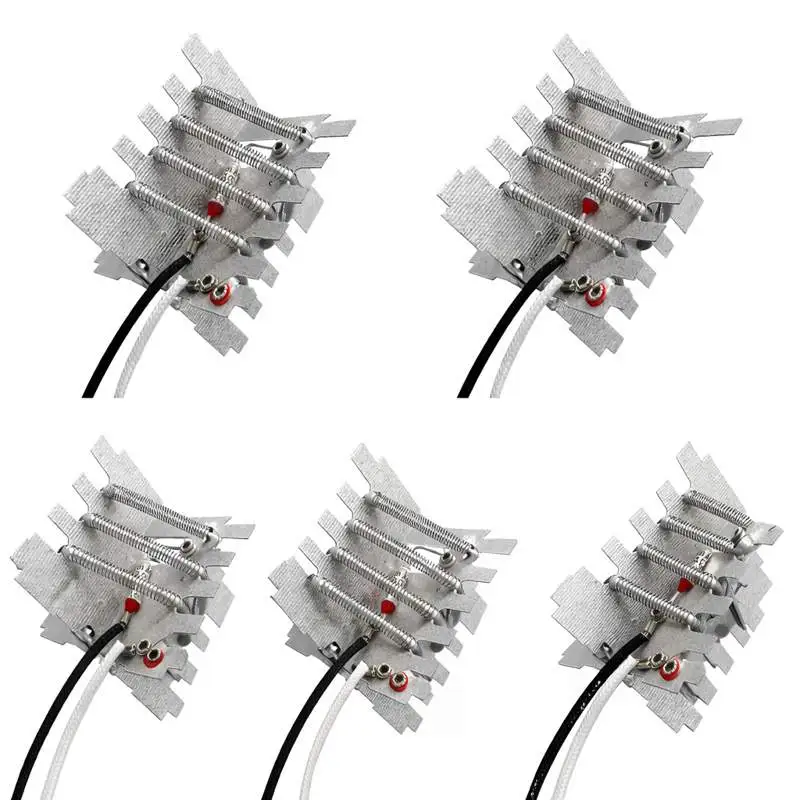

Heating Elements (Resistors) |
Muscovite (up to 800°C) / Phlogopite (up to 1000°C) |
Structural support and thermal insulation |
|
Transformer Insulation |
Muscovite |
Dielectric strength and moisture resistance |
|
Industrial Furnaces and Foundries |
Phlogopite |
High-temperature resistance (up to 1000°C) |
|
Home Appliances (Toasters, Dryers, Microwaves) |
Muscovite |
Electrical insulation and thermal barrier |
|
Induction Systems |
Muscovite |
Coil insulation and discharge protection |
|
Gaskets and Thermal Seals |
Phlogopite |
Compression and extreme heat resistance |
|
Automotive Industry (Exhaust Systems) |
Phlogopite |
Vibration and temperature resistance |
The ability of mica to maintain its dielectric properties even at elevated temperatures makes it irreplaceable in protecting sensitive components against thermal stress and electrical failures.
The following table compares the key properties of muscovite and phlogopite mica sheets, providing essential data for material selection.
|
Property |
Unit |
Muscovite Mica (M) |
Phlogopite Mica (P) |
Test Method |
|
Continuous Working Temperature |
°C |
500 - 600 |
750 - 800 |
IEC 371-3-3 |
|
Peak Temperature |
°C |
800 |
1000 |
|
|
Dielectric Strength |
kV/mm |
15 - 20 (up to 200) |
12 - 18 |
ASTM D149 |
|
Flexural Strength |
MPa |
> 150 |
> 120 |
ASTM D790 |
|
Density |
g/cm³ |
2.0 - 2.4 |
2.0 - 2.4 |
ASTM D792 |
|
Water Absorption (24h) |
% |
< 0.2 |
< 0.2 |
ASTM D570 |
|
Weight Loss by Heating |
% |
< 2.0 (at 500°C) |
< 2.0 (at 800°C) |
|
|
Insulation Class |
C |
C |
||
|
Thermal Conductivity |
W/m·K |
~0.3 |
~0.3 |
Note: Dielectric strength values can vary significantly depending on thickness and binder. Muscovite mica is superior in this property.
Mica sheets offer a set of properties that surpass traditional insulators in high-temperature and high-voltage applications.
• Excellent Thermal Resistance: Phlogopite mica can operate continuously at 800 °C, with peaks up to 1000 °C, ensuring safety and performance in the hottest environments.
• Superior Electrical Insulation: Muscovite mica stands out for its high dielectric strength (up to 200 kV/mm), preventing short circuits and insulation failures even under stress.
• Dimensional Stability: They maintain their shape and physical properties under pressure and heat, which is crucial for the support of electrical resistors and equipment integrity.
• Chemical Resistance: They are inert to most chemicals, oils, and solvents, which prolongs their useful life in aggressive industrial environments.
• Non-Flammable: Mica is an inorganic material that does not burn or produce toxic smoke, offering an additional layer of safety.
• Low Thermal Conductivity: They act as an efficient thermal insulator, minimizing unwanted heat transfer.

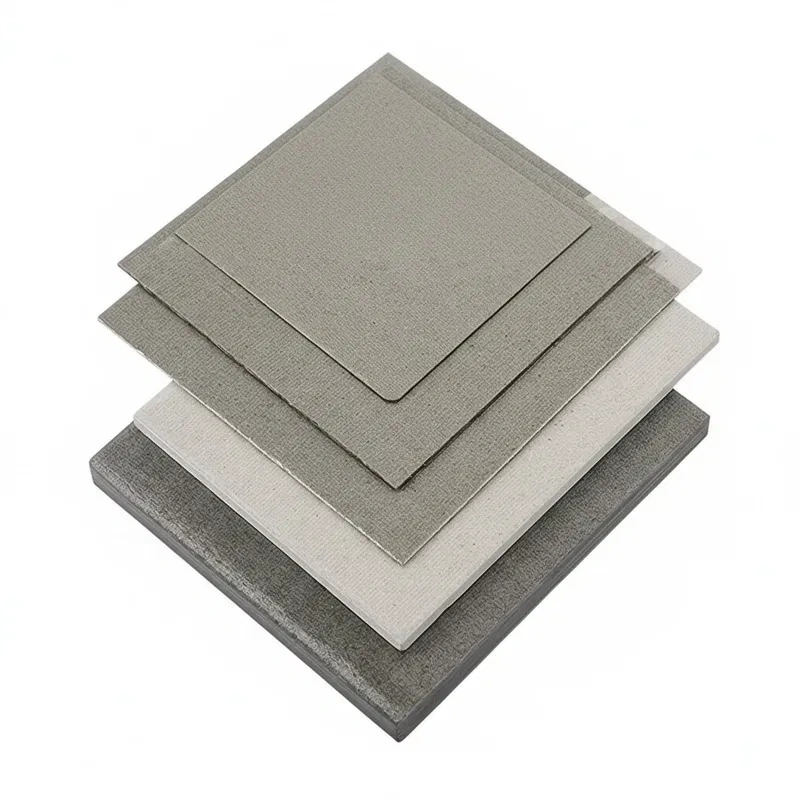

The sheets are composed of high-purity mica paper, agglomerated with silicone or epoxy resins to form a rigid or flexible composite material, depending on the application.
|
Feature |
Detail |
|
Standard Thickness |
0.10 mm to 2.00 mm |
|
Special Thickness |
Options available up to 5.00 mm |
|
Standard Dimensions |
1000 × 600 mm, 1000 × 1200 mm, 1000 × 2400 mm |
|
Formats |
Rigid (for plates and supports) and Flexible (for wrapping and insulating) |
|
Service |
Custom cutting (CNC) |
|
Moisture Resistance |
Very low hygroscopicity (<0.1%) |
We offer a wide range of formats and customization options to meet the specific needs of your electrical and thermal insulation project.
• Standard Formats: We supply rigid and flexible sheets in various thicknesses (from 0.1 mm to 50 mm) and standard dimensions.

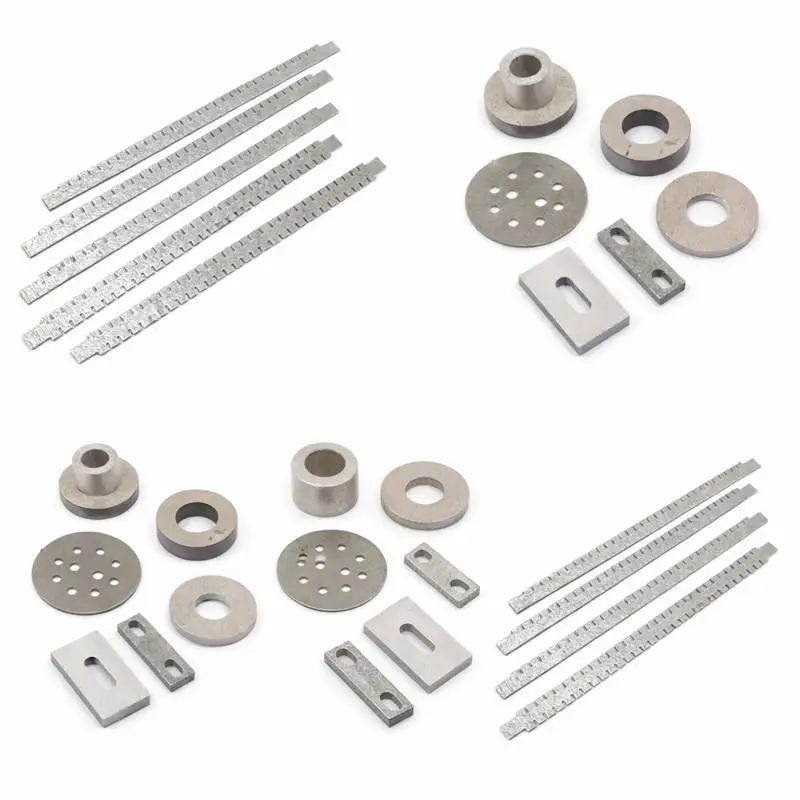

• Die-Cut and Machined Parts: We can manufacture custom parts with high precision using laser cutting, die-cutting, or CNC machining. This includes:
◦ Mica Washers: Used to insulate screws and fasteners in heating elements.
◦ Mica Strips: Ideal for slot insulation in motors and transformers.
◦ Discs, gaskets, spacers, and complex 3D shapes.
• Flexible Sheets: For applications requiring wrapping or insulating curved shapes, such as coils or cables.
• Mica Tapes: Used for fire-resistant cable insulation.
• Coatings: Options with special coatings to improve moisture resistance or adhesion.
Our customization service ensures that the muscovite mica or phlogopite mica material perfectly adapts to the high-temperature and electrical resistance requirements of your application.
The Definitive Guide to Choosing High-Temperature Insulation
In the heating and power electronics industry, insulating material is not a simple component; it is the guarantee of safety, efficiency, and useful life of your final product. Choosing between Muscovite Mica and Phlogopite Mica is a strategic decision that must be based on precise technical data. At Heatecx, we provide you with the clarity needed to optimize your design.
The Key to Choice: Temperature vs. Dielectric Strength
Both types of mica sheets are natural silicates with a laminar structure that gives them exceptional insulating properties. However, their slightly different chemical composition defines their performance limits, especially in high-temperature and high-voltage environments.
|
Critical Factor |
Muscovite Mica |
Phlogopite Mica |
|
Max. Thermal Resistance |
Up to 800 °C |
Up to 1100 °C |
|
Dielectric Strength |
120 – 200 kV/mm (Maximum Electrical Protection) |
115 – 140 kV/mm (Excellent Thermal Resistance) |
|
Ideal Application |
Electrical insulation in transformers, capacitors, and standard heating resistors. |
Thermal insulation in industrial furnaces, foundry equipment, and fire barriers. |
Muscovite Mica: When Voltage is the Priority
If your project involves high voltage and requires maximum protection against dielectric breakdown, Muscovite Mica is your ally. Its superiority in kV/mm makes it the preferred option for sensitive electronic components and equipment where electrical safety is the limiting factor. It is the most cost-effective and efficient solution for applications operating below 700 °C.
Phlogopite Mica: The Solution for Extreme Heat
For applications consistently exceeding 800 °C, such as high-temperature furnaces or exhaust systems, Phlogopite Mica is indispensable. Its stability at 1100 °C ensures that the insulation maintains its structural integrity and insulating properties without degradation, preventing costly failures and downtime. Choosing Phlogopite is an investment in the longevity and reliability of your equipment under the most severe conditions.
Do not compromise the safety or performance of your products. The correct selection of the mica sheet is the first step towards a robust and durable design.
Do you need technical advice to define the type of mica and the optimal thickness for your electrical resistance?
Contact our Heatecx specialists today for a no-obligation consultation and request your custom cut.
