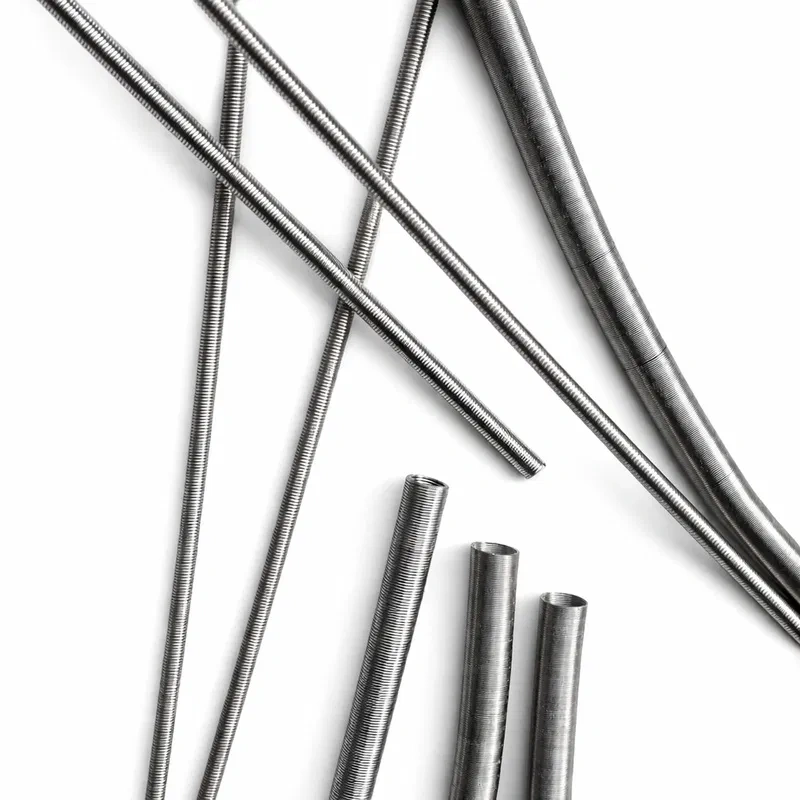

The versatility of the HT-B1 winding machine makes it indispensable in various applications within the electronic and electrical industry. It is perfect for manufacturing coils for resistors or for winding resistance wire, where winding precision is critical for component performance. It is also widely used in the production of high-frequency inductors, small and medium-sized power transformers, and coils for miniature electric motors. Its ability to handle fine wire and copper wire of various gauges makes it an essential tool for creating solenoids, sensors, and other electromagnetic devices. In summary, any application requiring precise and repeatable wire winding greatly benefits from the capabilities of the HT-B1, ensuring quality and efficiency in the production of electronic components.

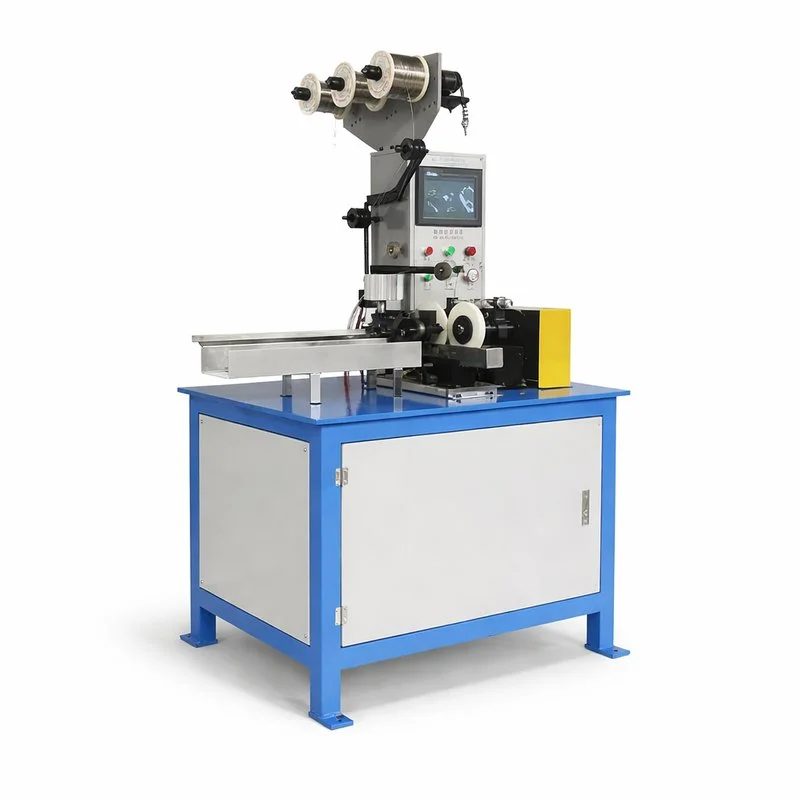

The HT-B1 wire coiling machine incorporates advanced features that translate into significant operational advantages:

•       Efficiency: Designed for high-speed coil production, the HT-B1 minimizes cycle times thanks to its multiple wire winding capability (single, double, or triple) and its adjustable dual-speed system. This results in increased productivity and reduced operating costs.

•       Stability: Its robust construction and high-quality components ensure stable and reliable long-term operation. Precise wire tension control and winding guide ensure uniform and defect-free winding, contributing to the quality of the final product.

•       Automation: The optional PLC (Programmable Logic Controller) control elevates the level of winding automation, allowing the programming of complex patterns and reducing manual intervention. This improves winding precision and repeatability, ideal for mass production.

•       Safety: The machine's design prioritizes operator safety, incorporating protection mechanisms and intuitive operation that minimizes risks during the winding operation.

•       Maintenance: With a modular design and easy access to key components, the HT-B1 is designed for simple and quick maintenance, which reduces downtime and extends equipment lifespan. This ensures a durable winding machine with low ownership cost.

•       Flexibility: The winding machine's customization capability with different line configurations and pressure rollers, along with control options, offers unparalleled flexibility to adapt to various winding needs.

The HT-B1 winding machine presents the following technical specifications, which make it a high-performance winding machine:

The HT-B1 resistance wire coiling machine stands out for its exceptional winding machine customization capability, allowing customers to configure the machine according to their exact coil production requirements. Options include:

•       Number of Wires Configuration: Choice between single-wire winding, double-wire winding, or triple-wire winding to maximize efficiency based on the coil design.

•       Pressure Roller Structure: Selection of a single pressure roller for standard applications or a double pressure roller for superior tension control and more precise winding on delicate or complex materials.

•       Control System: Option between a digital counter for simple and cost-effective operations, or an advanced PLC control for complete automation, complex pattern programming, integration with production systems, and diagnostic capabilities. This option is ideal for winding automation and Industry 4.0.

This flexibility ensures that each HT-B1 winding machine is an optimized investment, capable of evolving with production demands and innovations in electronic component design.
