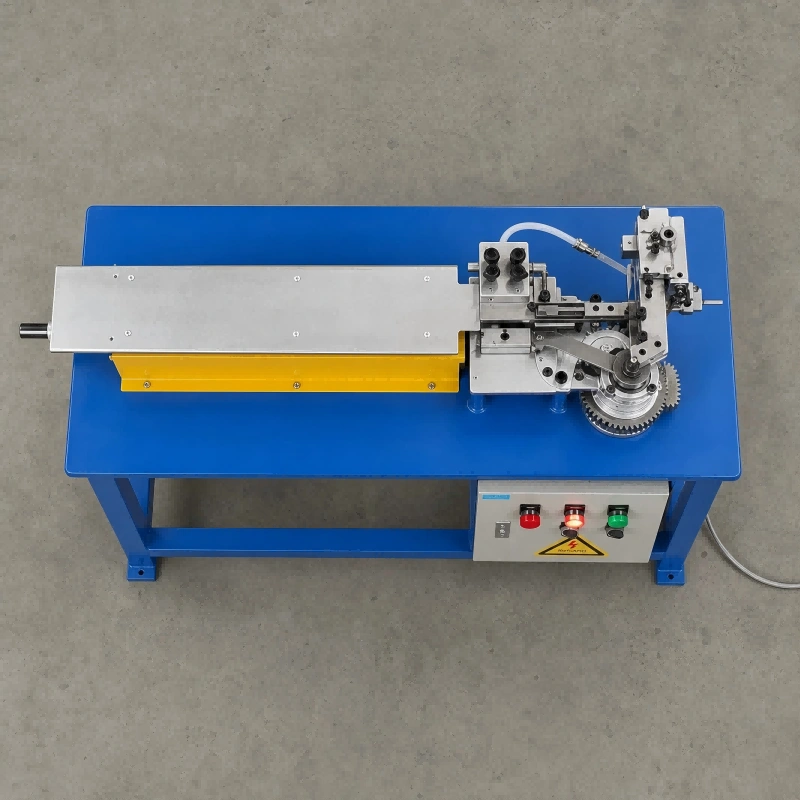

The HTD-2A tube bending machine is an advanced engineering solution, custom-designed for bending special tubes and tubular heaters that present unique manufacturing challenges. This single-end bending equipment is ideal for applications where tubes are exceptionally long (exceeding 3000 mm), require 90 or 180-degree bends in short sections, have a considerable diameter, or when the tube’s configuration prevents the use of double-head machines. The HTD-2A is distinguished by its versatility, integrating hydraulic, pneumatic, and mechanical structures to offer robust and adaptable performance for various industrial needs.
The HTD-2A tube bending machine is a state-of-the-art engineering solution, tailor-made for bending special tubes and tubular heating elements that pose unique challenges in manufacturing processes. This single-end bending equipment is ideal for applications where tubes are exceptionally long (over 3000 mm), require 90 or 180-degree bends in short sections, have a large diameter, or when the tube's configuration prevents the use of double-head machines. The HTD-2A stands out for its versatility, integrating hydraulic, pneumatic, and mechanical structures to deliver robust and adaptable performance for diverse industrial requirements.
This precision tube bending machine is optimized to work with a wide range of materials, including copper, iron, stainless steel, and aluminum tubes. Its design allows for highly reliable 90-degree and 180-degree bends, ensuring the material's integrity and the final piece's geometric accuracy. The HTD-2A is the perfect choice for manufacturers seeking a tube bending solution for electrical resistances or components that demand complex configurations and tight tolerances, guaranteeing efficiency and quality in the production of tubular heating elements.
The flexibility and capability of the HTD-2A tube bending machine make it indispensable in sectors that require tube forming with particular specifications. Its main applications include:

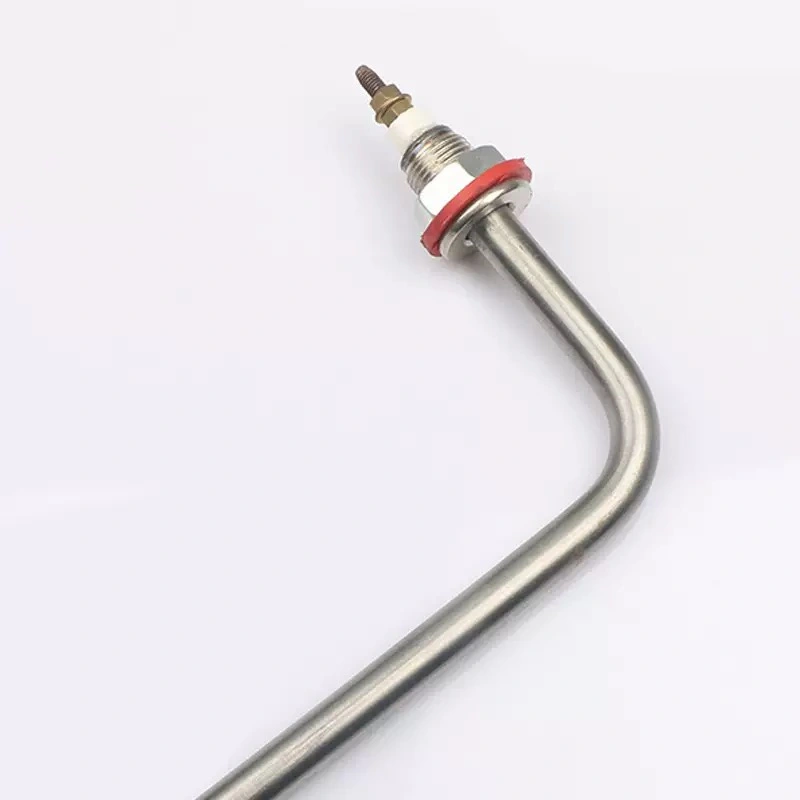

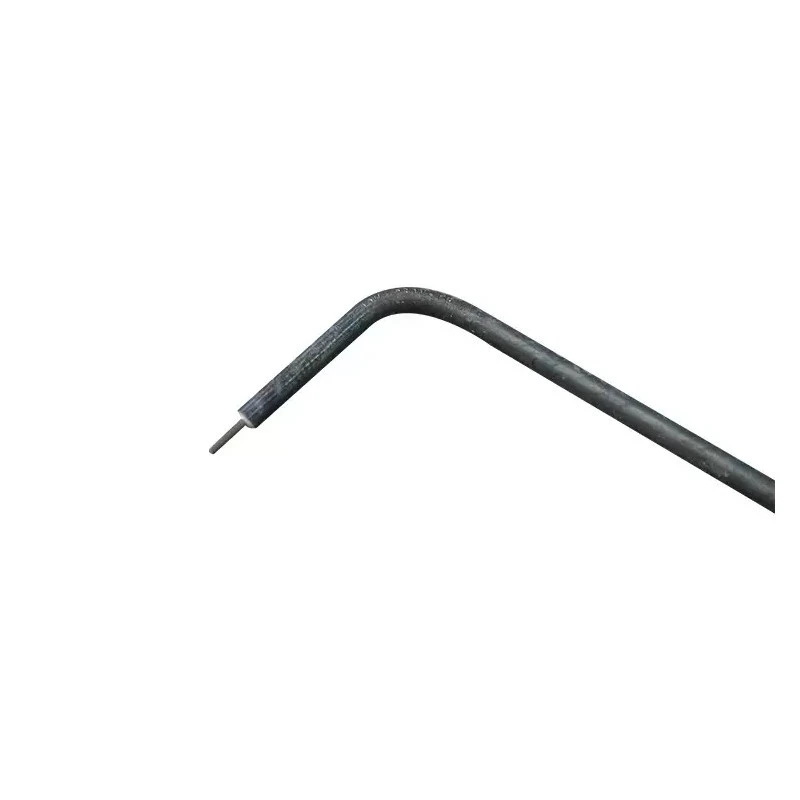

• Manufacturing of Tubular Heaters: It is fundamental in the production of tubular electric heaters for ovens, water heaters, household appliances, and industrial heating systems, where precise 90 and 180-degree bends are needed in tubes of various lengths and diameters.
• Automotive Industry: Bending of brake lines, exhaust systems, and chassis components that require complex shapes and careful handling of long or large-diameter tubes.
• HVAC/R: Forming of coils and ducts for air conditioning units, heat exchangers, and refrigeration systems, often with copper or aluminum tubes.
• Furniture and Metal Structures: Creation of curved components for furniture, handrails, support structures, and other decorative or functional elements that use metal tubes.
• Medical and Laboratory Equipment: Bending of tubes for specialized equipment where precision and material quality are critical.
The HTD-2A is the tube bending machine for special applications that guarantees the ability to produce complex, high-quality parts in demanding production environments.
The HTD-2A offers a unique combination of features that position it as a superior tool for single-end tube bending.
|
Feature |
Customer Advantage |
|
Custom Design for Special Pipes |
Allows for the efficient bending of long tubes (over 3000 mm), with short 90-degree bends and large diameters, solving challenges that standard machines cannot address. |
|
90° and 180° Bending Capability |
Offers the flexibility needed to create a wide variety of tube shapes and configurations, from right angles to full U-bends. |
|
Hybrid Structure (Hydraulic, Pneumatic, Mechanical) |
Combines the power and smoothness of the hydraulic system, the speed and control of the pneumatic system, and the robustness of the mechanical system, resulting in precise, efficient, and adaptable bending for different materials and thicknesses. |
|
Compatibility with Multiple Materials |
Suitable for copper, iron, stainless steel, and aluminum tubes, making it a versatile investment for various production lines and materials. |
|
Single-End Bending |
Optimal solution for tubes that cannot be bent by double-head machines, such as those with asymmetrical geometries or pre-assembled components on one end. |
|
High Precision and Repeatability |
Ensures that each bent piece meets the exact specifications, reducing material waste and ensuring the quality of the final product. |
|
Parameter |
Value |
|
Model |
HTD-2A Single End Pipe Bending Machine |
|
Bending Angles |
90 degrees and 180 degrees |
|
Minimum Tube Length (special applications) |
> 3000 mm (for long tubes) |
|
Tube Diameter (special applications) |
Larger diameter (specific to customization) |
|
Bending Type |
Single-end bending |
|
Operating Structure |
Hydraulic, Pneumatic, Mechanical |
|
Compatible Materials |
Copper, Iron, Stainless Steel, and Aluminum Tubes |
|
Featured Applications |
Bending of tubular heaters, tubes with short 90-degree bends, large-diameter tubes. |

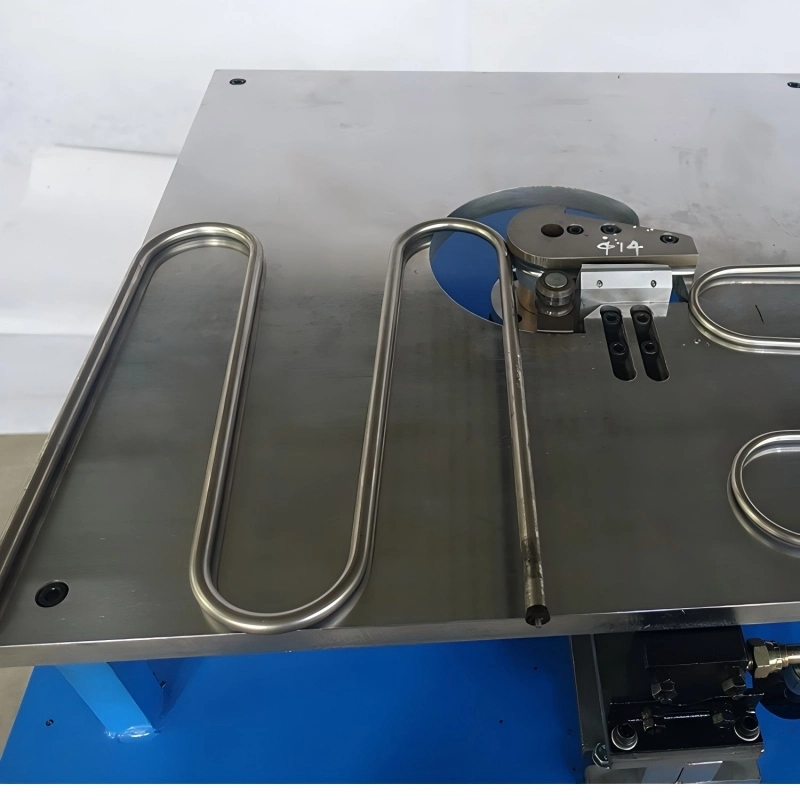

For long tubes exceeding 3 meters, the machine utilizes special supports to prevent the tube from sagging. For short 90° bends, it employs precision dies and fine pressure control, allowing the bend to be made without crushing the tube or reducing its internal diameter, which is critical in tubular heaters.
