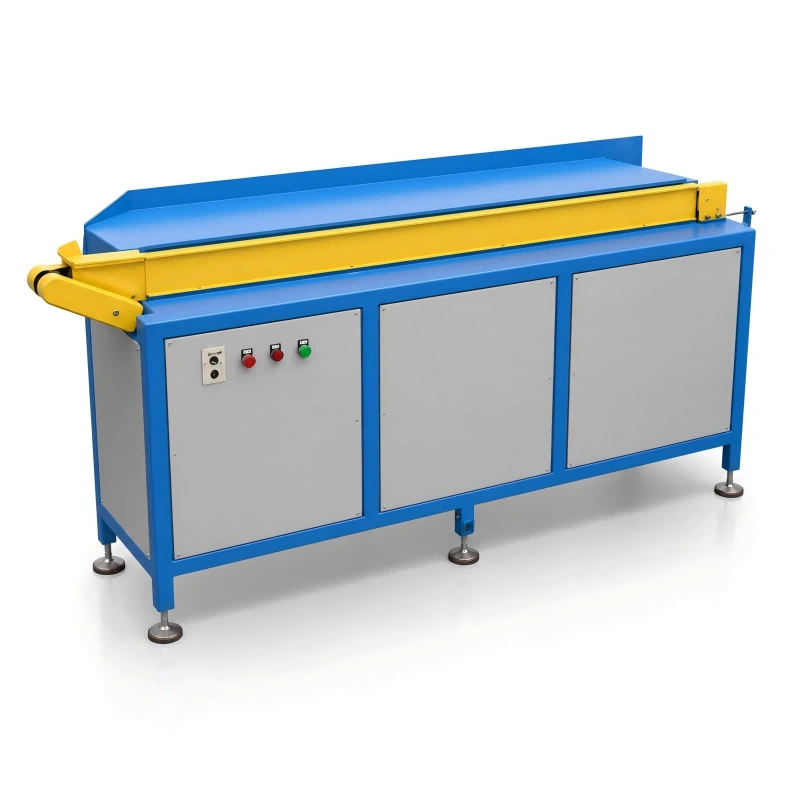

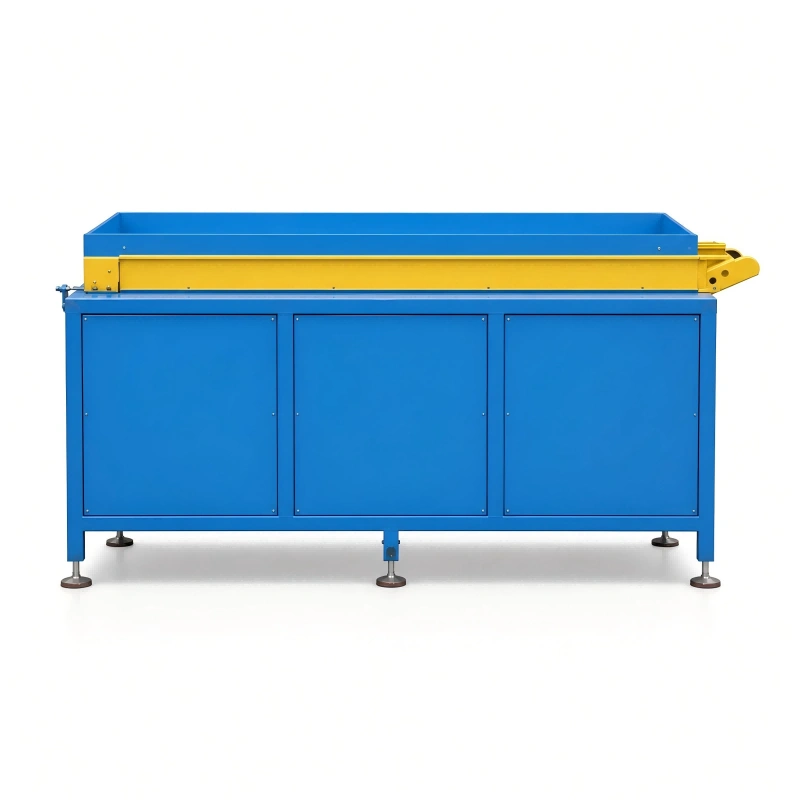

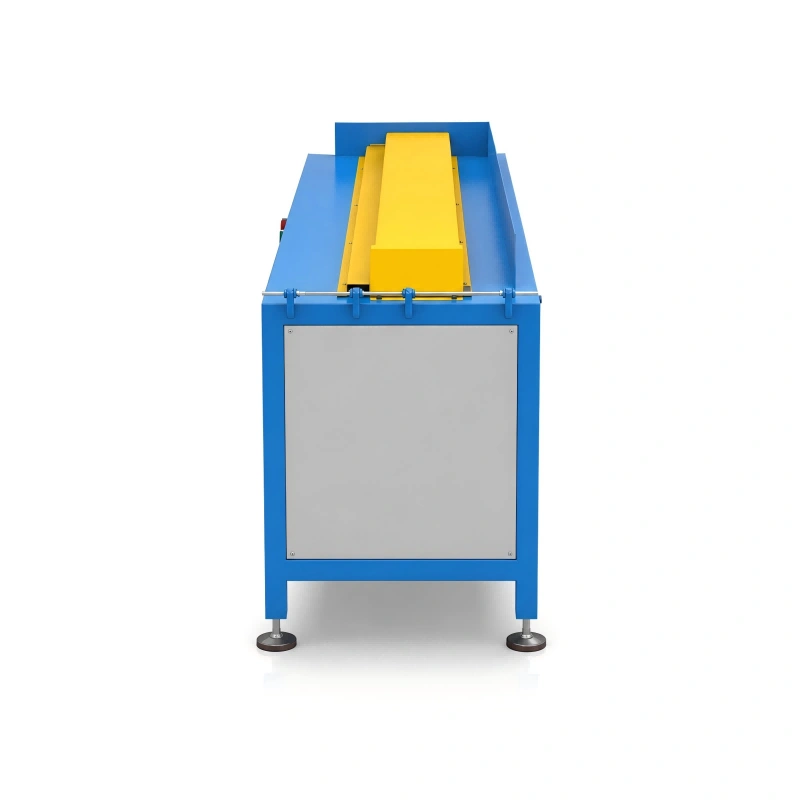

The MAP-01 is an automatic feeding machine specifically designed to optimize the process of reducing electric heaters in various industrial applications. This innovative equipment integrates into the production line to efficiently feed tubes previously filled with MgO and subjected to heater tests, ensuring a continuous and automated flow towards the heater rolling machine.
The MAP-01 is an automatic feeding machine specifically designed to optimize the tube reduction process in various industrial applications. This innovative equipment integrates into the production line to efficiently feed tubes previously filled and subjected to heater tests, ensuring a continuous and automated flow towards the tube reduction machine. Its robust design and easy handling make it an ideal solution for manufacturers looking to improve productivity and quality in the production of tubular components, such as tubular heaters and electrical heaters.

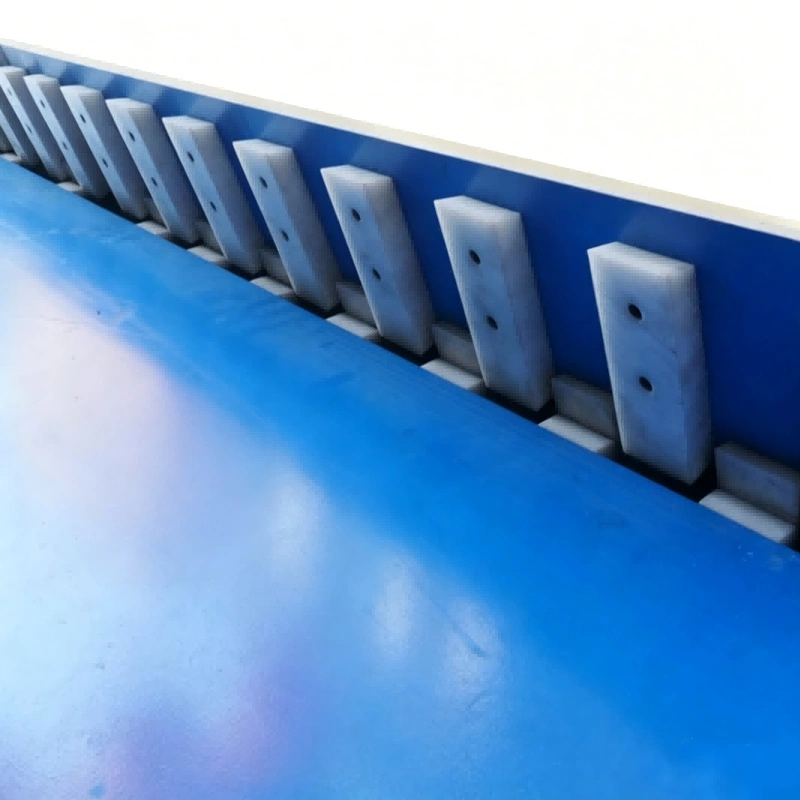

The operation of the MAP-01 machine begins with the manual loading of tubes, which have been previously filled and verified by a high-voltage heater test. The qualified tubes are deposited in the machine's storage hopper. Once the switch is activated, the PLC control system takes over, automatically transporting the tubes one by one to the Tubular Heater Rolling Machine. A key component is its automatic high-voltage detection system, which ensures that only tubes that meet quality standards are processed, automatically separating any defective elements. The transport speed is adjustable, which prevents jams and ensures smooth and precise feeding, thus optimizing the tube reduction cycle.
• Automatic PLC Control: Incorporates a Programmable Logic Controller (PLC) system for precise, reliable, and fully automated operation, minimizing manual intervention and errors.
• Easy Handling: Designed for an intuitive user interface, which facilitates its operation and reduces the learning curve for personnel.
• Automatic High-Voltage Detection: Equipped with an integrated inspection system that verifies the high-voltage insulation test of each tube and automatically separates non-conforming elements, ensuring the quality of the final product.
• Adjustable Transport Speed: Allows regulating the feeding speed of the tubes, adapting to specific production needs and preventing interruptions due to jams.
• Production Optimization: By automating feeding and detection, the MAP-01 contributes to a significant increase in the efficiency and productivity of the tube reduction line.
• Reduction of Human Errors: The automation of the process minimizes the possibility of errors associated with manual handling.
Below are the key technical specifications of the MAP-01 machine:
|
Technical Parameter |
Value |
Unit |
|
Voltage |
220 |
V |
|
Frequency |
50 |
Hz |
|
Power |
60 |
W |
|
Input Air |
5 ~ 7 |
kgs/m² |
|
Speed |
5 ~ 15 |
m/min |
|
Applicable Tube Diameter |
6.5 ~ 21.0 |
mm |
|
Applicable Tube Length |
100 ~ 3000 |
mm |
|
Dimensions (LWH) |
1400 * 850 * 1100 |
mm (one-meter machine) |
|
Weight |
200 |
kgs |
It is important to clarify that the MAP-01 automatic feeding machine, as described in its technical data sheet, is equipment designed for the handling and transport of tubes before their reduction process. Its main function is the automatic feeding and high-voltage detection of tubes already filled and tested, to then send them to a reduction machine.
Therefore, the MAP-01 machine does not use or process refractory materials in its operation.
