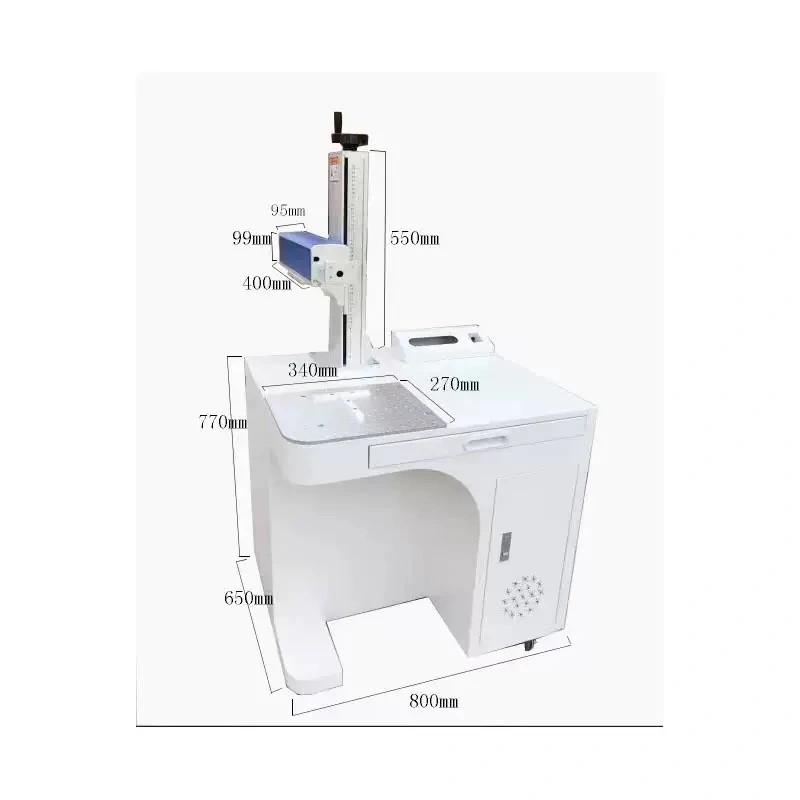

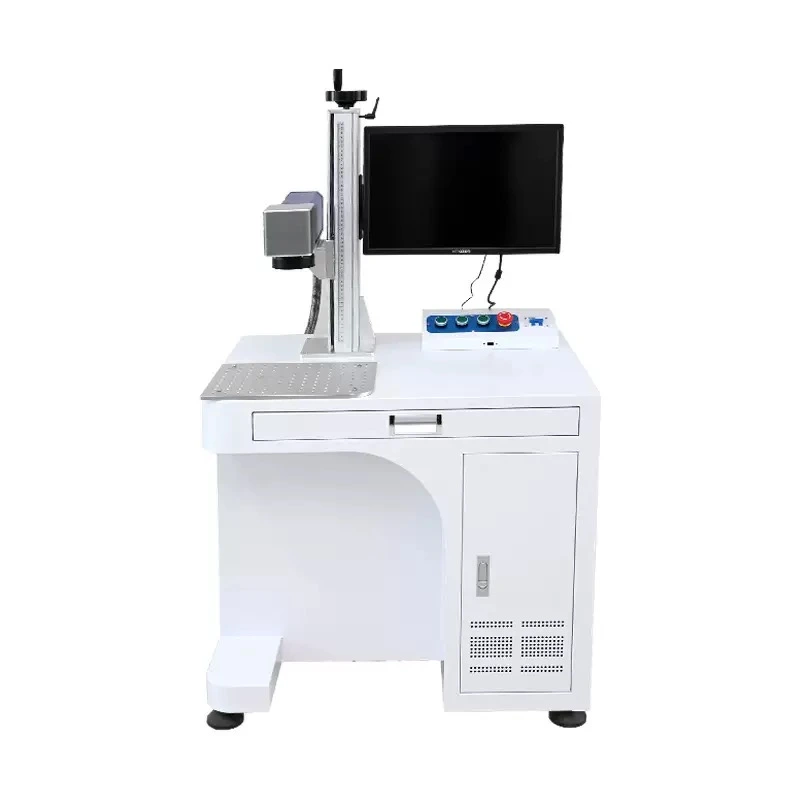

The ML-01 Fiber Laser Marking Machine is a state-of-the-art industrial laser marking system, engineered to deliver high-precision laser engraving solutions with exceptional efficiency across a wide range of applications. This equipment stands out for its integrated and compact design, facilitating seamless integration into various production lines and industrial environments. It leverages fiber optic laser technology to generate a powerful and stable laser beam, ideal for permanent marking on diverse materials. The ML-01 laser marker is operated intuitively via a USB control interface, simplifying its use and configuration.
The ML-01 Fiber Laser Marking Machine is a cutting-edge industrial laser marking system, meticulously designed to provide high-precision and efficient laser engraving solutions for a broad spectrum of applications. This equipment is distinguished by its integrated and compact design, which allows for easy integration into diverse production lines and industrial settings. It employs fiber optic laser technology to produce a powerful and stable laser beam, perfect for permanent marking on various materials. The ML-01 laser marker is intuitively operated through a USB control interface, streamlining its usage and setup. One of its significant advantages is the absence of consumables, which substantially reduces long-term operational and depreciation costs. It offers high marking efficiency, a long service life, and maintenance-free performance, surpassing the capabilities of traditional laser marking systems. It is the perfect solution for companies seeking to optimize product identification, traceability, and laser personalization processes.
The versatility of the ML-01 laser engraving machine makes it an indispensable tool across multiple industrial sectors for marking parts and components. Its primary applications include:
• Automotive Industry: Marking of chassis numbers (VIN), engine components, plastic, and metal parts for traceability and quality control.

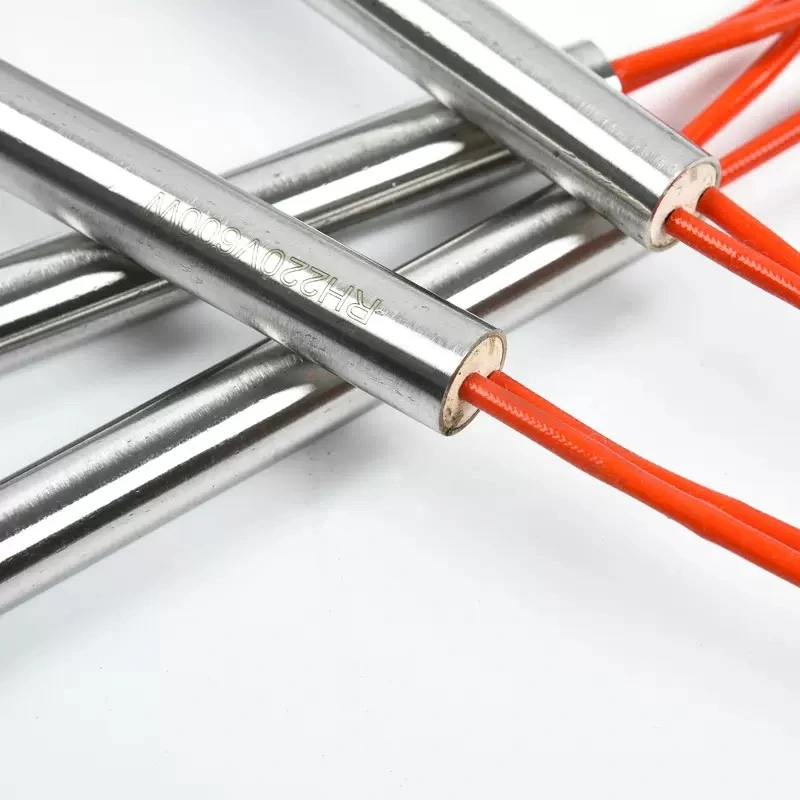

• Electronics: Engraving of electric heaters, printed circuit boards, electronic components, device housings, keyboards, and connectors with high precision.
• Jewelry and Watchmaking: Personalization of jewelry, engraving of logos, serial numbers, and complex designs on precious and non-precious metals.
• Medical Devices: Marking of surgical instruments, implants, and medical equipment with UDI codes, ensuring biosafety and traceability.
• Tools and Machinery: Identification of cutting tools, machine parts, nameplates, and industrial components.
• Packaging: Marking of barcodes, QR codes, expiration dates, and batch numbers on various materials for inventory management and product authentication.
• Promotional Items and Gifts: Personalization of pens, keychains, thermoses, and other objects with logos or text.
• Plastic Industry: Marking of housings, buttons, components, and plastic containers without damaging the material.
• Fiber Laser Technology: Incorporates a fiber laser, renowned for its reliability and efficiency.
• Versatile Power: Available in 10W, 20W, and 30W options to suit different marking needs and materials.
• High Marking Speed: Capable of reaching up to 7000 mm/s, optimizing production times.
• Exceptional Precision: Allows marking minimum characters down to 0.3 mm, ideal for fine details.
• Optimal Wavelength: 1064 nm, suitable for a wide range of metals and plastics.
• Superior Beam Quality: With an M² value < 2, it ensures a focused and high-quality laser beam.
• Power Stability: Maintains power stability of <±1%rms, guaranteeing consistent results.
• Air Cooling: Efficient and low-maintenance cooling system.
• USB Connectivity: Easy control and communication with marking software.
• Broad Graphic Support: Compatible with PLT, BMP, JPG, PNG, DXF, among other formats.

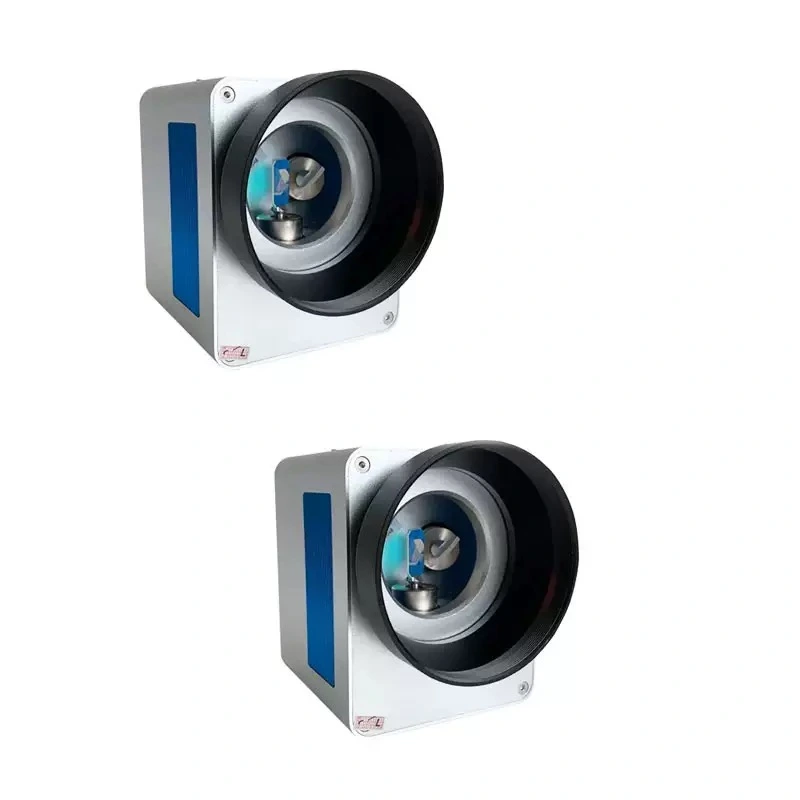

The ML-01 fiber laser marking machine operates on the principle of material ablation or surface modification using a high-energy laser beam. The process begins with the generation of a laser beam within an optical fiber cable doped with rare-earth elements, such as ytterbium. This beam is amplified and then directed through a high-speed galvanometric (galvo) scanner system, which consists of movable mirrors that position the laser beam with extreme precision over the surface of the material to be marked. The 1064 nm wavelength of the fiber laser is highly absorbed by metals and many plastics. When the laser beam strikes the material, the concentrated energy causes a localized reaction that can be:
• Engraving (ablation): The material vaporizes or melts and is expelled, creating a raised or deep mark.
• Annealing: In metals, the laser's heat causes a color change on the surface without removing material, creating a dark mark.
• Foaming: In plastics, the laser heats the material, creating gas bubbles that result in a raised, light-colored mark.
• Carbonization: In some organic materials, the laser carbonizes the surface, creating a dark mark.
The precise control of the laser's power, speed, and pulse frequency, along with the galvo system's positioning capability, allows for the creation of high-resolution marks, from QR codes and serial numbers to complex logos and detailed graphics. Air cooling ensures that the system operates within an optimal temperature range, guaranteeing laser stability and lifespan.
|
Technical Parameter |
Value |
|
Laser Type |
Fiber Laser |
|
Laser Power |
10W / 20W / 30W |
|
Maximum Marking Speed |
7000 mm/s |
|
Minimum Markable Character |
0.3 mm |
|
Laser Wavelength |
1064 nm |
|
Beam Quality (M²) |
< 2 |
|
Power Stability |
< ±1% rms |
|
Total Power Consumption |
< 8000 W |
|
Pulse Repetition Frequency |
20 KHz - 60 KHz |
|
Operating Ambient Temperature |
0°C - 45°C |
|
Working Voltage |
110/220V ±10% / 50/60Hz |
|
Cooling Method |
Air Cooling |
|
Supported Graphic Formats |
PLT, BMP, JPG, PNG, DXF |
Yes. The fiber laser marking machine is designed for easy integration into automatic or semi-automatic production lines. It can work alongside conveyor belts, robotic arms, and industrial automation systems, enabling continuous, precise marking synchronized with the production pace. Additionally, it supports communication with PLCs and other control systems for efficient integration.
