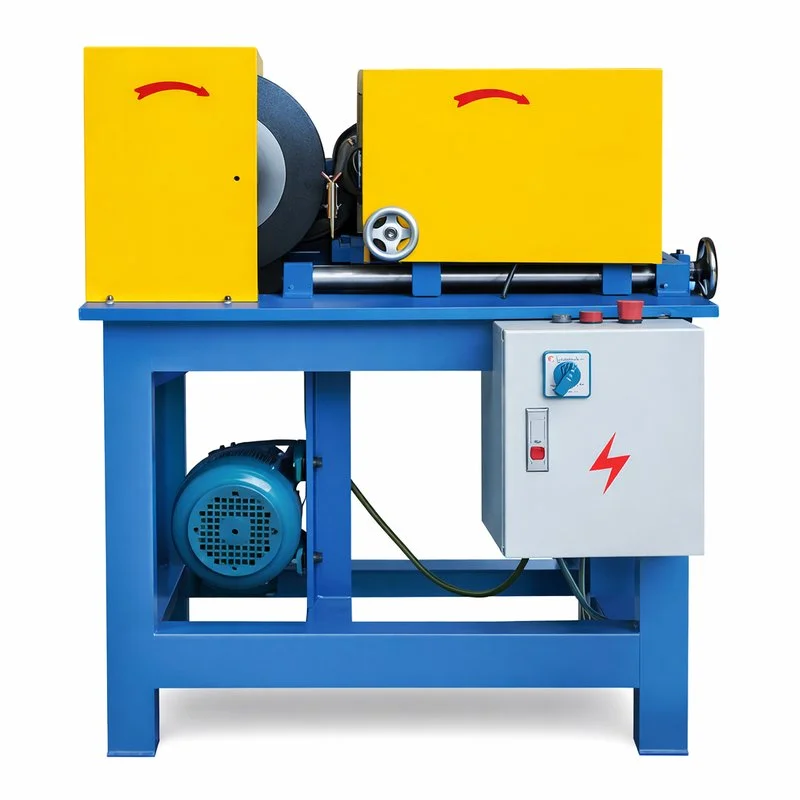

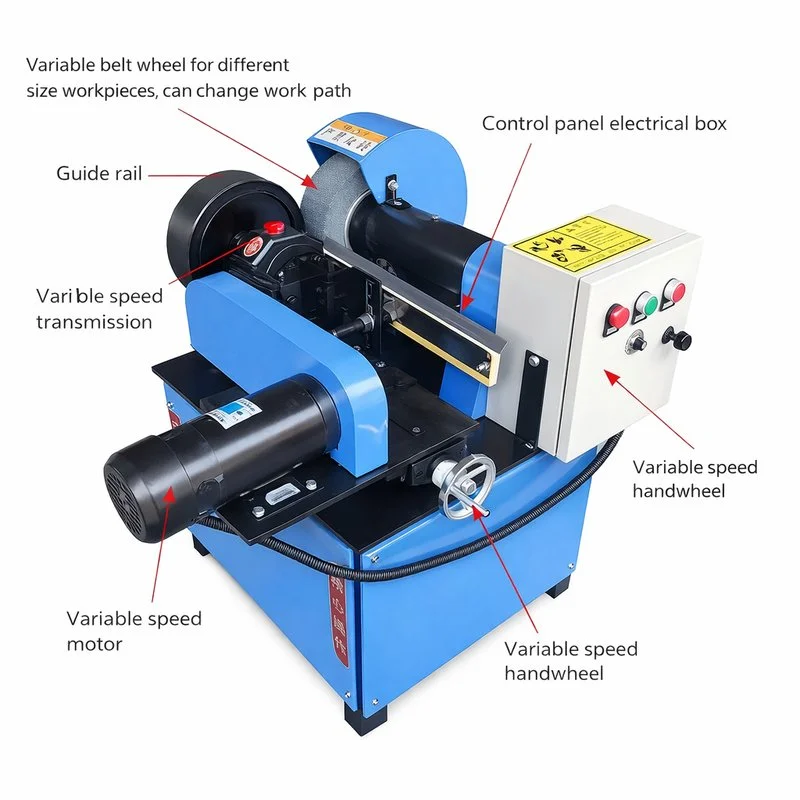

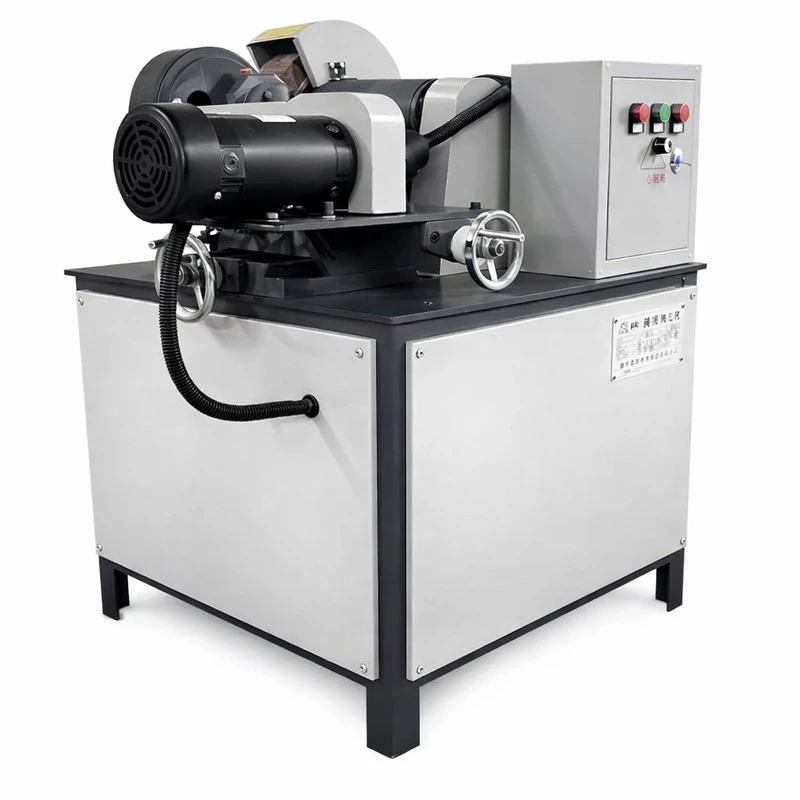

The MP01-1 Semi-automatic Tube Polishing Machine is a robust and efficient solution specifically designed for polishing round and straight tubes, as well as for finishing electrical resistors. This industrial polishing equipment is ideal for achieving high-quality surfaces on a wide range of metallic materials, including stainless steel, copper, aluminum, and other alloys.
The MP01-1 redefines the standard in surface treatment for cylindrical components. Designed specifically for the electric heating and technical piping industry, this semi-automatic station not only polishes but also restores and homogenizes the appearance of ferrous and non-ferrous metals with a consistency unattainable by manual methods.
Added Value and Performance:
• Material Versatility: Optimized to eliminate imperfections, extrusion marks, and oxidation on stainless steel (304/316), copper, brass, and aluminum, adapting to the specific hardness of each alloy.
• Specialization in Resistors: Its controlled drive and pressure system is ideal for finishing tubular resistors, ensuring that the polishing process does not compromise the integrity of the metal sheath or the internal insulation.
• Hybrid Engineering (Semi-automatic): It offers the speed of an industrial system with the flexibility needed for quick adjustments between different tube diameters, maximizing uptime in variable production lines.
• Industrial-Grade Durability: Built on a high-strength chassis, the MP01-1 minimizes vibrations, which translates into a more uniform "mirror" or satin finish (depending on the abrasive) and a longer lifespan for polishing consumables.
The versatility of the MP01-1 tube polisher makes it indispensable in multiple industrial sectors that require high-precision polishing of tubular components and resistors. Its main applications include:

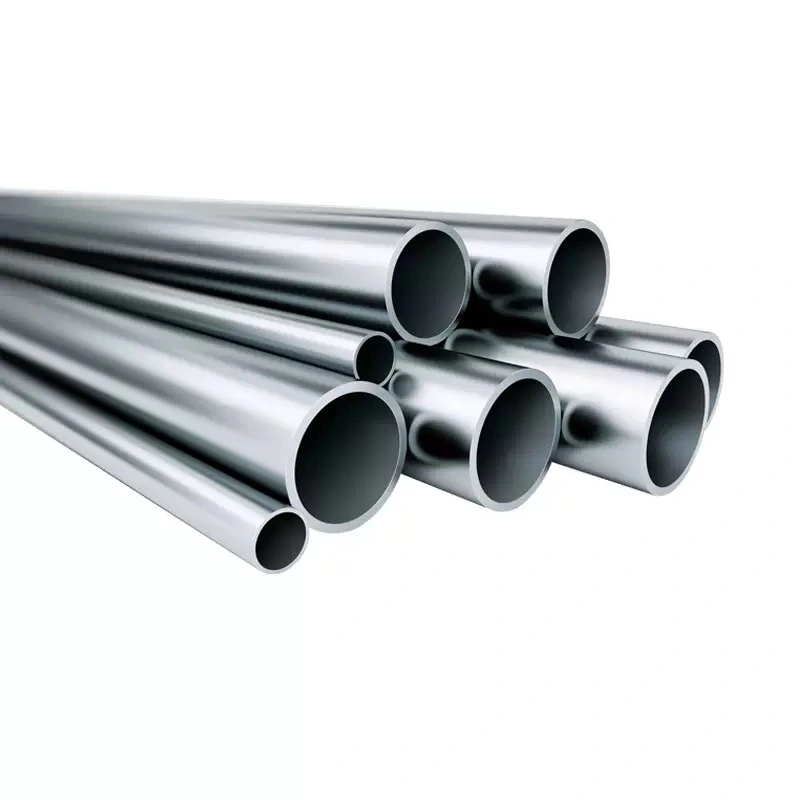

• Metallurgical Industry: Polishing of stainless steel, copper, and aluminum tubes for structural, decorative, or functional applications.
• Manufacturing of Electrical Resistors: Surface finishing to improve conductivity, corrosion resistance, and the aesthetics of resistors.
• Automotive: Polishing of tubular components for exhaust systems, chassis, or decorative elements.
• Furniture and Decoration: Finishing of metal tubes used in the manufacturing of furniture, railings, and other architectural elements.
• Medical Equipment: Polishing of tubular components that require smooth, high-hygiene surfaces.
• Food and Pharmaceutical Industry: Finishing of pipes and components that need to meet strict cleanliness and surface finish standards.
The MP01-1 is distinguished by a series of features that position it as a leading tube polishing machine in its category, offering tangible benefits to its users:
Efficiency
With a processing speed of 6 meters per minute, the MP01-1 maximizes productivity, allowing for a high volume of work in less time. Its optimized design reduces cycle times and minimizes manual intervention, which translates into greater profitability for metal polishing operations.
Stability
Built with high-quality components and a robust design, this semi-automatic polisher guarantees stable operation and minimal vibrations. This not only extends the life of the equipment but also contributes to high-precision polishing and a uniform finish on each piece.
Automation
Although it is semi-automatic, the MP01-1 incorporates functions that simplify the polishing process. The feeding and advancement of the tubes are consistent, reducing operator fatigue and ensuring repeatability in the surface finish of each tube or resistor.
Safety
The machine is equipped with essential safety features to protect the operator during the industrial polishing process. This includes protective covers and emergency stop systems, complying with workplace safety regulations and minimizing risks.
Maintenance
Designed for easy maintenance, the MP01-1 facilitates access to key components. The manufacturer's note indicates that the main motor heads and speed reducers have already been lubricated before leaving the factory, and it is recommended to add yellow grease to each main motor head per shift. This underscores the ease of preventive maintenance and the durability of the equipment.
The MP01-1 Semi-automatic Polishing Machine is available in several models, each designed to meet different needs for tube polishing and electrical resistor polishing. The key technical specifications are detailed below:
|
Feature |
Model 80 |
Model 120 |
Model 150 |
|
Polishing wheel diameter |
250 mm |
250 mm |
250 mm |
|
Guide wheel diameter |
230 mm |
230 mm |
250 mm |
|
Processing diameter |
1.5 - 100 mm |
3 - 150 mm |
Adjustable |
|
Maximum processing length |
6000 mm |
6000 mm |
6000 mm |
|
Processing precision |
0.02 mm |
0.03 mm |
0.05 mm |
|
Main motor power |
3.0 kW |
4.0 kW |
4.0 kW |
|
Guide motor power |
0.4 kW |
0.75 kW |
0.75 kW |
|
Processing speed |
6 meters/minute |
6 meters/minute |
6 meters/minute |
|
External dimensions (cm) |
85 x 80 x 90 |
85 x 80 x 90 |
85 x 80 x 110 |
Note: External dimensions can be adjusted according to customer needs.
Understanding that each industrial polishing application may have unique requirements, the MP01-1 tube polisher offers customization options to perfectly adapt to the specific needs of your operation. This includes:
• Dimension Adjustment: Possibility of adjusting the external dimensions of the machine to integrate into specific workspaces.
• Processing Diameter Configurations: The 150 model offers an adjustable processing diameter, providing maximum flexibility for a wide range of tube and resistor sizes.
• Polishing Wheel Materials: Options for different materials and grits for the polishing wheels, allowing for optimization of the finish for various metals and surface roughness requirements.
• Feeding and Unloading Systems: Integration with automated feeding and unloading systems for higher volume operations and less manual intervention.
• Advanced Control Systems: Upgrades to the control system for greater automation, monitoring, and diagnostics.
The MP01-1 is more than just a tube polishing machine; it is an investment in efficiency, quality, and versatility for any metal finishing process.
The MP01-1 Semi-automatic Polishing Machine is a versatile and powerful tool designed to meet various industrial polishing needs. One of the most common questions that arises is about its ability to work with different materials and types of parts. Below, we explore in detail the capabilities of this tube polisher.
Versatility in Metallic Materials
The MP01-1 is designed to polish a wide range of metallic materials, making it an ideal solution for multiple industries. Among the materials it can process are:
• Stainless Steel: Known for its corrosion resistance and aesthetic finish, stainless steel is a common material in many applications. The MP01-1 achieves a high-quality polish on stainless steel tubes and resistors, improving their appearance and durability.
• Copper: This metal, valued for its conductivity and malleability, also benefits greatly from polishing. The MP01-1 machine can polish copper components for electrical, decorative, or industrial applications, ensuring a smooth and shiny surface.
• Aluminum: Lightweight and corrosion-resistant, aluminum is another material that the MP01-1 handles with ease. Polishing aluminum parts improves their surface finish and prepares them for subsequent processes such as anodizing or painting.
• Other Metal Alloys: In addition to those mentioned, the machine is suitable for working with various metal alloys, as long as they are compatible with the mechanical polishing process.
