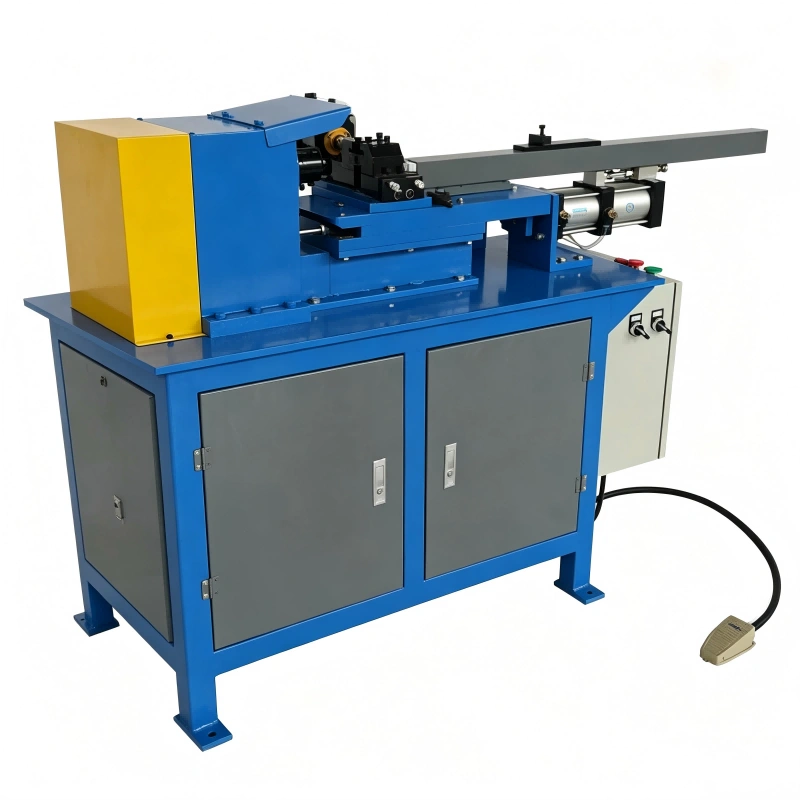

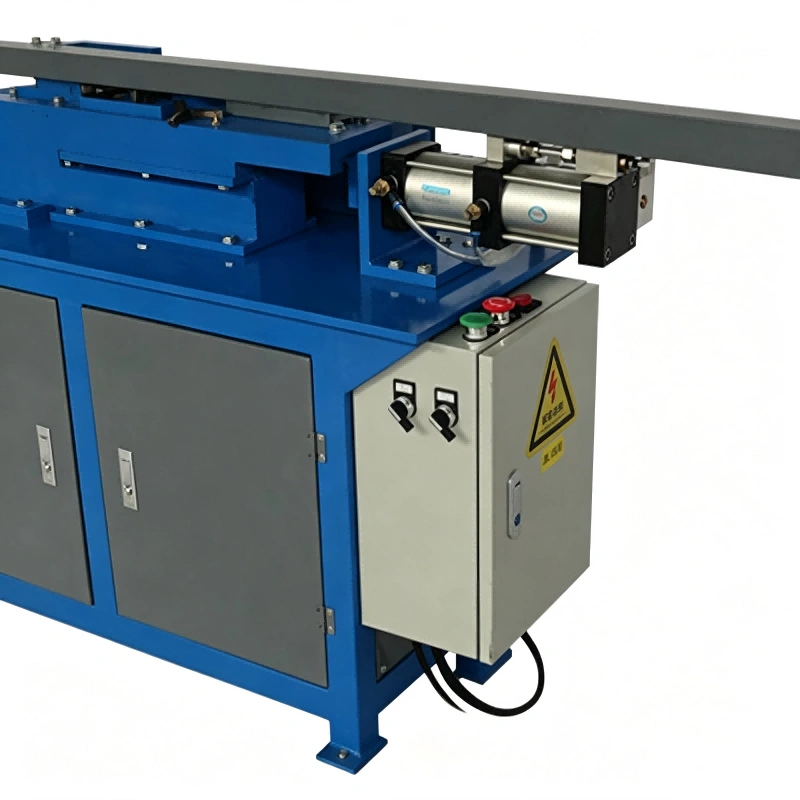

The MT01 series of semi-automatic trimming machines represents an efficient and versatile solution for tube processing, specifically designed for terminal pin trimming. This equipment is fundamental in industries that require precise tube preparation, such as tubular heater manufacturing and electric heater production.
The MT01 series of semi-automatic trimming machines offers an efficient and versatile solution for tube processing, specifically engineered for terminal pin trimming. This equipment is crucial in industries demanding precise tube preparation, including tubular heater manufacturing and other electric heater production. Its design accommodates medium and small diameter tubes, providing remarkable flexibility to adapt to various materials, lengths, and diameter specifications, making it an indispensable tool for specialized production.

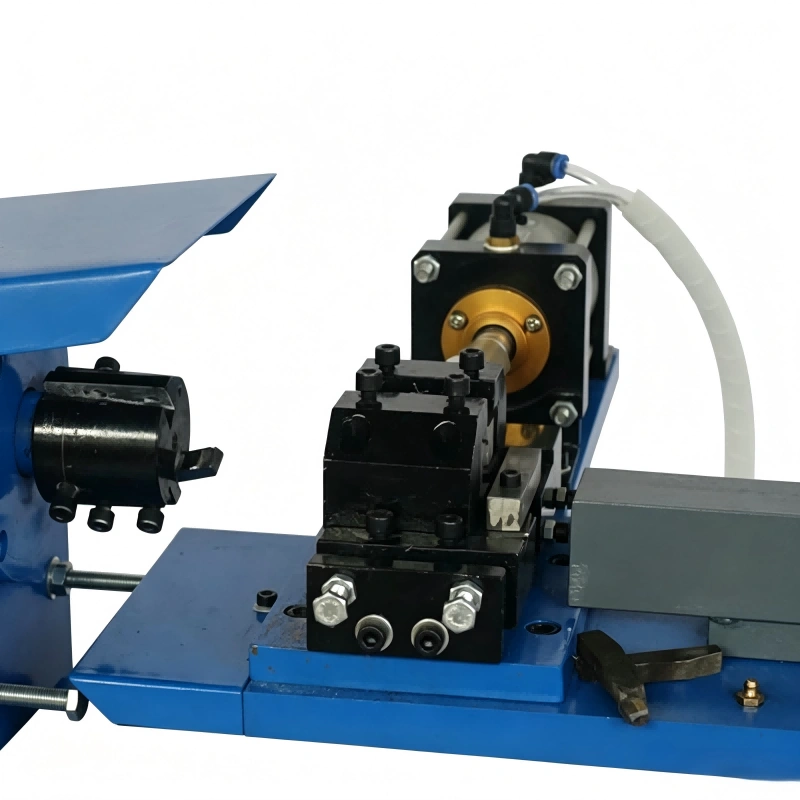

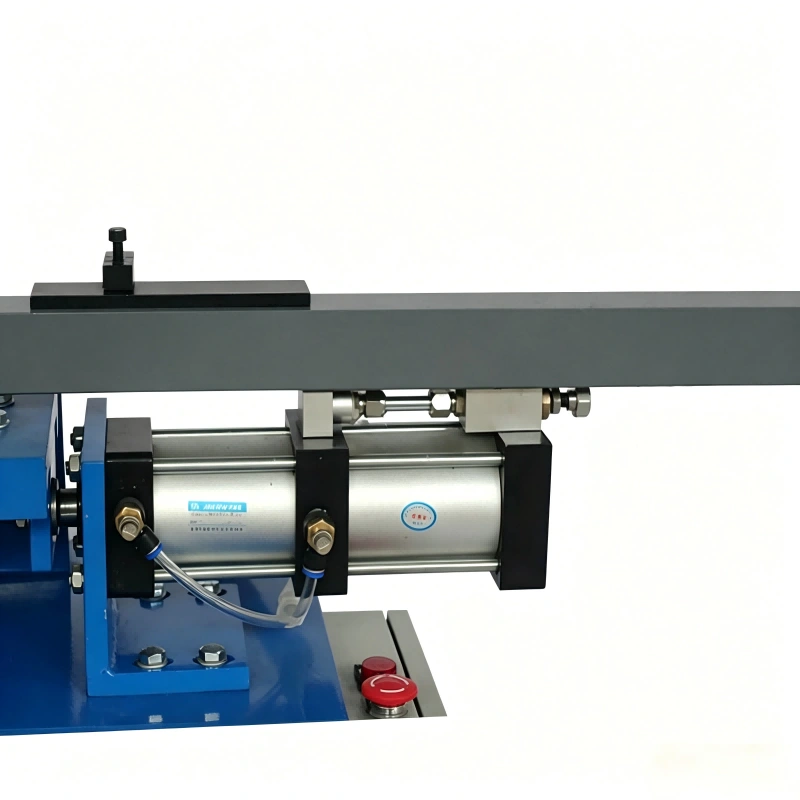

The operational process of the MT01 trimming machine begins with the manual loading of the tube. Once positioned, the machine firmly clamps the element and proceeds to trim the end of the tube, exposing the predetermined length of the terminal pin. This trimming is performed on one end of the element at a time, ensuring precision in each operation. After the trimming process, the elements are manually removed from the machine. Despite its semi-automatic operation, the MT01 optimizes the critical tube preparation stage, ensuring consistency and quality in the terminal pin finishing.
• Application Versatility: Designed for processing medium and small tubes, adaptable to various diameters, materials, and lengths, which expands its range of use in different production lines.
• Trimming Precision: Ability to expose a predetermined length of the terminal pin with high accuracy, crucial for the final product quality.
• Semi-automatic Operation: Combines the efficiency of machinery with the flexibility of manual loading and unloading, allowing detailed process control.
• Easy Adaptation: Its design facilitates quick configuration changes for different tube specifications, minimizing downtime.
• Robust Construction: Manufactured to withstand the demands of an industrial environment, ensuring long-term durability and reliability.
|
Technical Parameter |
MT01-1 |
MT01-2 |
MT01-3 |
|
Electrical Connection |
Three-phase 380V, 50Hz, 0.8KW |
Three-phase 380V, 50Hz, 1.6KW |
Three-phase 380V, 50Hz, 1.2KW |
|
Input Air |
5 ~ 7 kg/cm² |
5 ~ 7 kg/cm² |
5 ~ 7 kg/cm² |
|
Tube Outer Diameter (O.D.) |
Φ6 ~ Φ12 mm |
Φ5.2 ~ Φ15 mm |
(Not specified) |
|
Tube Length (mm) |
> 100 mm |
100 ~ 2000 mm |
(Not specified) |
|
Max. Trimming Length (mm) |
38 mm |
38 mm |
(Not specified) |
|
Performance (8h) |
4500 pieces |
5500 pieces (less than 500mmL) |
4000 ~ 5000 pieces |
|
Dimensions (LWH) |
800 * 550 * 1000 mm |
2100 * 850 * 1350 mm |
800 * 800 * 660 mm |
|
Weight (kgs) |
130 kgs |
450 kgs |
600 kgs |
To select the ideal MT01 model for your heater production, consider these key factors:
1 Tube Diameter and Length Range:
◦ MT01-1: For tubes from Φ6-Φ12 mm and >100 mm in length.
◦ MT01-2: More versatile, for Φ5.2-Φ15 mm and 100-2000 mm in length.
◦ MT01-3: Data not specified, consult supplier for specific ranges.
2 Production Capacity (8h Performance):
◦ MT01-1: 4500 pieces (medium volume).
◦ MT01-2: 5500 pieces (high volume, for tubes <500mmL).
◦ MT01-3: 4000-5000 pieces (comparable to MT01-1).
3 Available Space and Dimensions:
◦ MT01-1: The most compact (800x550x1000 mm).
◦ MT01-2: The largest (2100x850x1350 mm), requires more space.
◦ MT01-3: Intermediate size (800x800x660 mm).
