This heater welding machine is designed to meet the demands of high-quality electric heating component manufacturing. Its primary applications include:

•       Cartridge Electric Heater Production: Essential for sealing the end of heaters used in molds, heating plates, packaging equipment, instrumentation, and industrial machinery.

•       Heating and Appliance Industry: Ideal for manufacturers requiring reliable and durable welded joints in heating elements for various products.

•       Sensor and Thermocouple Manufacturing: Where precise and high-integrity welding is required for small tubular components.

•       Precision Tubular Component Assembly: Any application involving the welding of end caps onto small-diameter metal tubes, ensuring a hermetic seal and high mechanical strength.

Key Features:

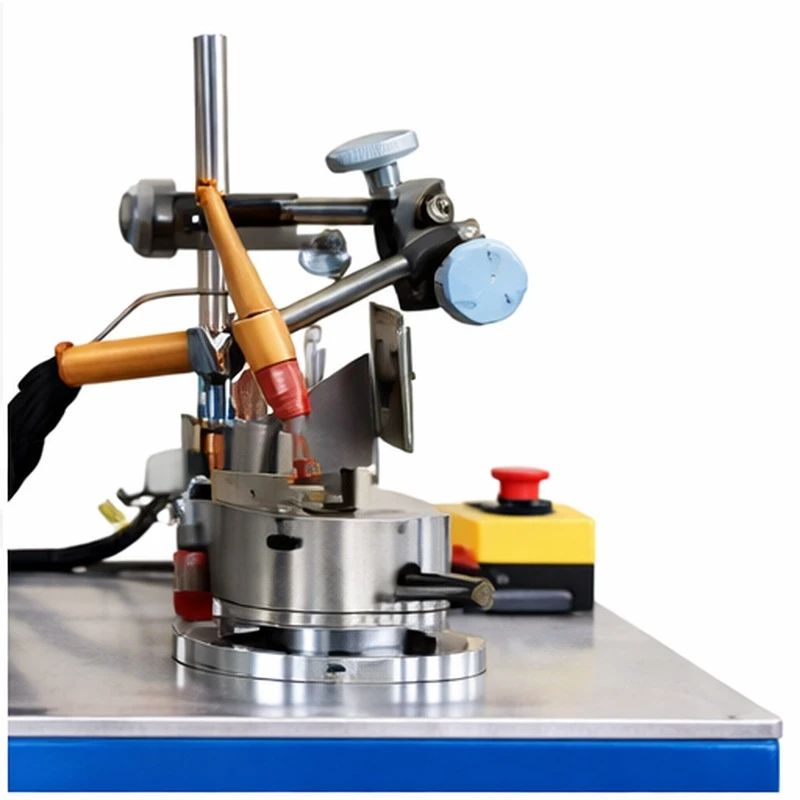

•       Argon Arc Welding: Provides excellent welding quality, with clean, strong, and aesthetically superior joints, minimizing oxidation and deformation.

•       Auto-Rotation Welding: The automatic tube rotation system during welding ensures uniform coverage and consistent penetration around the entire circumference, resulting in a homogeneous weld.

•       Centralized Tube Diameter Adjustment: Ability to adjust the welding center according to the tube diameter, allowing great versatility and precision for different heater sizes.

•       Robust and Efficient Design: Construction designed for an industrial environment, ensuring durability and consistent performance.

Competitive Advantages:

•       High Welding Quality: The combination of argon arc welding and auto-rotation ensures superior strength joints and a professional finish, crucial for the lifespan of the heaters.

•       Precision and Consistency: The manipulator positioning system with electromagnetic vibration disc guarantees perfect alignment and repeatable results, reducing waste and improving product uniformity.

•       Operational Efficiency: Precise and fast welding, along with optimized manual loading and unloading, contributes to high productivity in the manufacturing line.

•       Versatility: Adaptable to a range of tube diameters, making it a flexible solution for different cartridge heater specifications.

•       Cost Optimization: By improving quality and efficiency, the machine helps reduce rework costs and increases production per unit of time.

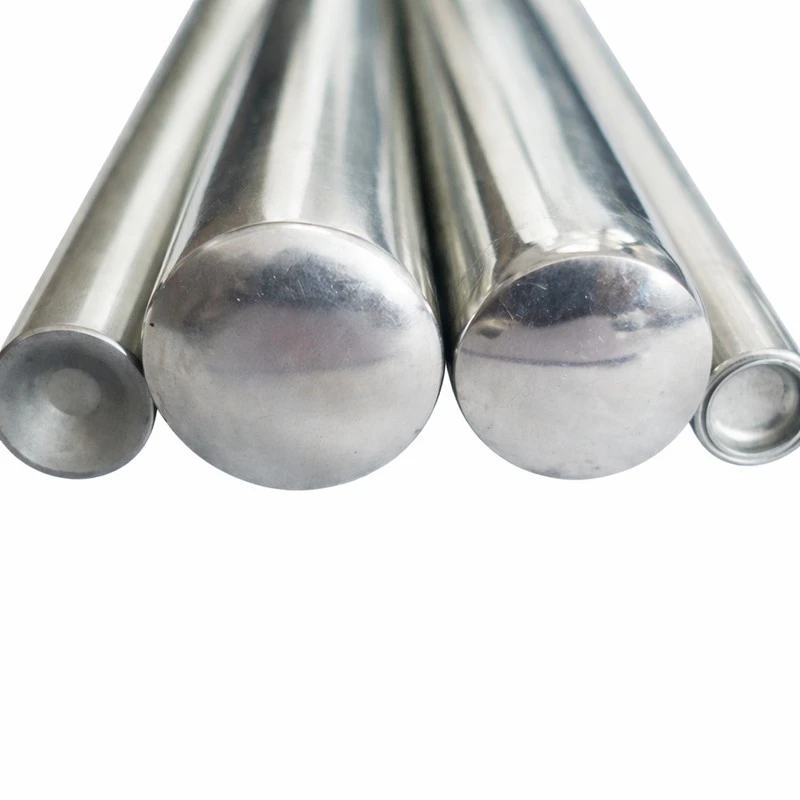

The end cap welding process for cartridge heaters begins with the manual loading of the workpiece into the welding station. Once positioned, the machine activates its electromagnetic vibration disc, which stabilizes the component and the welding strip. Simultaneously, a high-precision manipulator, equipped with a vacuum system, accurately picks up the welding strip and places it precisely in the welding station, aligning it with the tube's positioning groove. This step is critical to ensure welding accuracy. Next, the capacitive energy spot welding process begins, providing a controlled energy discharge to create an initial joint. Subsequently, the machine performs argon arc welding with auto-rotation, where the tube automatically rotates while the argon arc melts and joins the end cap to the heater body. This method ensures a complete and high-quality circumferential weld, essential for the integrity of the final product. The cycle concludes with the manual unloading of the welded cartridge heater, ready for the next step in the production line.
