Thermal resistance capacity is the most critical factor when selecting refractory ceramic insulators and tiles for industrial applications. Not all ceramic materials are equal; their temperature limit directly depends on their chemical composition and purity.

For ceramic insulators for band heaters, the most common materials are steatite (talc-based) and alumina. Steatite is ideal for standard applications, continuously withstanding temperatures up to 1100°C. However, for more demanding processes, 95% or 99% alumina is the preferred choice, as it can safely operate in ranges from 1400°C to 1500°C.

It is important to note that the maximum operating temperature depends not only on the ceramic material but also on the environment. Factors such as thermal shock, furnace atmosphere (oxidizing or reducing), and direct contact with chemical elements can affect the integrity of the ceramic tiles for heaters. Therefore, choosing a material with an adequate thermal safety margin is essential to prevent cracks or premature failures in the heating system.

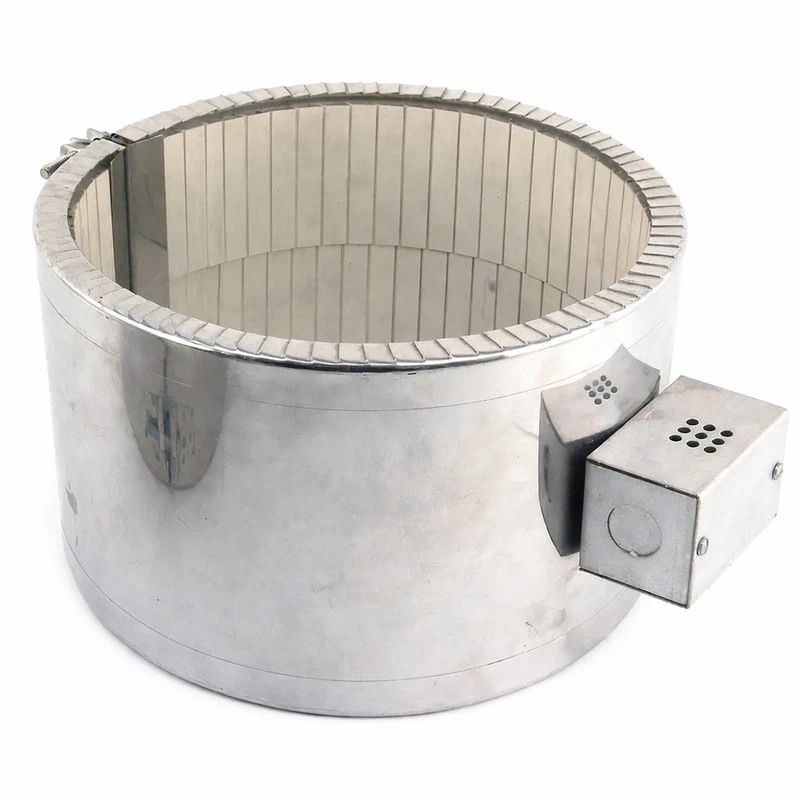

Selecting the appropriate interlocking ceramic insulators for band heaters is fundamental to ensuring the energy efficiency and durability of your machinery. The correct choice depends on three main pillars: equipment geometry, required power, and working environment.

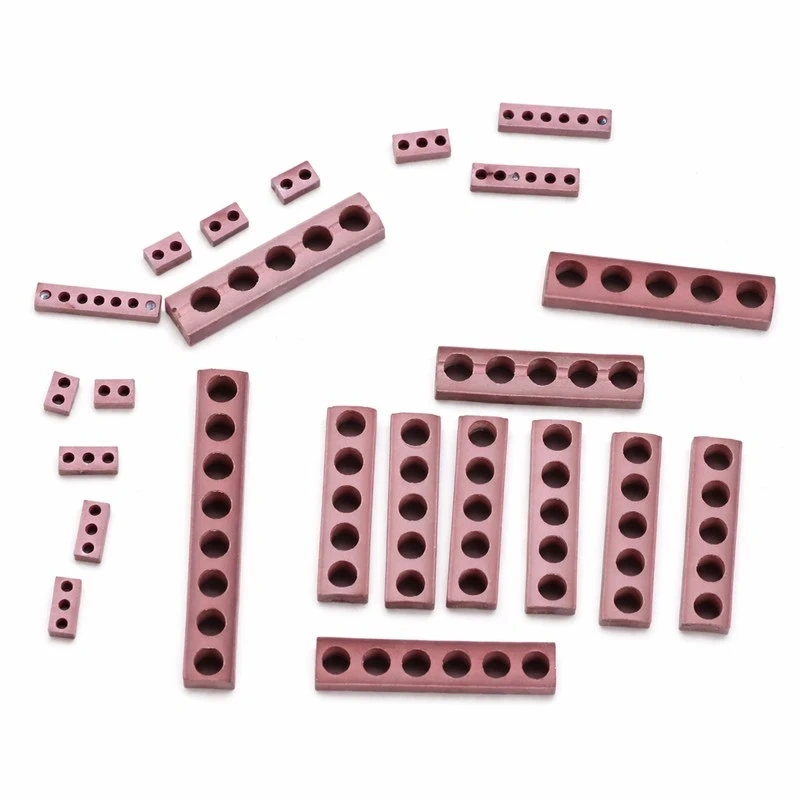

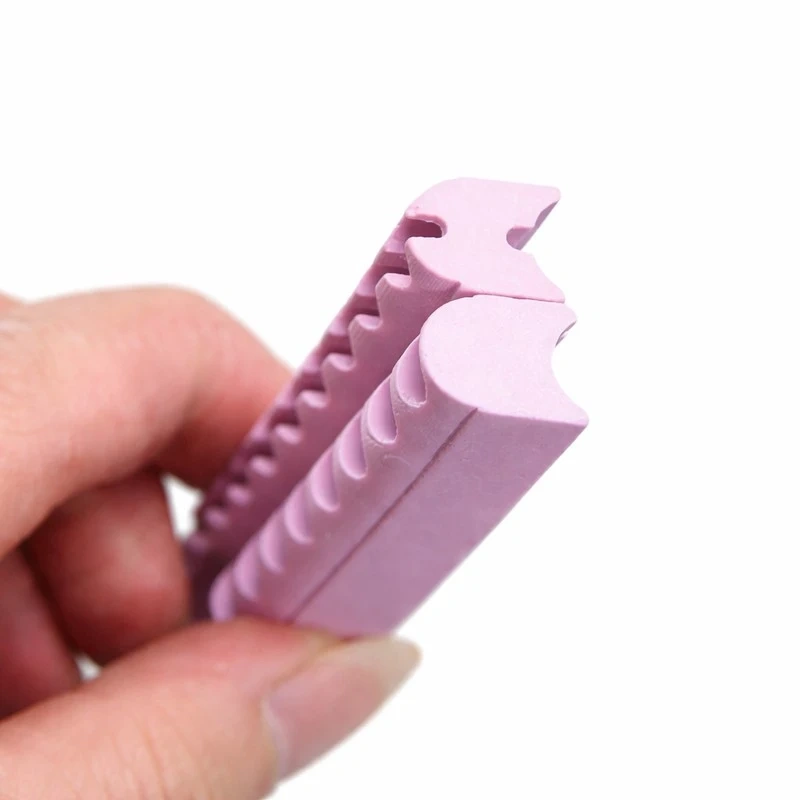

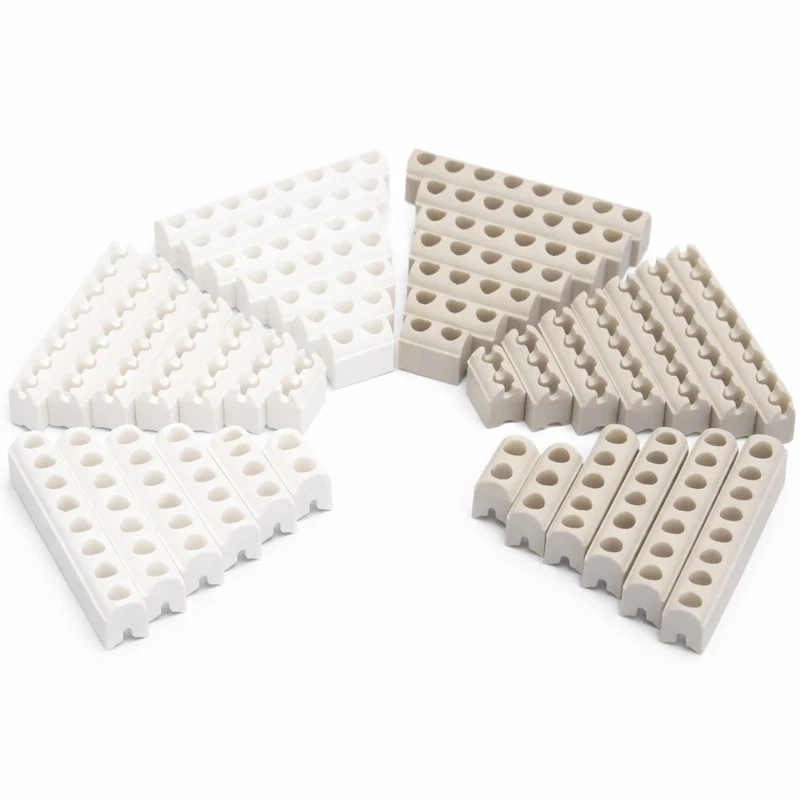

First, consider flexibility. Interlocking ceramic beads are the best option for cylindrical surfaces, such as plastic injection barrels, due to their articulated design that allows for a perfect fit. Second, analyze the hole configuration. As shown in our specifications table, the number of holes (from 1 to 10) and their diameter (from 4 to 6 mm) must match the heating wire gauge to ensure optimal insulation and prevent hot spots.

Finally, the material is decisive. If your application requires rapid heat transfer and high mechanical strength, alumina is superior. If you are looking for an economical solution for moderate temperatures, talc-based (steatite) components offer an excellent balance between cost and performance. Remember that ceramic insulators for clamp and strap heaters must be able to withstand the mechanical pressure of assembly without fracturing.

One of the most frequent questions among heater manufacturers is the chemical and physical compatibility between refractory ceramic insulators and high-resistance heating wires like Kanthal (iron-chromium-aluminum) and Nichrome (nickel-chromium). The short answer is yes, but with important technical nuances.

Our ceramic tiles and interlocking ceramic components are designed to be chemically inert, meaning they do not react negatively with Kanthal or Nichrome alloys at high temperatures. This is vital to prevent wire corrosion and ensure efficient heat transfer. The hole structure in the ceramic insulators for band heaters provides the necessary physical support to keep the wire in position, preventing coils from touching and causing a short circuit.

However, the key to compatibility lies in the coefficient of thermal expansion. High-quality ceramics, such as those we supply, have controlled thermal expansion that synchronizes well with the expansion of the heating metal. When using low-quality ceramic insulators for clamp and strap heaters, there is a risk of the ceramic breaking or the wire stretching excessively due to poor management of the internal space. Therefore, we always recommend verifying that the hole diameter is slightly larger than the wire to allow for free and safe expansion.
