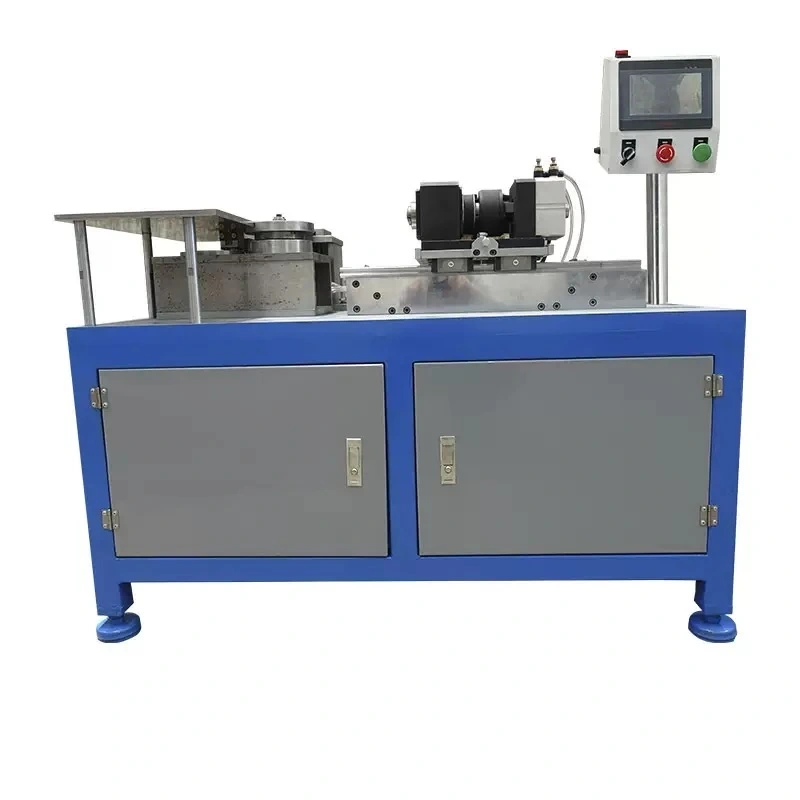

The Automatic Tube Bending Machine QUWM (Model HT-B6) is a new state-of-the-art engineering solution, named QUWM due to its exceptional capability for the precision bending of metal tubes into specific shapes such as Q, U, M, and W. This Q, U, M, W tube bender is ideal for producing complex configurations, whether simple or multiple bends. Its advanced technology integrates servo motor control for managing different structures and a hydraulic or geared motor transmission, guaranteeing smooth and efficient operation. Equipped with a PLC Control System and a touch screen interface, the QUWM (HT-B6) offers intuitive and automated operation, from manual feeding to the automatic completion of the entire bending process. It is the perfect tube bending machine for industries demanding high precision and repeatability in tube forming, especially in the manufacturing of tubular electric heaters with specific geometries.
Experience maximum efficiency and adaptability with our Automatic Tube Bending Machine QUWM (Model HT-B6), a next-generation CNC tube bender specially designed for the manufacturing of heating elements. This tubular heater bender stands out for its ability to perform spiral, convolution (serpentine), circular, and semicircular bends with unmatched precision, in addition to the shapes that give it its name. Its robust construction and 2 KW motor power ensure consistent and reliable performance. The QUWM (HT-B6) is a precision bending machine for heating elements that optimizes production, reduces cycle times, and minimizes material waste, establishing itself as an essential tool for any manufacturer seeking excellence in tube forming for the heating industry.
The Automatic Tube Bending Machine HT-B6 is an indispensable tool across various industries due to its ability to perform complex and precise bends. Its key applications include:

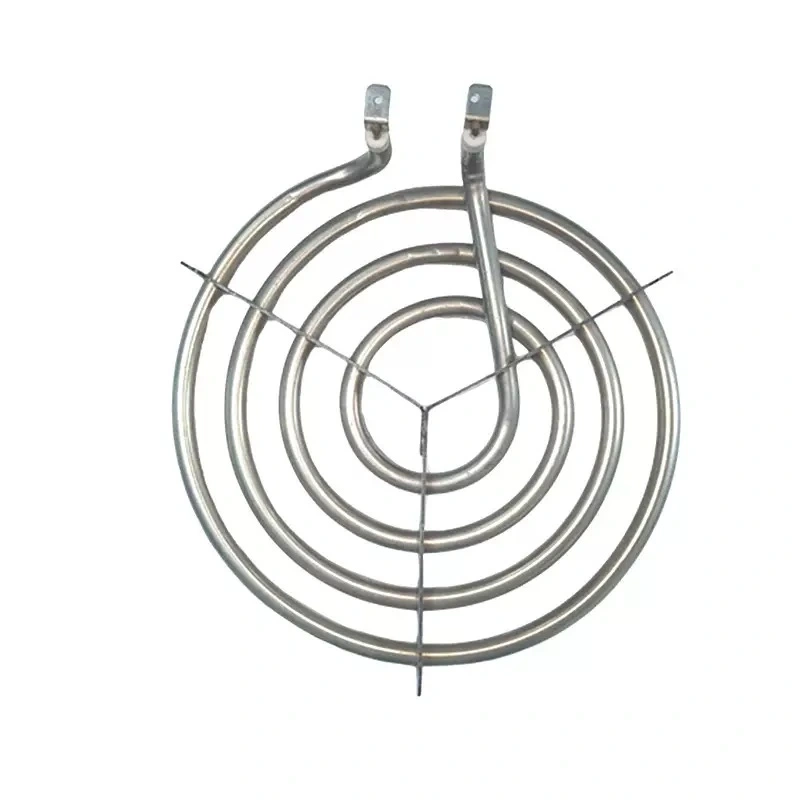

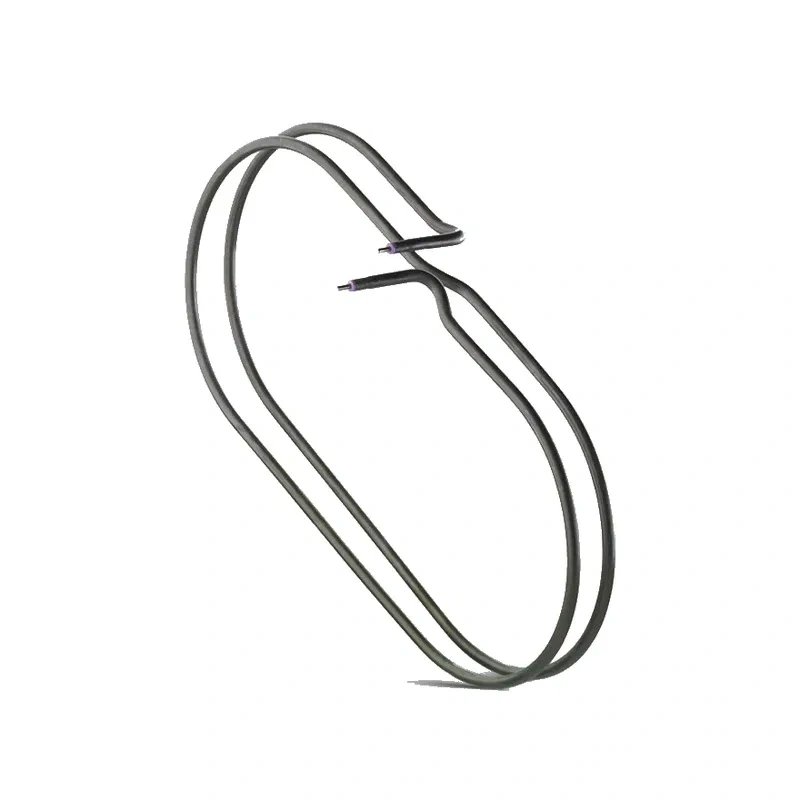

Manufacturing of Tubular Electric Heaters: It is fundamental for bending tubular electric heaters, allowing the creation of Q, U, M, W shapes, spirals, and serpentines, which are essential for the efficiency of the heating elements.
Heating and Refrigeration Industry: Used for the production of serpentines, heat exchangers, and other tubular components that require specific bends.
Automotive: For forming fuel lines, exhaust systems, and other tubes within vehicles.
Furniture and Decoration: Creation of tubular structures with aesthetic and functional designs.
Construction and Architecture: Bending tubes for handrails, railings, and structural elements.
Thermocouple and Sensor Manufacturing: Where bending tubes for thermocouples requires extreme precision to ensure sensor functionality.
The Automatic Tube Bending Machine HT-B6 offers a series of advanced features and competitive advantages that position it as a leader in its segment:

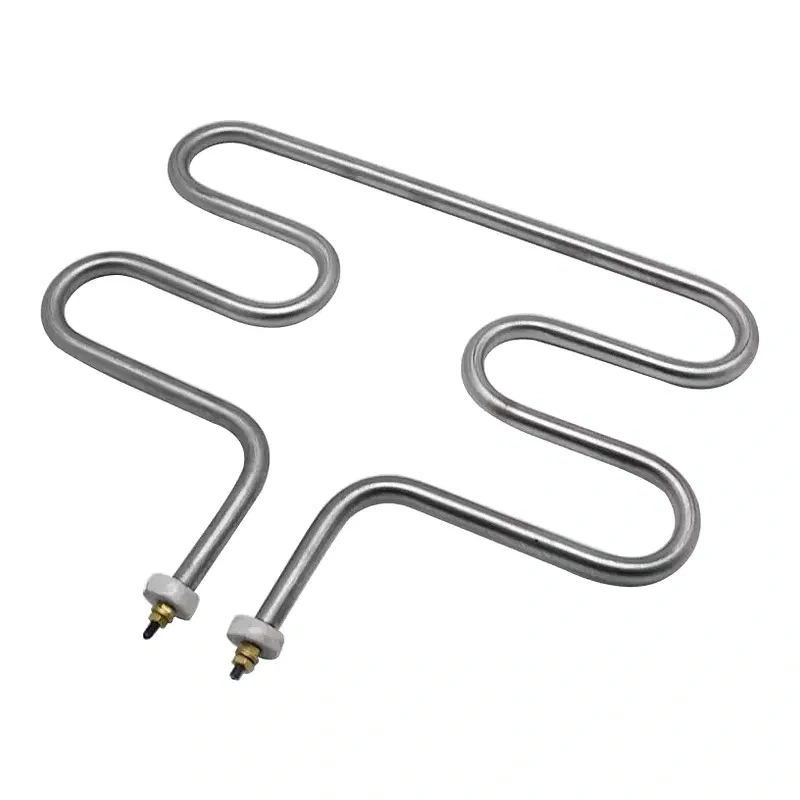

Bending Versatility: Capable of performing spiral, convolution (serpentine), circular, and semicircular bends, as well as Q, U, M, W shapes, making it a highly adaptable Q, U, M, W tube bending machine.
Wide Admissible Tube Diameter: Supports tubes with an admissible tube diameter of 5 mm to 25 mm, covering a vast range of production needs.
Advanced Control: Equipped with a PLC Control System and touch screen operation, facilitating process programming and monitoring, guaranteeing high precision and repeatability.
Complete Automation: From automatic feeding to bend completion, it minimizes manual intervention, reduces errors, and increases productivity.
Power and Efficiency: With a motor power of 2 KW, it ensures robust performance and efficient bending even on resistant materials.
Voltage Flexibility: Offers three-phase 380V, three-phase 220V, or single-phase 220V operating voltage, with the possibility of custom configuration, allowing for easy integration into different electrical environments.
Robust Construction: Its net weight of 300 KG and dimensions of 1600 x 1200 x 1000 mm guarantee stability and durability during continuous operations.
|
Technical Characteristic |
Value |
|---|---|
|
Model |
QUWM (HT-B6) |
|
Bending Functions |
Spiral, Convolution (Serpentine), Circular, Semicircular, Q, U, M, W |
|
Admissible Tube Diameter |
5 mm – 25 mm |
|
Control System |
PLC (Programmable Logic Controller) |
|
Motor Power |
2 KW |
|
Operating Voltage |
Three-phase 380V / Three-phase 220V / Single-phase 220V (configurable) |
|
Dimensions (L x W x H) |
1600 x 1200 x 1000 mm |
|
Net Weight |
300 KG |
|
Operation Mode |
Manual (loading), Automatic (bending) |
We understand that every manufacturing process has unique requirements. Therefore, the Automatic Tube Bending Machine HT-B6 not only offers exceptional standard performance but also provides customization options to perfectly suit your specific needs. Flexibility in operating voltage (Three-phase 380V, Three-phase 220V, or Single-phase 220V) is just the beginning. For those seeking a tube bender that integrates seamlessly into their existing infrastructure, we offer custom electrical configurations. Furthermore, to further optimize the production of tubular electric heaters and other components, we can explore adaptations in tooling and bending tools for very specific tube diameters or shapes, ensuring the QUWM (HT-B6) is the most efficient CNC tube bender for your application. Consult with our team of experts to design a tailored solution that maximizes your productivity and the return on your investment in this high-performance tubular heater bender. Our Tube bending machine for heating elements is ready to be configured according to your demands.
The QUWM (HT-B6) Tube Bending Machine is designed to offer exceptional flexibility in bending tubular electric heaters, allowing for minimum bending radii that are crucial for the efficiency and compact design of heating elements. The achievable bending radii depend directly on the tube diameter and the sheath material (Incoloy, Stainless Steel, Copper). Generally, our precision benders can work with bending radii as small as 1.5 to 2 times the outer diameter of the tube (1.5D to 2D). This means that for a 5 mm diameter tube, radii of approximately 7.5 mm to 10 mm can be achieved.
The QUWM (HT-B6)'s capability to handle tight bends in heaters is a key factor in manufacturing high-density and complex-shaped (Q, U, M, W, spiral, serpentine) heaters, optimizing space and heat transfer. By using a state-of-the-art tube bender for heaters, you ensure that bending radii are consistent and precise, avoiding deformations that could affect the performance of the heating element. To determine the specific bending radii for your application, we recommend consulting the detailed technical specifications of the machine and conducting tests with your materials.
