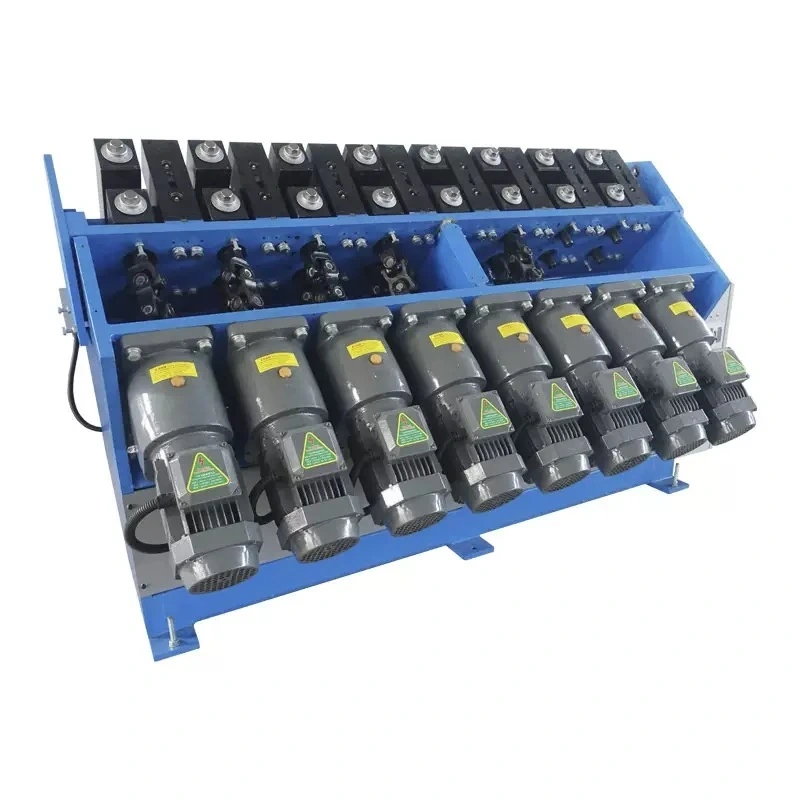

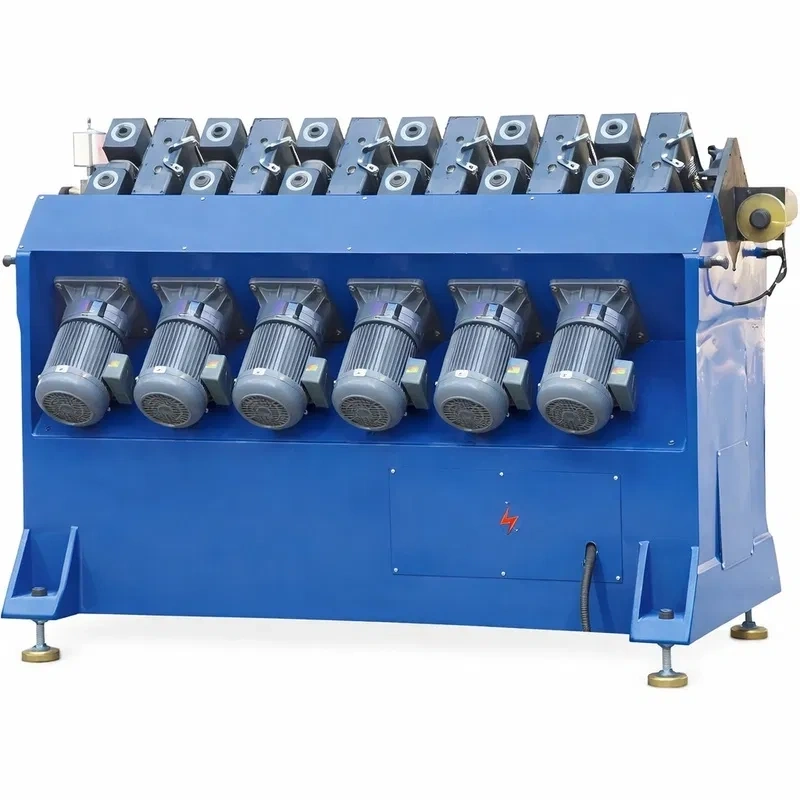

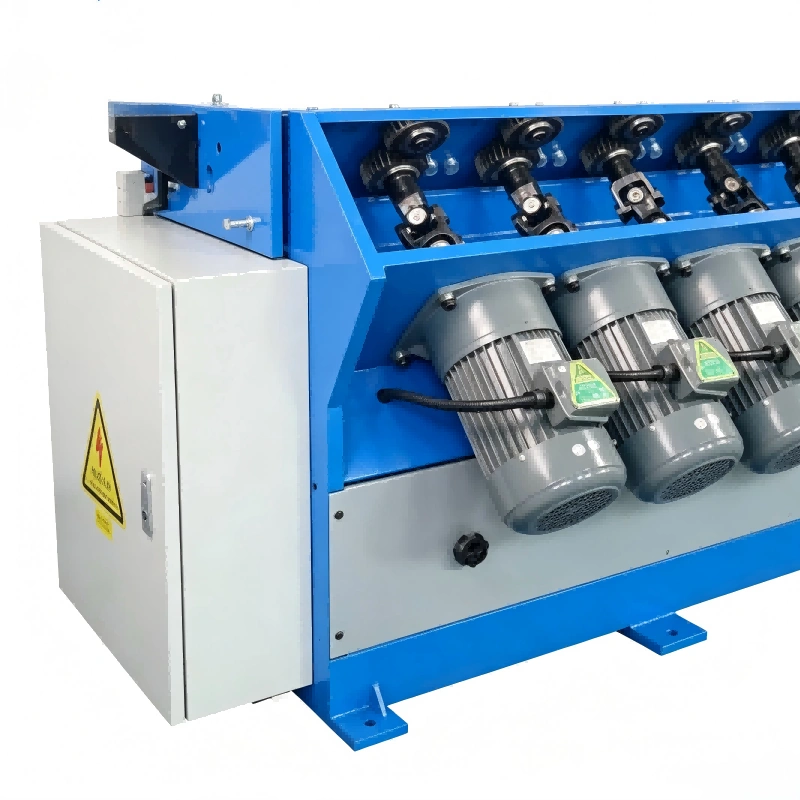

The HTR-12 roller rolling machine is state-of-the-art equipment designed for the manufacturing of high-quality heaters. Its main function is to reduce the diameter of heating elements after MgO powder filling, significantly increasing the density of the magnesium oxide (MgO). This high-precision tube reducer guarantees superior thermal performance and a longer lifespan for a wide range of industrial electric heaters.
The HTR-12 is a high-precision roller rolling machine primarily used for the MgO compaction process in heating elements. Its advanced design allows for the gradual and controlled reduction of tube diameters, resulting in a critical increase in MgO powder density. This tube reducer is essential for improving the thermal conductivity and electrical insulation of electric heaters, and is compatible with a variety of heater tubes, including those used in hot runner systems.
The HTR-12 roller rolling machine is state-of-the-art equipment designed for the manufacturing of high-quality heaters. Its main function is to reduce the diameter of heating elements after MgO powder filling, significantly increasing the density of the magnesium oxide (MgO). This high-precision tube reducer guarantees superior thermal performance and a longer lifespan for a wide range of industrial electric heaters.
The HTR-12 is a high-precision roller rolling machine primarily used for the MgO compaction process in heating elements. Its advanced design allows for the gradual and controlled reduction of tube diameters, resulting in a critical increase in MgO powder density. This tube reducer is essential for improving the thermal conductivity and electrical insulation of electric heaters, and is compatible with a variety of heater tubes, including those used in hot runner systems. The HTR-12 is a heater rolling machine characterized by its full gear transmission, ensuring quiet operation and high torque, solving compaction challenges for both large, long tubes and small, short ones.
The HTR-12 tube rolling machine is an MgO compactor that operates via a system of rollers that progressively reduce the tube diameter. Designed for high precision, this machine is crucial in the stage following powder filling, where the goal is to increase the magnesium oxide density within the heating element. The HTR-12 incorporates its own straightening device that ensures the heater coil stretches uniformly inside the element during the rolling process. To adapt to different tube diameters, it is necessary to change the rollers. This roller reduction machine is a technological evolution, equipped with a complete gear reduction system composed of multiple high-precision modular gears. This advanced configuration provides silent transmission and considerable torque, allowing it to effectively handle the compaction of a wide range of tubes, from large and long to small and short. It is, therefore, a versatile tube shrinking machine suitable for any heater tube manufacturer.
The HTR-12 roller rolling machine stands out for its robust and efficient structure, designed to guarantee precision and durability in the MgO compaction process:
Roller Structure: Generally, the machine is presented with 8, 12, 16, or 18 groups of rollers, which work sequentially to gradually reduce the tube diameter. This modular configuration allows for precise adaptation to production needs.

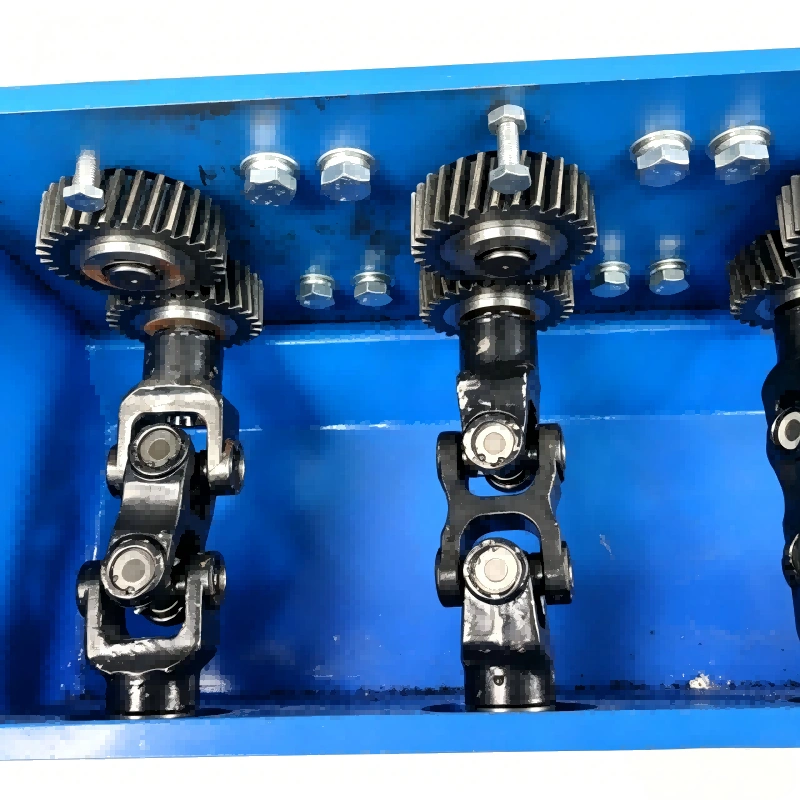

Transmission System: It incorporates a universal shaft drive structure, reinforced with a double cardan drive, ensuring efficient and stable power transmission to all rollers. This complete gear reduction system minimizes noise and maximizes torque.
Integrated Straightening Device: A key component that ensures the uniform stretching of the heater coil inside the element during rolling, preventing deformations and guaranteeing the quality of the heating element.

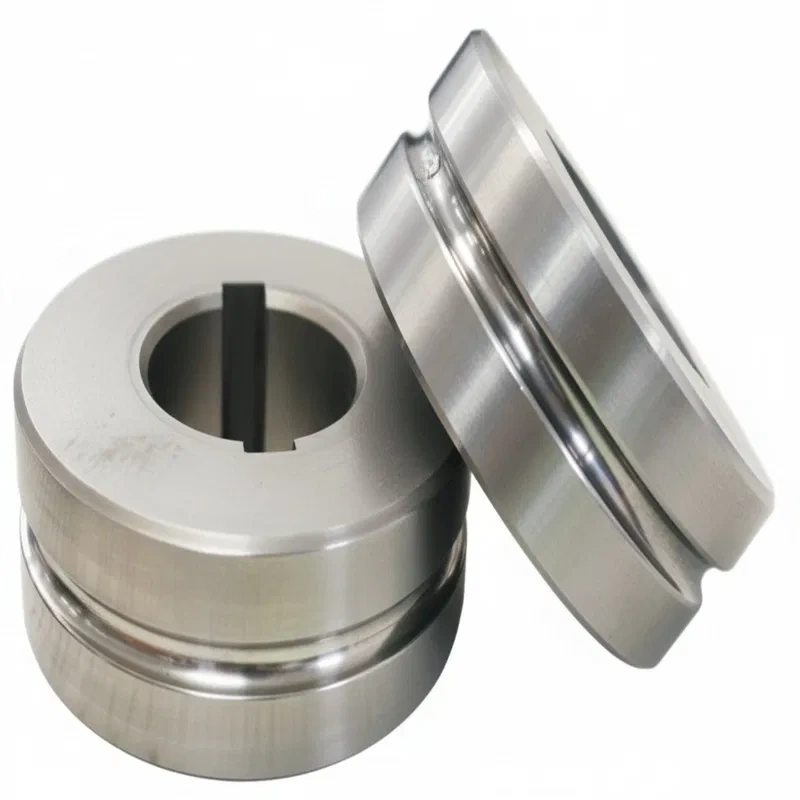

Die Material: The dies (rollers) are manufactured with high-strength materials such as tungsten alloy or die steel, guaranteeing a long service life and high precision in tube compaction.
Robust Chassis: With a weight of 2500 KG and a volume of 2000x1600x1300 mm, its solid construction minimizes vibrations and contributes to process stability, which is fundamental for the manufacturing of high-quality electric heaters.
The HTR-12 roller rolling machine is a versatile solution for the manufacturing of heating elements across various industries, thanks to its ability to process a wide range of electric heaters:
Tubular Heaters: Ideal for the production of standard tubular heaters, ensuring optimal MgO compaction.
Cartridge Heaters: Fundamental in the manufacture of high-density cartridge-type heaters, where diameter precision is critical.
Hot Runner Heaters: Perfect for shrinking hot runner heater tubes, both round and square, guaranteeing the density required for efficient performance.
Oval Electric Heaters: Capable of processing heaters with oval profiles, expanding the design possibilities for electric heaters.
Double-Layer Copper Tubes: Suitable for compacting tubes made of composite materials, such as double-layer copper tubes, demonstrating its versatility with different materials.
Diverse Tube Materials: Compatible with copper, iron, aluminum, stainless steel, and composite tubes, making it indispensable for any heater tube manufacturer.
The HTR-12 offers a series of features and advantages that position it as a superior roller reduction machine in the heater machinery market:
|
Feature |
Description |
Competitive Advantage |
|---|---|---|
|
High Precision |
Reduces diameter and increases MgO density with great accuracy. |
Guarantees high-quality electric heaters with optimal thermal and electrical performance, extending their lifespan. |
|
Efficiency and Stability |
Robust design with high efficiency and strong stability. |
Minimizes downtime and maximizes productivity in the manufacturing of heating elements. |
|
Integrated Straightening |
Dedicated straightening device. |
Ensures the heater coil stretches uniformly, preventing deformations and improving product consistency. |
|
Diameter Versatility |
Shrinking tube diameter from 3 mm to 20 mm. |
Allows processing a wide range of heater tubes, from the smallest to larger gauges, with a single tube reducer. |
|
Extended Shrinking Length |
Shrinking tube length from 100 mm to 6000 mm. |
Ideal for the production of large industrial electric heaters, offering flexibility in design and manufacturing. |
|
Silent Transmission & High Torque |
Complete gear reduction machine. |
Solves the problem of shrinking tubes of different sizes and lengths, offering smooth and powerful operation. |
|
Speed Adaptability |
Fixed shrinking speed or speed regulation. |
Allows adjustment of the process to the specific needs of each heating element, optimizing quality and efficiency. |
|
Compatible Tube Materials |
Copper, iron, aluminum, stainless steel, composites. |
Offers great flexibility for manufacturers working with diverse materials in heater production. |
Below are the key technical parameters of the HTR-12 heater rolling machine, fundamental for planning your production plant and integration with other heater manufacturing systems:
|
Parameter |
Specification |
|---|---|
|
Model |
HTR-12 (High-Precision Roller Rolling Machine) |
|
Drive Structure |
Reinforced universal shaft with double cardan |
|
Reduction Tube Diameter |
3 - 20 mm |
|
Reduction Tube Length |
100 - 6000 mm |
|
Reduction Speed |
Fixed speed / Speed regulation |
|
Die (Roller) Material |
Alloy, Steel |
|
Number of Sections (Roller Groups) |
8, 12, 16, 18 |
|
Voltage |
380V 3-phase / 220V 3-phase / 220V single-phase |
|
Power (KW) |
1.1 * Number of Sections (Total Power) |
|
Compatible Tubes |
Copper, iron, aluminum, stainless steel, composite tubes, etc. |
|
Volume (LWH) |
2000 * 1600 * 1300 mm |
|
Weight |
2500 KG |
The HTR-12 is not just a machine, but a strategic investment for excellence in the manufacturing of high-performance electric heaters.
The choice depends on the degree of reduction required and the precision needed for the final product. The higher the number of groups, the more gradual the process, which better protects the integrity of the internal coil and MgO insulation.
|
Feature |
8 Groups |
12 Groups |
16 Groups |
|---|---|---|---|
|
Primary Use |
Standard diameters and light reductions. |
Versatile use and high precision. |
Maximum reduction and minimum tolerances. |
|
Surface Quality |
Good |
Very High |
Excellent |
|
Coil Stretching |
Standard |
Uniform |
Maximum Uniformity |
|
Productivity |
Ideal for low/medium volume. |
High industrial efficiency. |
High-end and large-scale production. |
