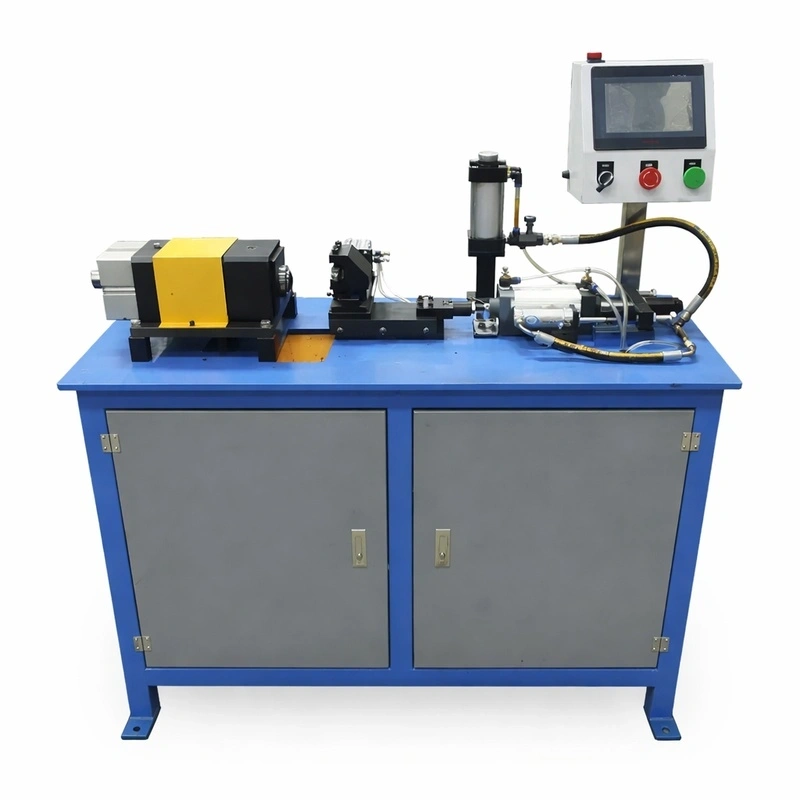

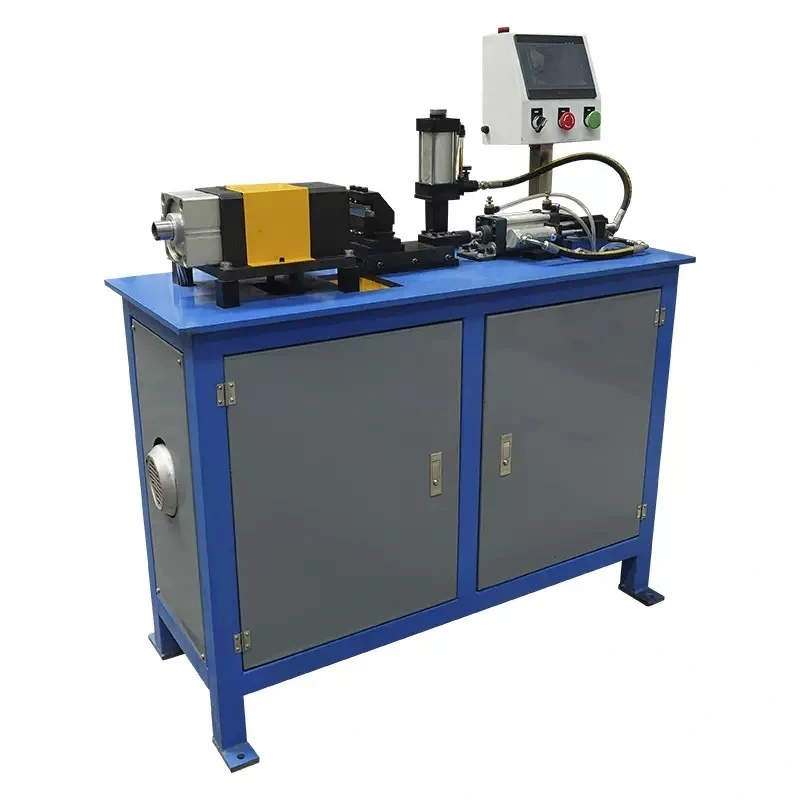

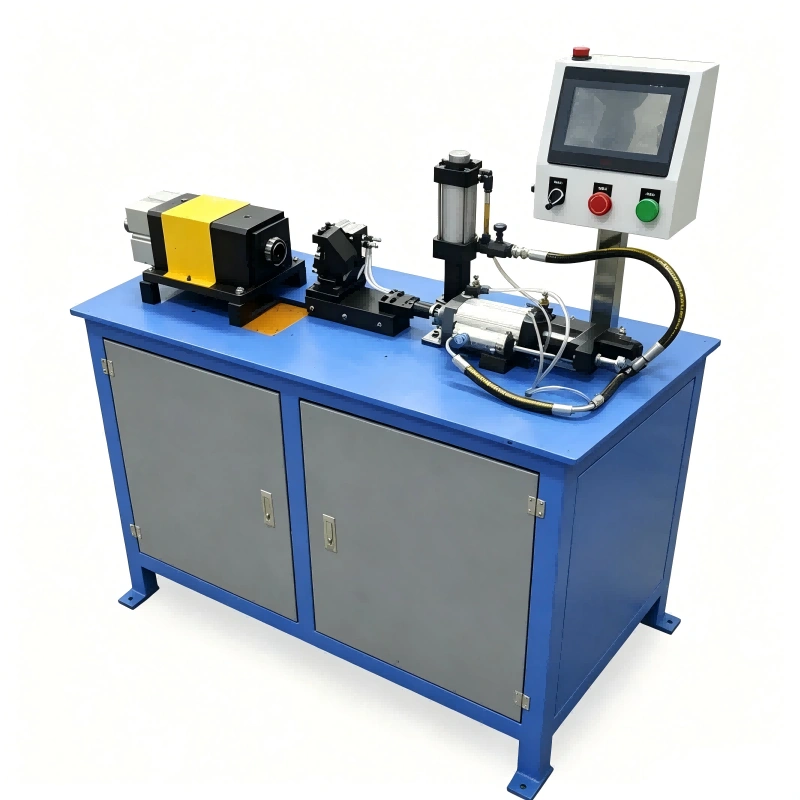

The cartridge heater turning machine MT-03 is a specialized equipment designed specifically for the cutting and finishing of cartridge heater heads, a distinctive characteristic of these heating elements. Its structure is based on a tool rotation system that, combined with a pneumatic clamping mechanism, guarantees stable performance and high precision in cutting. This design allows for an efficient and consistent cartridge heater head finishing, ensuring that each unit meets the required dimensional and finishing specifications. The MT-03 is a cartridge heater cutter that stands out for its capacity to process round parts with lengths ranging from 100 to 6000 mm and diameters between 6 and 30 mm, making it a versatile solution for diverse production needs in cartridge heater manufacturing machinery.
The cartridge heater turning machine MT-03 is a high-efficiency solution for automation in cartridge heater production. Its intuitive design and simple operation make it a valuable asset for any manufacturing line looking to optimize the finishing process of cartridge heaters. By automating the end cutting, the MT-03 not only improves productivity but also guarantees the uniformity and quality of the finish, crucial factors for the performance and durability of cartridge heaters. This precision cutting equipment for metal tubes minimizes manual intervention, reducing errors and cycle times. It is a lathe for cartridge heaters that offers stable performance, ease of operation and maintenance, and high production efficiency, translating into a significant return on investment for manufacturers.
The cartridge heater turning machine MT-03 distinguishes itself through a series of features and advantages that make it indispensable in cartridge heater manufacturing.
Specialized Design for Cartridge Heaters: Developed specifically for the unique structure of these heaters, guaranteeing optimal cutting and finishing. This specialization makes it ideal precision cutting equipment for metal tubes used in cartridge-type heaters.

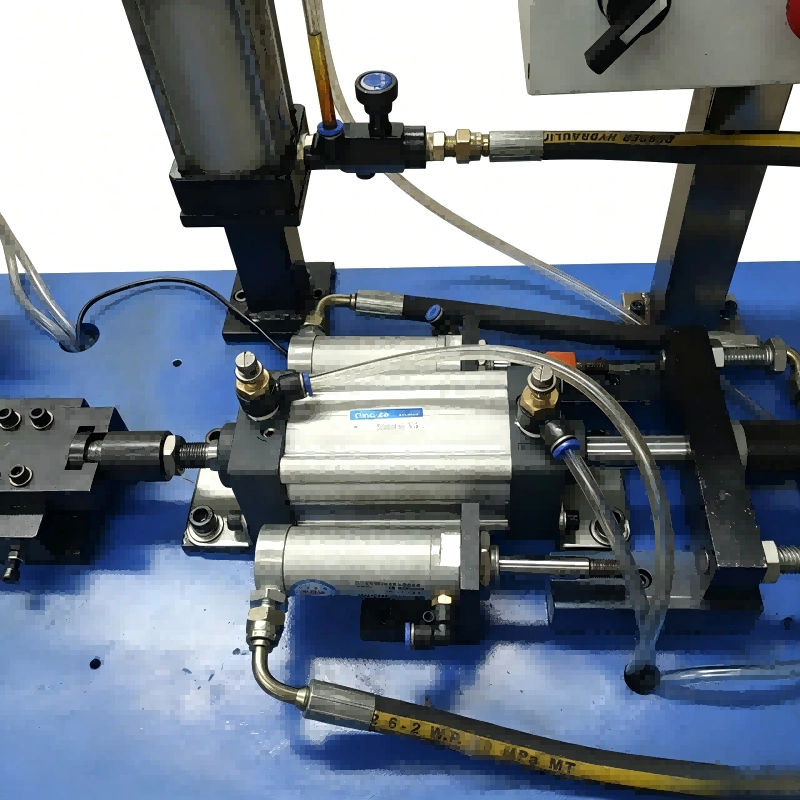

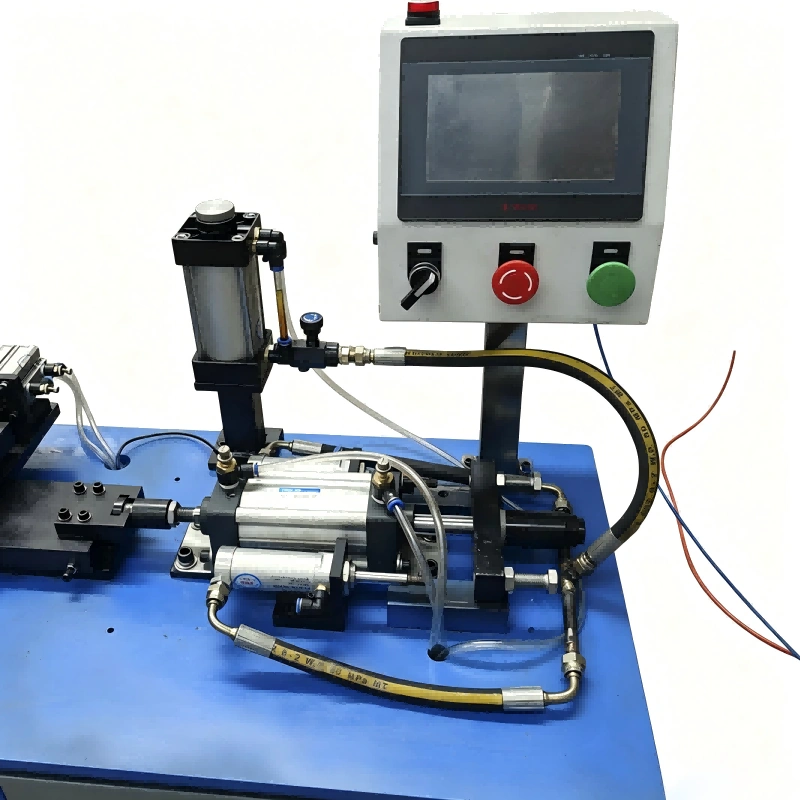

Stable Pneumatic Clamping: The pneumatic clamping system ensures the heater remains firmly in position during the cutting process, minimizing vibrations and guaranteeing a clean and precise finish. This feature is key to performance stability.
Tool Rotation for Effective Cutting: The rotation of the cutting tools allows for an efficient and uniform machining process, resulting in a high-quality finish on the heater head.
Simple Operation and Maintenance: Designed with ease of use in mind, the MT-03 requires minimal training for operation, and its maintenance is straightforward, reducing downtime and optimizing production efficiency.
High Production Efficiency: Thanks to its automation and optimized design, the machine contributes to a high production rate, allowing manufacturers to meet demand more effectively.
The following specifications detail the capabilities and technical requirements of the cartridge heater turning machine MT-03, a fundamental piece of equipment for processing industrial tube heads.
|
Parameter |
Specification |
|---|---|
|
Adaptable Heater Shape |
Round |
|
Processing Capacity |
|
|
- Heater Length |
100 - 6000 mm |
|
- Heater Diameter |
6 - 30 mm |
|
Operation Mechanism |
|
|
- Tool Type |
Tool Rotation |
|
- Clamping |
Pneumatic |
|
General Characteristics |
|
|
- Performance |
Stable |
|
- Operation |
Simple |
|
- Maintenance |
Simple |
|
- Production Efficiency |
High |
The finishing of the head in cartridge heaters is a critical factor that directly influences the durability, performance, and safety of the final product. The cartridge heater turning machine MT-03 is designed to achieve the highest quality cartridge heater head finishing, which is essential for a hermetic seal and effective protection against moisture and contaminants. A well-cut and finished head prevents premature failures and prolongs the life of the heating element, aspects fundamental to customer satisfaction and brand reputation. For manufacturers seeking excellence in cartridge heater production, the MT-03 is a strategic investment. By highlighting the importance of head quality in heaters and optimal sealing in heaters, companies can position their products as reliable, high-performance solutions, attracting clients who value durability and safety in their industrial applications.
The MT-03 employs a high-speed tool rotation system designed to work on various metals. Depending on the hardness of the cartridge sheath, the machine can be equipped with:
Tungsten Carbide Inserts: Ideal for finishing heaters with Stainless Steel and Incoloy sheaths, guaranteeing a long lifespan and clean cuts.
High-Speed Steel (HSS) Blades: Commonly used for softer metals like copper or brass.
Technical Advantage: This rotary cutting system avoids deformation of the ends and ensures that the magnesium oxide (MgO) insulation does not get contaminated or crumble, maintaining the dielectric integrity of the head.
