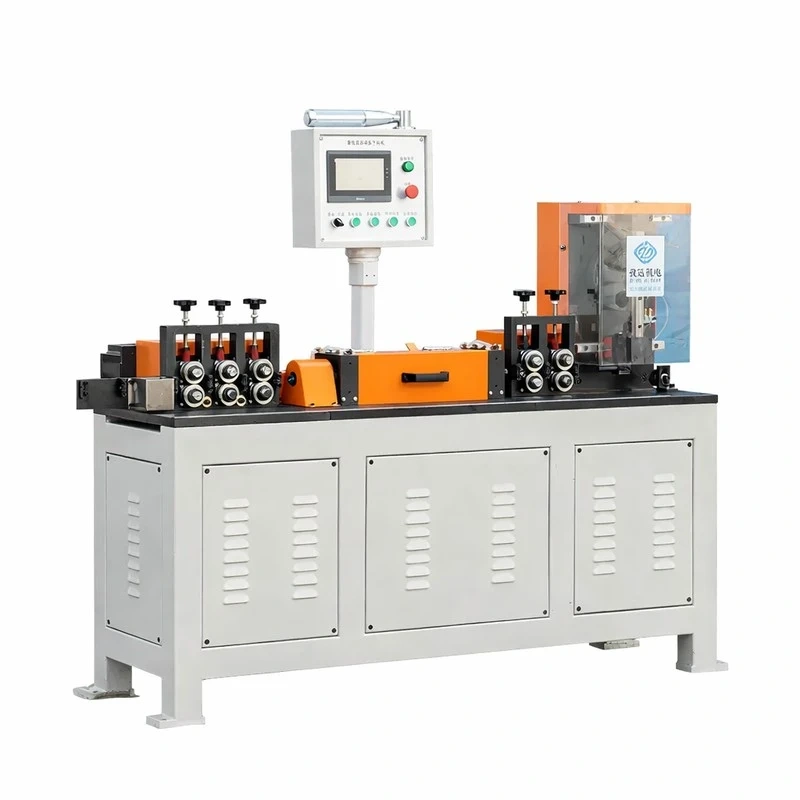

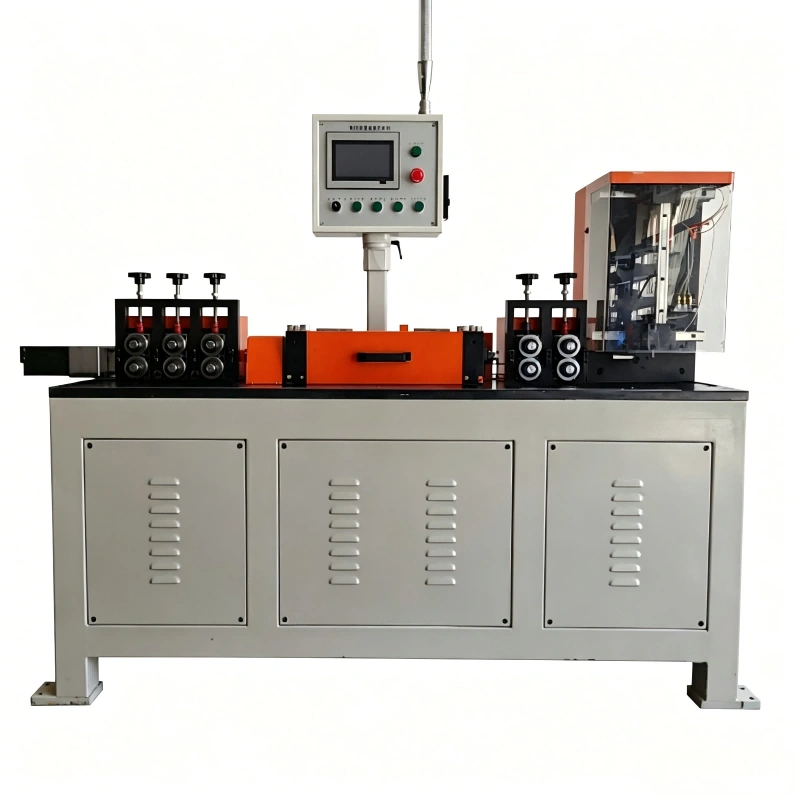

This wire straightening and cutting machine incorporates a sophisticated servo motor feeding system, positioning it as one of the most advanced rod straightener machines on the market. Its cam-driven cutting method, the most modern available, ensures uninterrupted feeding and continuous cutting, surpassing the limitations of traditional systems. This feature is crucial for maintaining productivity and precision in an automatic wire rod cutter. With this wire straightener offering competitive pricing and exceptional performance, users gain a robust and reliable tool optimized for efficiency and quality in the straightening and cutting of wire across different diameters.
The CNC wire straightening and cutting machine represents the forefront of metal processing technology. Designed to be a wire rod straightener and a high-precision wire straightener, this automated equipment is an integral solution for various industries. Its advanced Computer Numerical Control (CNC) system guarantees efficient operation and consistent results, making it an indispensable wire cutter and straightener for modern production. It is ideal for those seeking a machine to straighten wire rod or a wire straightening machine with superior capabilities, including the processing of galvanized wire and other types of iron wire.
The versatility of this CNC wire straightening and cutting machine makes it suitable for a wide range of industrial applications where precision and efficiency are paramount. It is an essential wire straightening machine in sectors such as:
Construction: For the preparation of rods and wire for reinforcing bars, welded mesh, and precast concrete elements.
Metal Product Manufacturing: In the production of components for appliances, furniture, grilles, and other items requiring accurately straightened and cut wire.
Wire Industry: Ideal for wire manufacturers who need to process large volumes of wire rod and galvanized wire.
Agriculture: In the creation of support structures, fences, and other elements utilizing wire.
Automotive: For the manufacturing of specific wire components that require high precision.
The CNC wire straightening and cutting machine distinguishes itself through a series of innovative features that translate into significant advantages for the user:

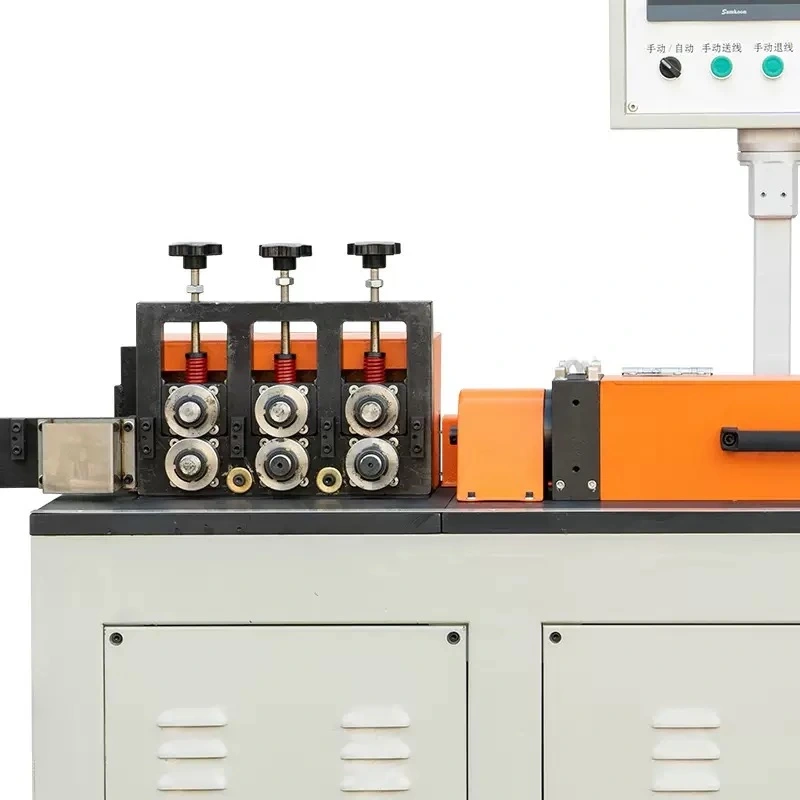

Servo Motor Feeding System: Guarantees precise and constant wire feeding, eliminating interruptions and improving the quality of the straightening and cutting process.
Continuous Cam Cutting: This advanced method allows for fast and efficient cutting, optimizing production speed and the uniformity of the pieces.
High Precision: With an error of ±0.5 mm over 2 meters, this wire straightener ensures that every piece meets exact specifications, reducing material waste.
Automated CNC Operation: CNC control facilitates programming and operation, minimizing the need for manual intervention while increasing safety and repeatability.
Diameter Versatility: Capable of processing iron wire from 1 mm up to 5 mm, making it an adaptable wire rod straightener for diverse production needs.
Superior Efficiency: With working speeds of up to 130 meters per minute and up to 350 cuts per minute, it maximizes productivity.
Robust and Durable Design: Built to withstand the demands of continuous industrial use, guaranteeing a long service life and reduced maintenance.
The performance of the CNC wire straightening and cutting machine is a key factor that differentiates it in the market. With two main models, ZD-TZ-F3 and ZD-TZ-F5, it offers options tailored to different production volumes and requirements. Both models stand out for their ability to process wire rod and wire with remarkable efficiency.
|
Feature |
Model ZD-TZ-F3 |
Model ZD-TZ-F5 |
|---|---|---|
|
Total Power |
6.8 KW |
10.1 KW |
|
Diameter Range |
1-3 mm (iron wire) |
2-5 mm (iron wire) |
|
Working Efficiency |
80-130 M/MIN |
70 M/MIN |
|
Max. Cutting Speed |
350 pcs/MIN |
300 pcs/MIN |
|
Error (2m) |
±0.5 MM |
±0.5 MM |
|
Max. Rotation Speed |
12000 RPM |
7000 RPM |
These data demonstrate the machine's capacity to maintain high production with constant precision, making it a profitable investment for any operation requiring an automatic wire rod cutter or a high-performance rod straightening machine.
|
Technical Parameter |
Model ZD-TZ-F3 |
Model ZD-TZ-F5 |
|---|---|---|
|
Machine Total Power |
6.8 KW |
10.1 KW |
|
Input Voltage |
Three-phase 380V + Neutral - 50/60HZ |
Three-phase 380V + Neutral - 50/60HZ |
|
Power System |
Feed Servo: 1.5KW |
Feed Servo: 2.3KW |
|
Applicable Diameter Range |
1-3 mm (iron wire) |
2-5 mm (iron wire) |
|
Working Efficiency |
80-130 M/MIN |
70 M/MIN |
|
Max. Cutting Speed |
350 pcs/MIN |
300 pcs/MIN |
|
Error (within 2 meters) |
±0.5 MM |
±0.5 MM |
|
Max. Rotation Speed of Straightening Spindle |
12000 RPM |
7000 RPM |
|
External Dimensions (MM) |
1920 * 850 * 1600 |
1920 * 850 * 1600 |
|
Total Machine Weight (KG) |
850 |
950 |
This technical sheet underscores the capability of the CNC wire straightening and cutting machine to meet the most demanding industry requirements, offering a robust, high-tech solution for wire rod and wire processing.
Precision is the differentiating factor of a high-tech CNC wire straightener. Our advanced models, such as the automatic wire rod cutter ZD-TZ-F3 and F5, offer exceptional precision with a margin of error of only ±0.5 mm over lengths of up to 2 meters. This millimeter-level accuracy is made possible by the use of state-of-the-art servomotors and a numerical control system that perfectly synchronizes feeding and cutting. For industries looking for a machine to straighten wire with minimal tolerances, this technology guarantees that every piece is identical, drastically reducing material waste and optimizing subsequent assembly processes.
