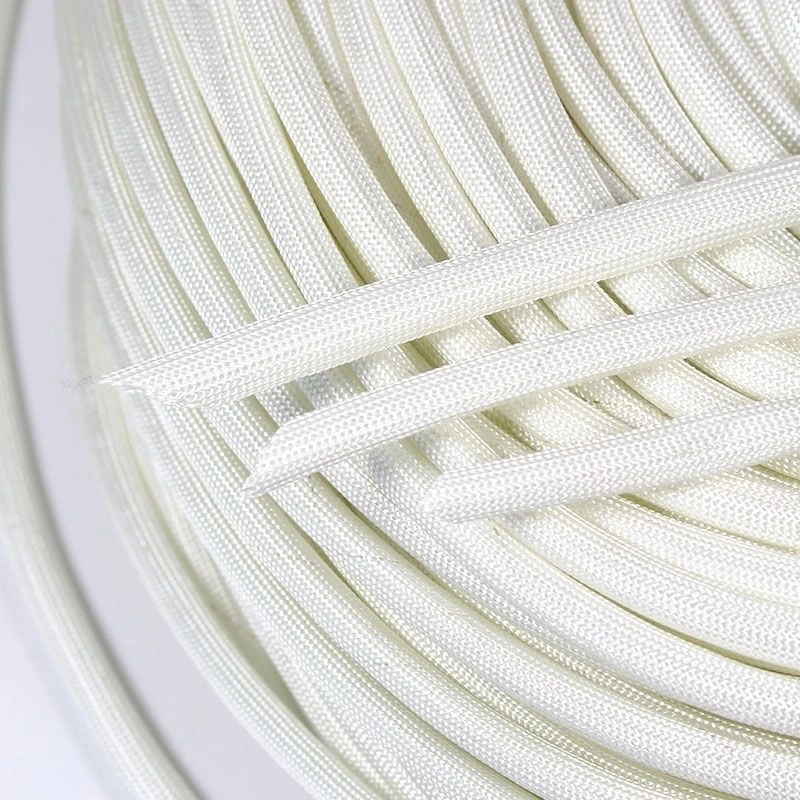

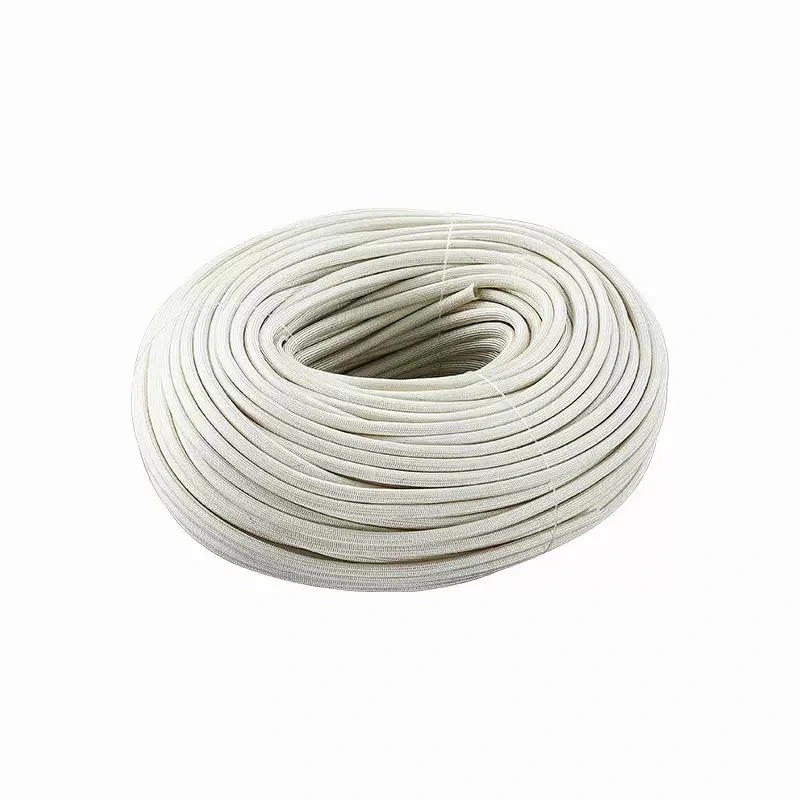

Discover our Fiberglass Sleeving, the ultimate solution for cable protection in high-demand environments. Manufactured with the highest quality alkali-free fiberglass, this product is designed to offer exceptional thermal resistance, supporting continuous temperatures of up to 400°C and instantaneous peaks of up to 600°C. Ideal for safeguarding the integrity of electrical installations both indoors and outdoors, our fiberglass sleeve provides robust and durable insulation. Its versatility extends to a wide range of applications, guaranteeing the safety and optimal performance of your electrical systems.
We present our High-Temperature Fiberglass Sleeves, resistant up to 600 degrees, also known as Fiberglass Sleeving, an essential component for the protection and insulation of electrical conductors. This fiberglass sleeving stands out for its impressive ability to withstand voltages from 500V to 1500V and operating temperatures of 400°C, with the ability to resist momentary exposures to 600°C. Available in diameters ranging from 0.5mm to 60mm and in white and black colors, these sleeves are the perfect choice for applications demanding superior protection against extreme heat and mechanical stress, ensuring circuit reliability under the most adverse conditions.
In the manufacturing of our Fiberglass Sleeving, we employ advanced production processes and rigorous quality controls to ensure a product of superior performance. We carefully select alkali-free fiberglass from certified suppliers, guaranteeing the purity and resistance of the base material. Our process includes the precise braiding or weaving of fibers to form the sleeves, followed by thermal treatments and, if necessary, special coatings that optimize their dielectric properties and abrasion resistance. Each batch of sleeving undergoes exhaustive testing for tensile strength, temperature, and dimensions to meet the highest industry standards. This commitment to manufacturing excellence allows us to offer a reliable and durable product capable of satisfying the most demanding requirements of our clients.
Fiberglass Sleeving is indispensable in a variety of sectors where thermal and electrical protection is critical. Its main applications include:
Automotive Industry: Protection of wiring in engines, exhaust systems, and electrical components exposed to high temperatures.
Household Appliances: Insulation of cables in ovens, stoves, heaters, and other heat-generating appliances.
Lighting: Protection of conductors in high-power luminaires and industrial lighting systems.
Industrial Machinery: Insulation and protection of cables in processing equipment, industrial furnaces, and heating systems.
Aerospace and Defense: Applications requiring resistance to extreme temperatures and reliable performance under severe conditions.
Heating and Ventilation Systems (HVAC): Protection of wiring in heating units, boilers, and hot air ducts.
Power Electronics: Insulation of components in transformers, heaters, and other heat-dissipating devices.
Our Fiberglass Sleeving offers a unique combination of features and advantages that make it the preferred choice for high-temperature wire protection:
Exceptional Thermal Resistance: Supports 400°C continuously and up to 600°C in peaks, guaranteeing cable integrity in extreme environments.
High Dielectric Performance: With a voltage resistance of 500V to 1500V, it provides safe and reliable electrical insulation.
Superior Quality Material: Manufactured with alkali-free fiberglass, ensuring excellent chemical stability and durability.
Wide Range of Sizes: Available in diameters from 0.5mm to 60mm, adapting to diverse wiring needs.
Color Versatility: Offered in white and black to facilitate identification and aesthetics in different installations.
Robust Protection: Effectively protects cables against abrasion, moisture, and chemical agents, extending their lifespan.
Enhanced Safety: Minimizes the risk of short circuits and electrical failures, contributing to a safer work environment.
Easy Installation: Its flexibility allows for simple handling and efficient installation in various configurations.
|
haracteristic |
Detail |
|---|---|
|
Product Name |
Fiberglass Sleeving |
|
Material |
Fiberglass (alkali-free) |
|
Voltage Resistance Range |
500V ~ 1500V |
|
Continuous Operating Temperature |
400°C |
|
Instantaneous Operating Temperature |
Up to 600°C |
|
Available Colors |
White, Black |
|
Diameter Range |
0.5mm ~ 60mm |
|
Main Function |
Protection of indoor and outdoor electrical cables |
Dimensions Table
|
Model (mm) |
Inner Diameter of Sleeve (mm) |
Voltage |
Packaging (m/roll) |
|---|---|---|---|
|
Φ1.0 |
1.3±0.3 |
1500V |
200 |
|
Φ1.5 |
1.4±0.3 |
1500V |
200 |
|
Φ2.0 |
2.2±0.3 |
1500V |
200 |
|
Φ2.5 |
2.7±0.3 |
1500V |
200 |
|
Φ3.0 |
3.2±0.3 |
1500V |
100 |
|
Φ3.5 |
3.7±0.3 |
1500V |
100 |
|
Φ4.0 |
4.3±0.3 |
1500V |
100 |
|
Φ5.0 |
5.3±0.3 |
1500V |
100 |
|
Φ6.0 |
6.3±0.4 |
1500V |
100 |
|
Φ8.0 |
8.3±0.4 |
1500V |
100 |
|
Φ10 |
10.4±0.5 |
1500V |
50 |
|
Φ12 |
12.5±0.5 |
1500V |
50 |
|
Φ14 |
14.5±0.5 |
1500V |
50 |
|
Φ16 |
16.5±0.5 |
1500V |
50 |
|
Φ18 |
18.5±0.5 |
1500V |
50 |
|
Φ20 |
21±1 |
1500V |
50 |
|
Φ22 |
23±0.3 |
1500V |
50 |
|
Φ25 |
26±0.3 |
1500V |
50 |
|
Φ30 |
≥30 |
1500V |
50 |
|
Φ35 |
≥35 |
1500V |
50 |
|
Φ40 |
≥40 |
1500V |
50 |
|
Φ50 |
≥50 |
1500V |
50 |
|
Φ60 |
≥60 |
1500V |
50 |
Note: The inner diameter refers to the round diameter of the sleeve, not the folded diameter.
The use of fiberglass sleeving is simple and straightforward: the sleeve is slid over the cable or bundle of cables before making the final connections. It is the ideal solution for protecting conductors in critical areas such as motors or lighting systems. Being a fiberglass sleeve with resistance to high temperatures up to 600 degrees, it provides immediate mechanical and thermal protection, preventing ambient heat or direct contact with hot surfaces from damaging the cable's original plastic insulation.
