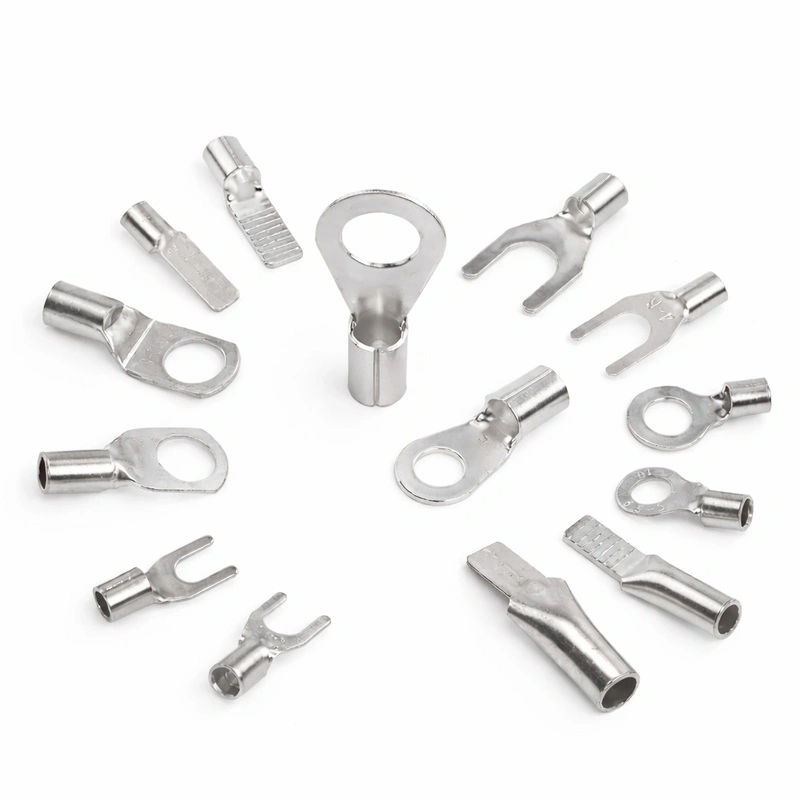

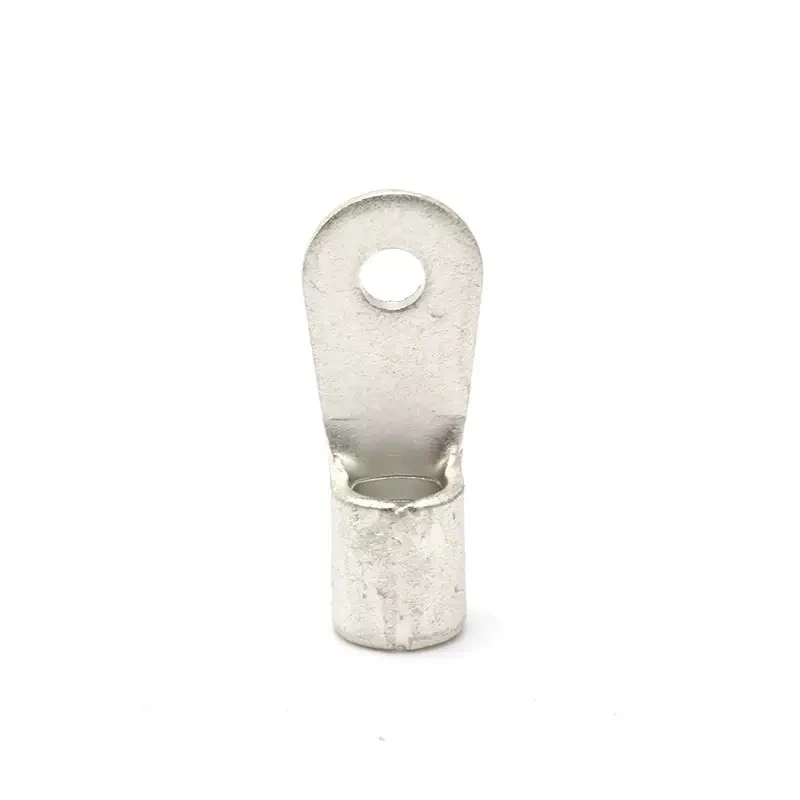

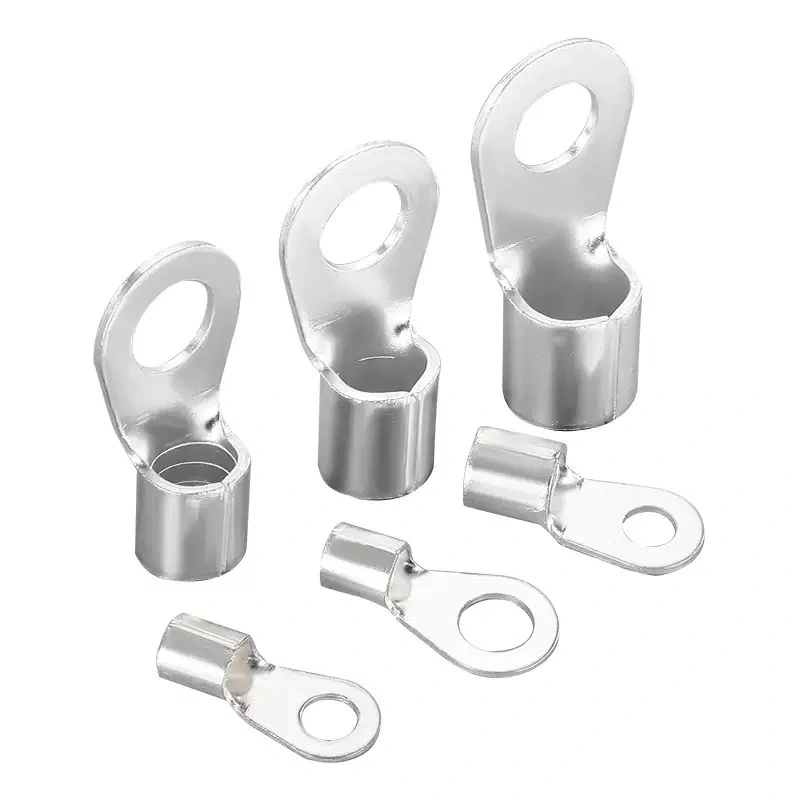

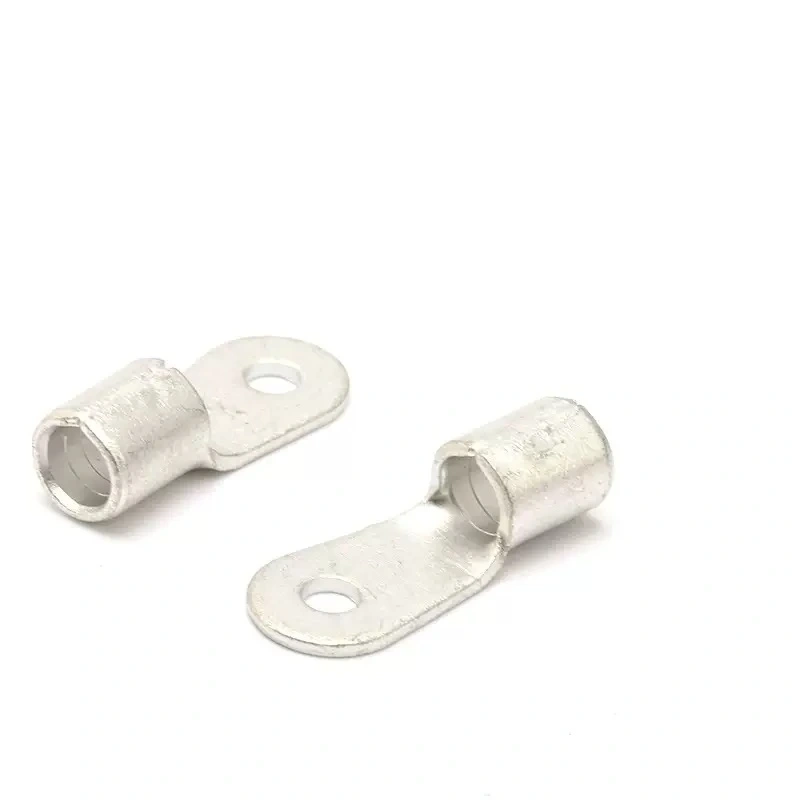

Our OT series high-temperature ring terminals, also known as high-temp spade connectors or ring-type quick-connect terminals, are first-rate connection components designed to guarantee superior performance and unbreakable safety in the most demanding electrical applications. Manufactured from high-purity purple copper (99.9%) with a tinned finish, these terminals offer exceptional electrical conductivity, minimizing heat generation and preventing overheating failures. Their robust design ensures a stable and reliable electrical connection, making them the ideal solution for cable terminations requiring durability and high-temperature resistance. Each terminal is designed to withstand voltages of up to 600V, complying with the highest industry standards, including CE, ISO9001, and RoHS certifications.
At Heatecx Limited, we understand that energy efficiency and operational safety are fundamental pillars in any modern electrical installation. Therefore, we present our OT series high-temperature ring terminals, the definitive solution for high-current connections and demanding environments. These tinned copper spade connectors not only guarantee optimal power transmission thanks to their pure copper composition (99.9%), but are also designed to minimize contact resistance and, consequently, heat generation. This attribute is crucial for preventing energy losses and reducing the risk of failures or fires, ensuring a safe and continuous operation.
Every high-temperature ring terminal is meticulously manufactured to withstand up to 600V, offering exceptional durability and superior corrosion resistance thanks to its tinned finish. Its robust design facilitates reliable installation and secure mechanical connection, indispensable in applications where vibration and thermal fluctuations are constant. With Heatecx OT terminals, you invest in the longevity of your systems, the protection of your equipment, and the efficiency of your power consumption, all while complying with international safety and quality regulations such as CE, ISO9001, and RoHS. Optimize your industrial electrical installations with the confidence that only Heatecx Limited can offer.
The versatility and reliability of our high-temperature ring terminals make them indispensable in a wide range of critical sectors. Their ability to maintain a secure connection under extreme conditions is fundamental for:
Power and Electrical Distribution Industry: Perfect for use in distribution boards, substations, and grid connections, where a low-resistance connection is crucial for system efficiency and safety.
Advanced Manufacturing and Automation: Used in industrial machinery, robotics, and control systems that operate continuously and require components that withstand vibrations and thermal cycles without degradation.
Renewable Energy Sector: Essential for the connection of solar panels, wind turbines, and battery storage systems, where efficiency and corrosion resistance are vital for system longevity.
Medical Equipment: Their high reliability makes them suitable for medical and diagnostic devices, where precision and the absence of electrical failures are imperative for patient safety.
Automotive and Electric Vehicles: Ideal for battery wiring, motors, and energy management systems in electric vehicles, where thermal management and reliability are paramount.
Choosing our tinned copper spade connectors means investing in safety, efficiency, and durability. Below are the key advantages offered by our terminals:
|
Feature |
Advantage for the User |
|---|---|
|
Pure Copper Material (99.9%) |
Maximizes conductivity, reduces energy loss and heat generation, resulting in a more efficient and safer operation. |
|
High-Quality Tinned Finish |
Provides excellent protection against corrosion and oxidation, ensuring a low-resistance electrical connection over the long term. |
|
Robust Ring Design |
Facilitates a secure and firm connection to screws or terminals, guaranteeing a mechanical hold that resists vibration and stress. |
|
Certification and Regulatory Compliance |
Complies with international standards (CE, RoHS, ISO9001), ensuring quality, safety, and compatibility with global regulations. |
|
Wide Range of Sizes |
Available in a vast range of dimensions to adapt to different cable gauges and screw sizes, offering a solution for every need. |
Our OT series terminals are precisely designed to meet the most rigorous specifications. Below is a summary of their technical parameters:
Maximum Nominal Voltage: 600V
Main Material: High-purity copper (Cu ≥ 99.9%)
Optional Material: Stainless Steel, Brass, etc.
Surface Coating: Tinned
Operating Temperature Range: Designed for high-temperature applications (please consult the cable specification for system limitations).
Compatible Wire Gauges: From 0.5mm² up to 300mm².
To guarantee an optimal and safe electrical connection, it is fundamental to follow the correct installation procedures. Proper installation not only ensures the performance of the ring terminal but also prevents electrical hazards and premature failures.
Cable Preparation: Strip the cable insulation to the correct length, ensuring not to damage the conductor strands. The length of the stripped section must match the depth of the terminal barrel.
Compression Tool (Crimping Tool): Always use a professional crimping tool designed for the terminal size and cable gauge. Improper compression, whether excessive or insufficient, can result in a faulty connection, overheating, or cable detachment.
Crimping Process: Fully insert the conductor into the terminal barrel. Center the crimping tool over the barrel and apply the manufacturer-recommended pressure until the compression cycle is complete.
Visual Inspection: After crimping, verify that the compression is uniform and that the cable is firmly secured. The tool's die mark should be visible on the barrel. There should be no loose strands or excessive deformation of the terminal.
Connection and Tightening: Secure the ring terminal to the corresponding terminal block or screw. Use a lock washer if necessary and tighten the nut or screw to the specified torque to ensure a firm, low-resistance contact.
Following these guidelines is key to taking full advantage of the quality and safety offered by our high-temperature electrical terminals.
Overheating of terminals is a common cause of electrical failures. Our high-temperature terminals address this issue in several ways:
High Conductivity: Pure copper ensures low electrical resistance, meaning less energy is dissipated as heat.
Optimal Design: The geometry of our ring spade connectors is designed to maximize contact area and heat dissipation.
Tinned Finish: The tin layer not only protects against corrosion but also improves conductivity at the contact interface, further reducing contact resistance and, therefore, generated heat.
By minimizing contact resistance and optimizing heat dissipation, Heatecx OT terminals contribute significantly to the operational safety and energy efficiency of your systems.
