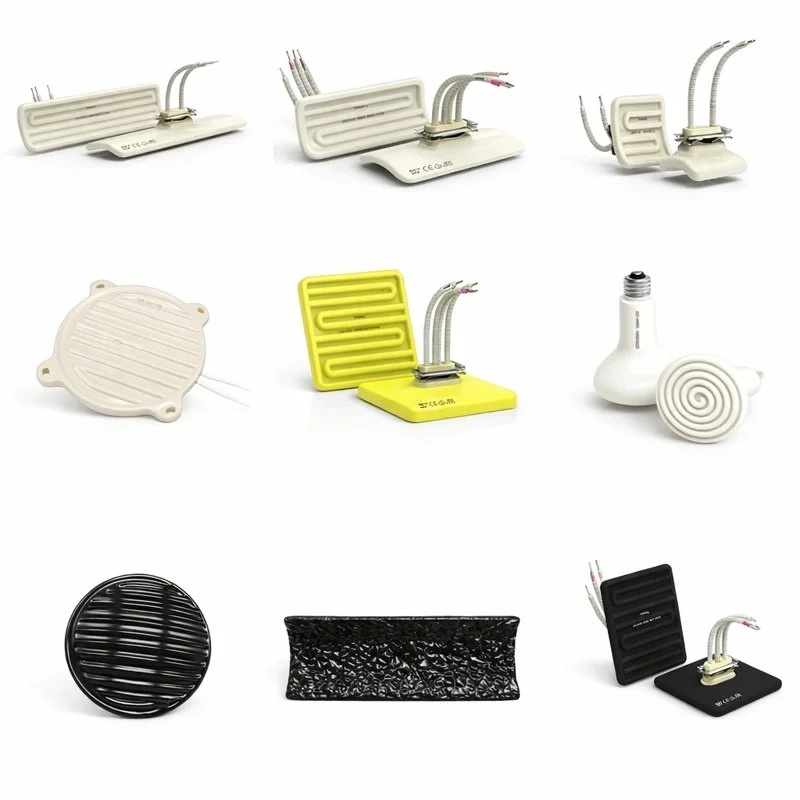

The IXSHFS Series Vacuum Ceramic Infrared Heater represents the pinnacle of industrial heating technology, designed to deliver exceptional performance in Long Wave and Far Infrared emission. This high-performance heater is manufactured through an innovative hollow casting molding process, where an Embedded Nicrom Heater is housed within a ceramic body, and the interior is filled with a high-density insulating material. This unique construction minimizes heat transfer to the back of the heater, concentrating radiant energy towards the target. The result is greater energy efficiency, a significant reduction in preheating times, and superior capability for uniform and deep heating of materials. The IXSHFS vacuum ceramic infrared heaters are the ideal solution for processes demanding maximum thermal efficiency and precise energy control.
The IXSHFS heaters are distinguished by their advanced design, which incorporates high-density internal insulation, reducing heat flow towards the rear of the element by up to 25% compared to traditional ceramic heaters. This feature not only improves energy efficiency but also protects surrounding components from excessive heat. Like other ceramic infrared emitters, these heaters use an Embedded Nicrom Heater to generate Long Wave and Far Infrared heat, optimizing absorption by the material to be heated. They are compatible with an Integrated Thermocouple (Type K or J) for exact temperature control and fast response. With a maximum surface temperature of 900°C and a power range from 125W to 1000W, the IXSHFS models are perfect for critical applications in various industries. Electrical connections are protected with Ceramic Beads to ensure safe and durable insulation.
The IXSHFS vacuum ceramic infrared heaters are ideal for applications requiring high energy efficiency, rapid heating, and superior thermal management. Their main uses include:
Plastics Industry: High-speed thermoforming, coating curing, and plastic drying, where efficiency and speed are crucial.
Glass Industry: Glass preheating, tempering, and annealing, benefiting from the high temperature and Far Infrared emission.
Metallurgical Industry: Metal heat treatments, mold drying, and part preheating, leveraging the heat penetration capability.
Industrial Drying: Fast drying of paints, varnishes, adhesives, and other coatings in manufacturing processes, where reduced preheating time is advantageous.
Food Processing: High-efficiency baking, dehydration, and sterilization, where precision and hygiene are fundamental.
Laboratories and Research Equipment: Sample heating, material testing, and processes requiring very precise thermal control.
The IXSHFS vacuum ceramic heaters offer a series of features and advantages that position them as a premium solution in the ceramic infrared emitter market:
25% Energy Saving: Thanks to their hollow casting molding design and the filling of high-density insulating material, these heaters significantly reduce heat loss towards the rear, translating into energy savings of up to 25%.
Fast and Efficient Heating: The concentrated emission of Long Wave and Far Infrared allows for faster heating of materials, shortening preheating times and increasing productivity.
Higher Surface Temperature: Capable of reaching up to 900°C on the surface, they are suitable for applications requiring higher temperatures than standard ceramic heaters.
Long Service Life and Reliability: Built with high-quality ceramic materials and a robust Embedded Nicrom Heater, they ensure durable and reliable operation even in the most demanding industrial environments.
Superior Thermal Control: The option to integrate an Integrated Thermocouple (Type K or J) allows for extremely precise temperature control, optimizing process performance and final product quality.
Environmental Protection: The Vitrified Glaze on the surface protects the heating element from moisture, corrosion, and chemical agents, ensuring consistent and safe performance.
Safe Electrical Insulation: Connections with Ceramic Beads provide high-quality electrical insulation, complying with industrial safety regulations.
The IXSHFS vacuum ceramic infrared heaters are designed to meet the highest standards of performance and durability. Their key technical specifications are detailed below:
|
Parameter |
Specification |
|---|---|
|
Emission Type |
Far Infrared, Long Wave |
|
Body Material |
High-resistance ceramic with Vitrified Glaze and high-density internal insulation |
|
Heating Element |
Embedded Nicrom Heater |
|
Standard Power |
125W to 1000W (8 standard levels) |
|
Operating Voltage |
230V (Standard, other options available) |
|
Maximum Surface Temperature |
900°C |
|
Wavelength Range |
2 - 10 μm |
|
Power Density |
16 to 64 kW/m² (according to model and power) |
|
Electrical Connection |
Ceramic terminals with insulating Ceramic Beads |
|
Thermocouple Options |
Integrated Thermocouple (Type K or J) (optional) |
Model and Dimensions Table (IXSHFS Series):
|
Model |
Type |
Dimensions (mm) (Length x Width) |
Weight (g) |
Power (W) |
|---|---|---|---|---|
|
IXSHFS1 |
FTE (Full Trough Element) |
245 x 60 |
230 |
250, 400, 600, 800, 1000 |
|
IXSHFS2 |
FTE (Full Trough Element) |
245 x 60 |
230 |
250, 400, 600, 800, 1000 |
|
IXSHFS3 |
HTE (Half Trough Element) |
122 x 60 |
135 |
125, 200, 300, 400, 500 |
|
IXSHFS4 |
QTE (Quarter Trough Element) |
60 x 60 (estimated) |
85 |
60, 100, 150, 200, 250 |
|
IXSHFS5 |
FTE (Full Trough Element) |
245 x 60 |
230 |
250, 400, 600, 800, 1000 |
|
IXSHFS6 |
FTE (Full Trough Element) |
245 x 60 |
230 |
250, 400, 600, 800, 1000 |
Note: The dimensions for the IXSHFS4 models are estimated based on the proportion of other models and the QTE description. It is recommended to verify the exact dimensions with the manufacturer.
To meet the specific demands of the most demanding applications, the IXSHFS vacuum ceramic infrared heaters offer extensive customization possibilities:
Power and Voltage: Configuration of custom powers and voltages to adapt to the exact energy requirements of any system or process.
Integrated Thermocouple: Option to incorporate an Integrated Thermocouple (Type K or J) for high-precision temperature control and real-time monitoring, crucial for critical processes.
Cable Length and Connectors: Personalization of connection cable length and connector type for perfect and safe integration into any equipment. Ceramic Beads are used for superior electrical insulation.
Advanced Materials: For environments with extreme temperature conditions or aggressive chemicals, advanced ceramic materials or Embedded Nicrom Heater alloys with improved resistance and durability properties can be selected.
Special Designs: Manufacturing of heaters with custom shapes or dimensions to fit complex heating geometries or very restricted spaces, maximizing application efficiency.
Mounting Systems: Development of adapted mounting and fastening solutions, including special supports or specific perforations for quick, safe, and efficient installation.
Surface Finishes: Although the standard Vitrified Glaze is white, finish options can be explored to meet particular aesthetic or functional requirements, such as greater abrasion resistance or specific reflective properties.
The most effective way is to migrate to Vacuum emitters (IXSHFS Series). Thanks to their hollow casting design with internal insulation, these models reduce heat loss through the rear by 25%. This means almost all energy is directed towards the material, allowing for faster production cycles and a significantly lower electricity bill.
