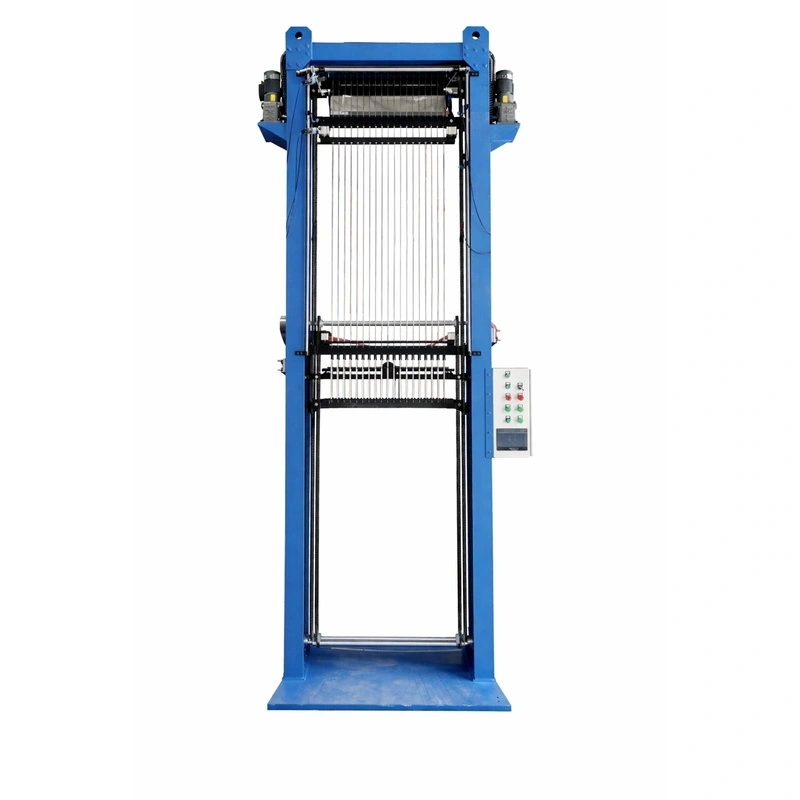

MgO Filling Machine for Aluminum Fin Heaters HT-AX1
The HT-AX1 MgO filling machine represents the cutting edge in heater manufacturing, specifically designed for processing aluminum fin-type heaters. This specialized equipment solves the technical challenges posed by complex internal structures, ensuring uniform, high-density magnesium oxide filling—essential for thermal efficiency and the service life of industrial heaters.
From a commercial perspective, the HT-AX1 MgO filler is the ideal investment for companies seeking to elevate their quality standards in aluminum heater production. Its capability to handle multiple heater wire configurations makes it a versatile tool for diverse industrial applications. Technically, the use of servomotors ensures millimeter-level precision in the filling process, reducing material waste and improving consistency in the final product.
The HT-AX1 MgO filling machine represents the cutting edge in heater manufacturing, specifically designed for processing aluminum fin-type heaters. This specialized equipment solves the technical challenges posed by complex internal structures, ensuring uniform, high-density magnesium oxide filling—essential for thermal efficiency and the service life of industrial heaters.
From a commercial perspective, the HT-AX1 MgO filler is the ideal investment for companies seeking to elevate their quality standards in aluminum heater production. Its capability to handle multiple heater wire configurations makes it a versatile tool for diverse industrial applications. Technically, the use of servomotors ensures millimeter-level precision in the filling process, reducing material waste and improving consistency in the final product.
The HT-AX1 is a next-generation magnesium oxide (MgO) powder filling machine, developed to optimize the production of tubular electric heaters with aluminum coating. Unlike conventional fillers, this model integrates a specialized vibration system adapted to the unique geometries of finned tubes, allowing the powder to flow without obstruction and compact optimally around the heating wires.
| Appearance | Detailed Description |
| Design Innovation | Adaptive structure for one, two, or three heater wire groups. |
| Vibration System | Mechanical or electromagnetic vibration technology for maximum density. |
| Versatility | Compatible with filling lengths from 300 mm up to 3000 mm. |

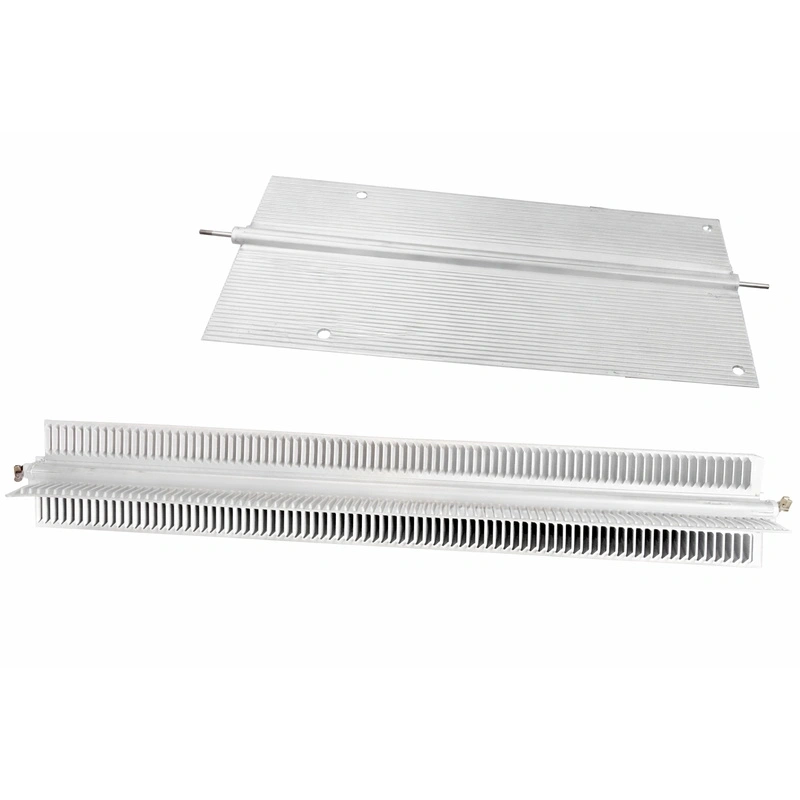

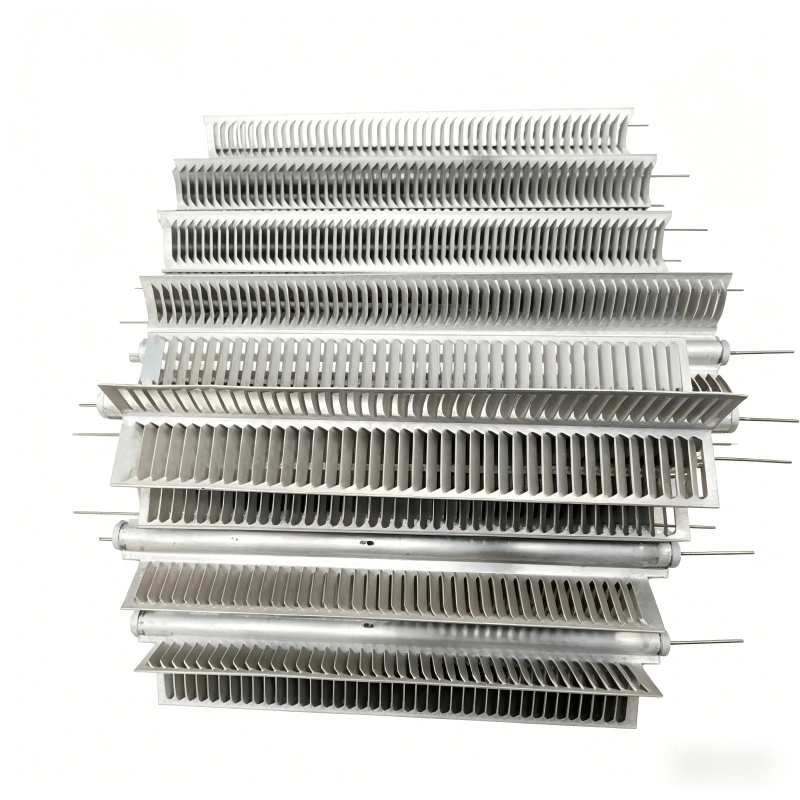

This machinery for electric heaters is specifically oriented toward sectors requiring high-efficiency heating solutions. Its design for aluminum fin tubes makes it indispensable in the manufacture of components for:
-
HVAC Systems: Production of heaters for heat exchangers and air conditioning units.
-
Refrigeration Industry: Manufacturing of defrost elements for industrial evaporators.
-
Thermal Processing Machinery: Creation of custom heaters for ovens and drying tunnels.
-
Medical and Laboratory Equipment: Development of precision heating components with optimized heat dissipation.
Choosing the HT-AX1 machine offers tangible benefits that directly impact profitability and production quality. By integrating this MgO filling machine into your assembly line, you gain the following advantages:
“The integration of servomotors and dual vibration systems allows the HT-AX1 to achieve superior filling densities, complying with the most demanding international standards for heating elements.”
-
Structural Adaptability: Its capacity to configure 1, 2, or 3 wire groups enables the manufacture of a wide range of heaters using a single technological base.
-
Precision Control: The option of servomotor control guarantees constant flow and exact stopping, eliminating human error in the process.
-
Production Efficiency: With a capacity of up to 3000 pieces per shift (for 1-meter lengths), this machine maximizes operational output.
-
Durability and Stability: With a weight of 600 kg and a robust structure, the machine minimizes parasitic vibrations, ensuring quiet and long-lasting operation.
The following details the technical parameters of the HT-AX1 filling machine, essential for planning your production plant and integration with other heater manufacturing systems.
|
Parameter |
Specification |
|---|---|
|
Model |
HT-AX1 (Type X/I) |
|
Filling Range |
300 mm – 3000 mm |
|
Branch Capacity |
10 / 19 branches (depending on configuration) |
|
Wire Configuration |
1, 2, or 3 component groups |
|
Control Mode |
Servomotor / General-purpose motor |
|
Vibration System |
Mechanical or Electromagnetic |
|
Production per Shift |
2000 – 3000 pieces (based on 1 meter) |
|
Electrical Supply |
380V (3-phase) / 220V (3-phase) / 220V (1-phase) |
|
Rated Power |
1100 W |
|
Air Pressure |
0.6 Mpa |
|
Dimensions (1m base) |
3500 × 1600 × 800 mm |
|
Net Weight |
600 KG |
Keys to High-Quality Filling
Success with the HT-AX1 lies in the synchronization between vibration frequency and powder drop speed. Periodic cleaning of the filling channels is recommended to prevent MgO contamination, which is vital to prevent electrical failures in finished heaters. Additionally, servomotor calibration should be reviewed quarterly to maintain dosing accuracy, ensuring that every unit produced meets original design specifications.
FAQ
What is the production capacity of the HT-AX1 filling machine?
The production capacity of the HT-AX1 filling machine is designed to meet high-performance manufacturing lines. Under optimal conditions, this machine can process between 2,000 and 3,000 pieces per shift (based on 1-meter-long elements). Thanks to its servomotor control system, the HT-AX1 minimizes cycle times and guarantees exact repeatability, making it the most efficient solution for mass production of electric heaters without sacrificing filling density.
Why choose the HT-AX1 for aluminum fin-type heaters?
What maintenance does an MgO filling machine require?
Customers also viewed
Industrial PTFE and Silicone Fabrics
Our range of industrial PTFE and silicone fabrics represents the forefront in high-performance materials, designed to overcome the most demanding challenges in industrial environments. These products are based on a high-tenacity fiberglass substrate, coated with Polytetrafluoroethylene (PTFE) dispersions or vulcanized silicone rubber.
High-performance Mica Sheets
Heatecx mica sheets represent the most reliable insulation solution for high-temperature and high-voltage environments. Designed for the manufacturing of electrical resistors, transformers, and heating equipment, our Muscovite Mica and Phlogopite Mica sheets offer an unparalleled combination of thermal stability, dielectric strength, and mechanical durability.
Silica Fiber Sleeve – Temperature up to 1000°C
Silica fiber sleeve, also commercially known as thermal sleeving or spaghetti tubing, is the ultimate solution for component protection in extreme heat environments. Manufactured with an SiO2 content exceeding 96%, it ensures structural integrity where other materials fail.
Industrial PTFE (Teflon) Tapes
Industrial Technical PTFE (Teflon) Tapes represent an advanced engineering solution for the most demanding industrial environments. This product range is designed to offer superior performance in applications requiring extreme temperature resistance, chemical inertness, non-stick properties, and an exceptionally low coefficient of friction.

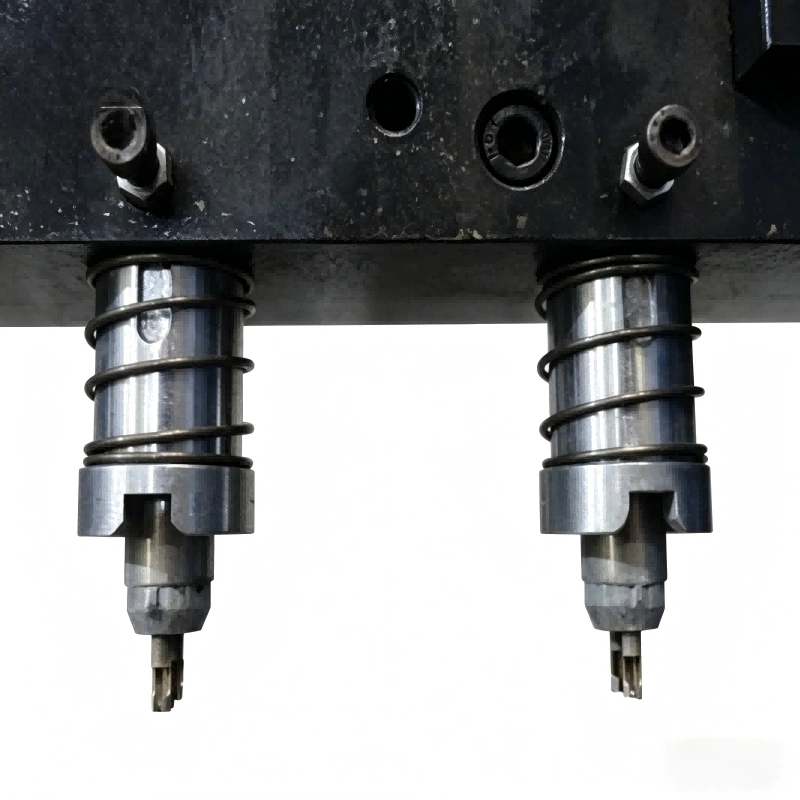

MT01 Semi-automatic Trimming Machine
