Heatecx Limited

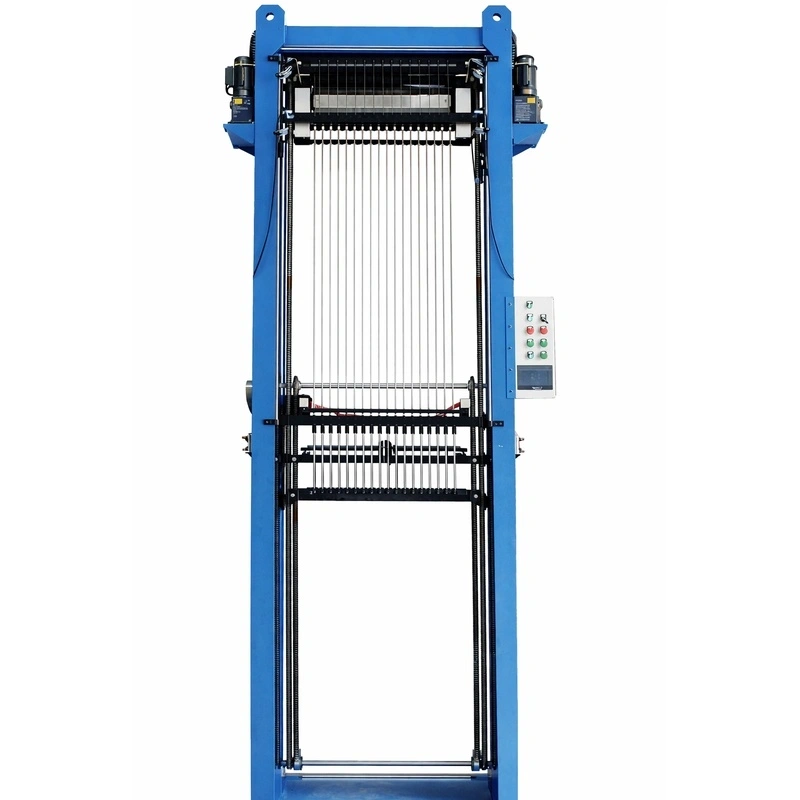

At Heatecx Limited, we understand the critical need for precision and efficiency in the manufacturing of electric heaters. We present our innovative MgO powder filling machine for flat tubes, a state-of-the-art solution specifically designed to optimize the production process of flat heaters and tubular heating elements with non-conventional geometries. This next-generation industrial machinery is not a conventional MgO filling machine; its special structure adapts perfectly to the complexities of flat tubes, guaranteeing uniform and high-density magnesium powder filling. It is the ideal choice for manufacturers seeking to improve heater quality, ensure optimal electrical insulation, and maximize filling efficiency in their production lines. With Heatecx Limited’s MgO filling machine, industrial automation reaches a new level of precision, reducing operating costs and elevating the standard of your final products.
The MgO Powder Filling Machine for Flat Heaters from Heatecx Limited represents a milestone in heating tube filling technology. Its patented design directly addresses the inherent challenges of filling flat tubes with Magnesium Oxide (MgO) powder, a crucial component for thermal and electrical insulation. This precision filling machine is configured to handle heating elements with various heater wire configurations—whether one, two, or three groups—even allowing for a linear arrangement to adapt to specific design requirements. The integration of a specialized vibration system ensures superior MgO compaction, translating into consistent filling density and uniform powder distribution, which are determining factors for the lifespan of the heaters and their thermal performance. Ideal for heater production in sectors such as industrial heating, appliances, and automotive, our MgO filling machine is synonymous with process optimization and reliability in manufacturing.
The MgO filling machine for flat tubes from Heatecx Limited distinguishes itself through its special and modular structure, designed for maximum adaptability and efficiency. Its robust chassis houses a high-precision MgO powder feeding system and a flat tube positioning mechanism. The key to its versatility lies in its ability to adjust to different heater wire configurations within the tube. It can accommodate one, two, or three groups of heater wires, even allowing these components to be arranged in-line according to product specifications. This structural flexibility is fundamental for machine customization and adaptation to a wide range of flat heater designs. Furthermore, it incorporates a special vibration structure that is essential for the effective compaction of MgO powder, ensuring that the produced elements meet the strictest process requirements.
The MgO Powder Filling Machine for Flat Heaters from Heatecx Limited offers a set of features and advantages that position it as a market leader:
Specialized Design for Flat Tubes: Unlike generic machines, it is optimized for the unique geometry of flat heaters, ensuring precise filling where others fail.
Heater Coil Versatility: Capable of handling 1, 2, or 3 groups of heater wires, with a linear arrangement option, allowing for great flexibility in product design.
Advanced Vibration System: Incorporates a special vibrator structure (mechanical or electromagnetic) that guarantees superior MgO powder compaction, resulting in uniform density and better insulation quality.
Precision Control: Equipped with a servomotor or general-purpose motor, it offers exact control over the filling process, minimizing waste and maximizing production efficiency.
Customization: Heatecx Limited offers the possibility to customize the machine according to specific customer process requirements, including the number of stations and filling diameter.
Product Quality Improvement: Precision in filling and compaction directly contributes to a longer heater lifespan, consistent thermal performance, and a reduction in failures.
Reduced Operating Costs: Its high efficiency and optimization of material usage translate into an optimized cost per unit produced, improving profitability.
The performance of the MgO Powder Filling Machine for Flat Heaters from Heatecx Limited is designed to satisfy the most demanding production requirements, guaranteeing consistent, high-quality results:
Flexible Filling Length: Capable of filling tubes with lengths ranging from 300 mm to 10000 mm, making it suitable for a wide variety of heater sizes and applications.
Customizable Filling Diameter: The filling diameter is specified according to customer needs, ensuring a perfect fit for your flat heaters.
Efficient Production per Shift: Production capacity per shift adjusts dynamically based on tube length and structure, allowing for optimized production planning.
Superior MgO Compaction: Thanks to its special vibrator structure, the machine achieves exceptional MgO powder compaction, which is critical for the electrical insulation and heat transfer of the heaters. This ensures that the heating elements meet or exceed the strictest process requirements, minimizing void formation and guaranteeing filling homogeneity.
Reliability and Consistency: Each machine is designed to apply a unique specification, guaranteeing unparalleled filling precision and consistency in the quality of the final product throughout production.
|
Technical Characteristic |
Detail |
|---|---|
|
Number of Main Stations |
According to product size and customer requirements |
|
Filling Length |
300 - 10000 mm |
|
Filling Diameter |
Specified by the customer |
|
Applicability |
One machine for one specification |
|
Filling Structure |
Three guarantees or double guarantee (according to product structure) |
|
Heater Wire Assembly |
1 wire, 2 wires, 3 wires |
|
Control Mode |
Servomotor / General-purpose motor |
|
Vibration Mode |
Mechanical, Electromagnetic |
|
Production per Shift |
According to tube length and structure |
|
Voltage |
3-Phase/480V, 3-Phase/380V, 3-Phase/220V, Single-Phase/220V |
|
Power |
1.5 kW |
|
Machine Volume |
According to the product |
|
Weight |
Approximately 700 KG (for a 1-meter machine) |
Heatecx Limited is committed to offering industrial machinery solutions that not only meet but exceed industry expectations, guaranteeing the production of the highest quality heaters with unmatched efficiency and precision.
Choosing the correct MgO filling machine for flat heaters is a strategic decision that directly impacts heater quality and filling efficiency. Unlike round tubular elements, flat heaters present unique challenges due to their geometry. At Heatecx Limited, we highlight the following key factors for an optimal selection:
Specific Geometry of the Flat Tube: The machine must be designed with a special structure that adapts to the unconventional shape of the tube, ensuring uniform magnesium powder filling in every corner and edge. Look for guidance and compaction systems that prevent voids and ensure consistent filling density.
Filling Length and Diameter: Consider the range of sizes of your products. Our MgO filling machines at Heatecx Limited offer exceptional flexibility, handling lengths from 300 mm to 10000 mm and customizable diameters according to your specifications.
Heater Wire Configuration: Verify that the machine can accommodate the quantity and arrangement of heater wires you use (1, 2, or 3 groups, with a linear arrangement option). This versatility is crucial for manufacturing heaters with varied designs.
Vibration Technology: An advanced vibration system (mechanical or electromagnetic) is indispensable for MgO powder compaction. It ensures the MgO settles homogeneously, eliminating air bubbles and improving electrical insulation and heat transfer.
Control Mode and Automation: Opt for machines with precise control (servomotor or general-purpose motor) for process optimization and continuous production. Industrial automation reduces errors and increases productivity.
