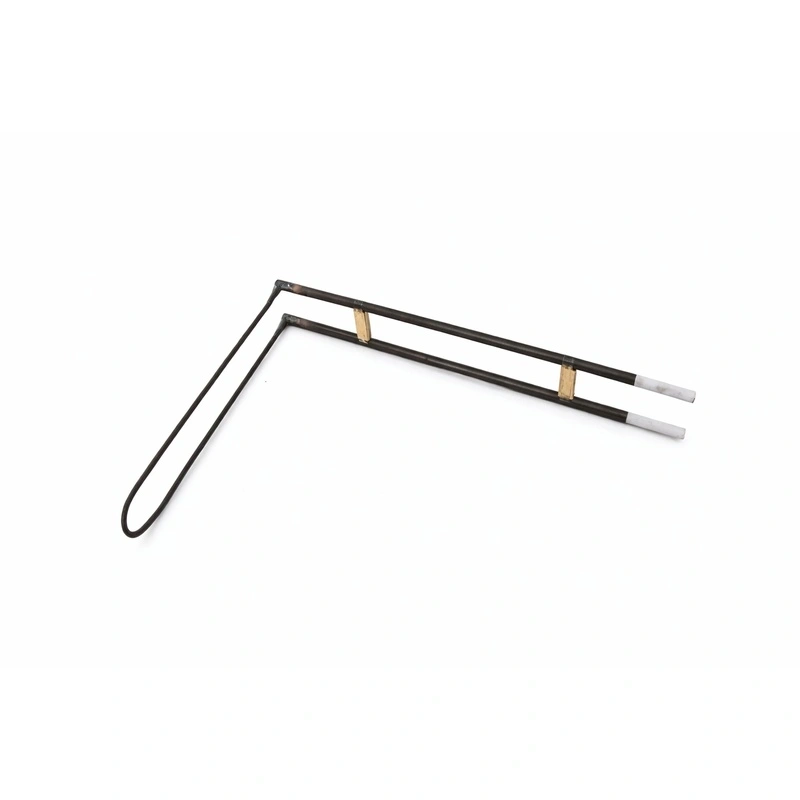

The Molybdenum Disilicide (MoSi2) L-Type Heater is a high-temperature heating element designed for applications requiring a specific angular configuration, similar to an “L”. Manufactured from high-purity MoSi2, this MoSi2 heating element offers a compact and efficient solution for furnaces with complex geometries or limited space. It is a robust option for environments demanding temperatures up to 1850°C, standing out for its excellent oxidation resistance and a prolonged service life. As a high-temperature furnace heating element with an L-shaped design, it is ideal for optimizing heat distribution in corners or specific zones of the heating chamber.
An MoSi2 L-type heater is a type of molybdenum disilicide heating element that features an "L"-shaped physical configuration. This geometry is particularly advantageous for installation in electric furnaces where heating a corner or a section with a change in direction is required, allowing for precise adaptation to the internal contours of the furnace. These MoSi2 heaters for industrial furnaces are known for their ability to withstand high surface loads and for their rapid heating, making them an efficient choice for processes demanding fast heating and cooling cycles and extremely high temperatures. Its MoSi2 composition grants it unique corrosion resistance and high-temperature stability properties in oxidizing environments, surpassing other heating materials.
The MoSi2 L-Type Heater is especially useful in industries and high-temperature processes where the furnace configuration requires heaters with specific shapes to optimize heating:
Laboratory and Experimental Furnaces: Where flexibility in furnace design is crucial for research and development.
Sintering and Heat Treatment Furnaces: For the production of ceramic or metallic components in furnaces with complex internal designs or specific heating zones.
Glass and Ceramic Industry: In furnaces with complex geometries for material processing, where very precise heat distribution in corners or edges is needed.
Electronic Component Manufacturing: In high-precision furnaces for the production of semiconductors and other devices, where space is a critical factor.
Applications with Space Restrictions: Ideal for compact furnaces or where maximizing heating power in a limited volume with directional changes is required.
Main Characteristics
High Operating Temperature: Capable of reaching temperatures up to 1850°C, with optimal performance below 1750°C.
Adapted Geometric Design: The L-configuration allows for precise integration into furnaces with complex shapes, optimizing heat distribution in corners or specific zones.
Excellent Oxidation Resistance: The MoSi2 material forms a protective SiO2 layer at high temperatures, giving it exceptional oxidation resistance in air atmospheres.
High Density and Conductivity: Its high density and good electrical conductivity enable rapid and efficient heating, reducing energy consumption.
Long Service Life: The combination of high mechanical strength, toughness, and corrosion resistance ensures a prolonged service life, even under severe conditions.
Competitive Advantages
Heating Space Optimization: Allows for maximum utilization of the furnace's usable volume, even in difficult geometries with directional changes.
Energy Efficiency: Rapid heating and low energy loss contribute to the reduction of operational costs.
Design Flexibility: Offers customized solutions for furnaces with unique space requirements or heat distribution needs in angular configurations.
Safety and Reliability: High mechanical strength and toughness minimize the risk of breakage during transport and installation.
Improved Thermal Distribution: The L-design helps achieve a more homogeneous temperature in specific or complex zones of the furnace, such as corners.
|
Specification |
Value |
|---|---|
|
Material |
Molybdenum Disilicide (MoSi2) |
|
Maximum Operating Temperature |
1850°C |
|
Recommended Operating Temperature |
≤ 1750°C |
|
Working Temperature in Air |
1700°C |
|
Working Temperature in Nitrogen |
1600°C |
|
Working Temperature in Hydrogen |
1220°C - 1500°C |
|
Density |
5 g/cm³ - 5.6 g/cm³ |
|
Vickers Hardness |
570 kg/mm² |
|
Porosity |
7.4% |
|
Water Absorption |
2% |
|
Thermal Elongation |
4% |
|
Furnace Surface Load |
Up to 100 KW/m² |
Proper storage of MoSi2 L-Type Heaters is essential to preserve their integrity and performance before installation. The following guidelines should be followed:
Dry and Cool Environment: Store the heaters in a dry and cool place, away from moisture and direct heat sources. Moisture can affect the MoSi2 surface in the long term.
Impact Protection: MoSi2 heaters are fragile when cold. Store them in their original packaging or in containers that provide adequate protection against shocks and vibrations.
Horizontal Position: Preferably, store the heaters in a horizontal position to avoid unnecessary stress on the angular sections or joint points.
Away from Contaminants: Avoid contact with corrosive chemicals, metal dust, or any other contaminants that may react with the heater material.
Inventory Control: Use an inventory rotation system to ensure the oldest heaters are used first, although MoSi2 has a very long shelf life if stored correctly.
Careful Handling: Always handle the heaters with clean gloves and avoid direct contact with bare hands to prevent the transfer of oils or dirt.
Correct storage will ensure that the molybdenum disilicide L-type heating elements are in optimal condition when needed for installation.
The service life of an MoSi2 heater can vary significantly depending on operating conditions, such as maximum temperature, furnace atmosphere, frequency of heating and cooling cycles, and installation quality. However, under optimal conditions and with proper maintenance, they can offer thousands of hours of reliable service, often exceeding other types of high-temperature heating elements.
