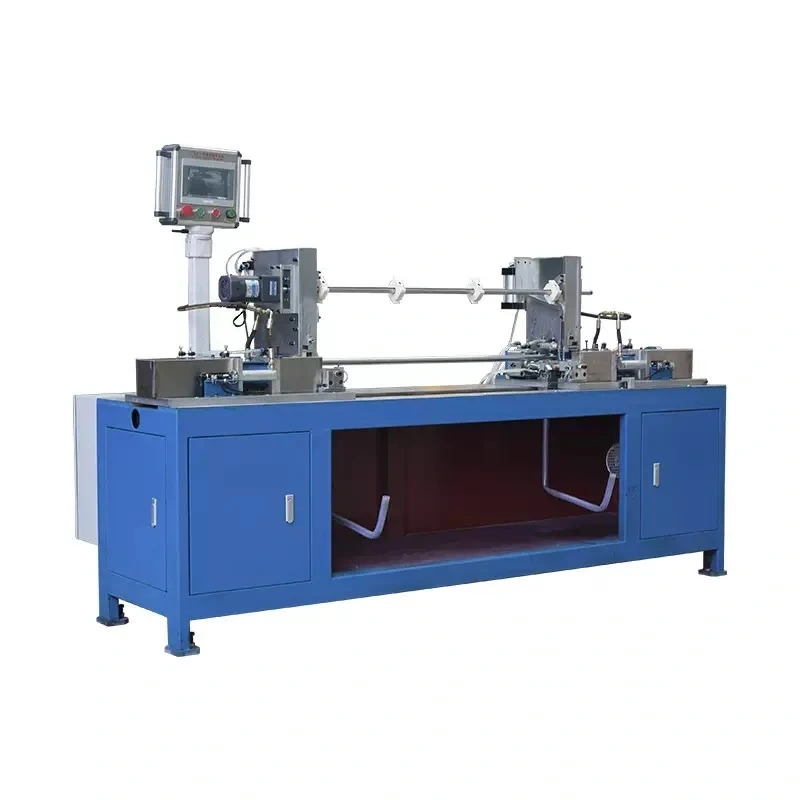

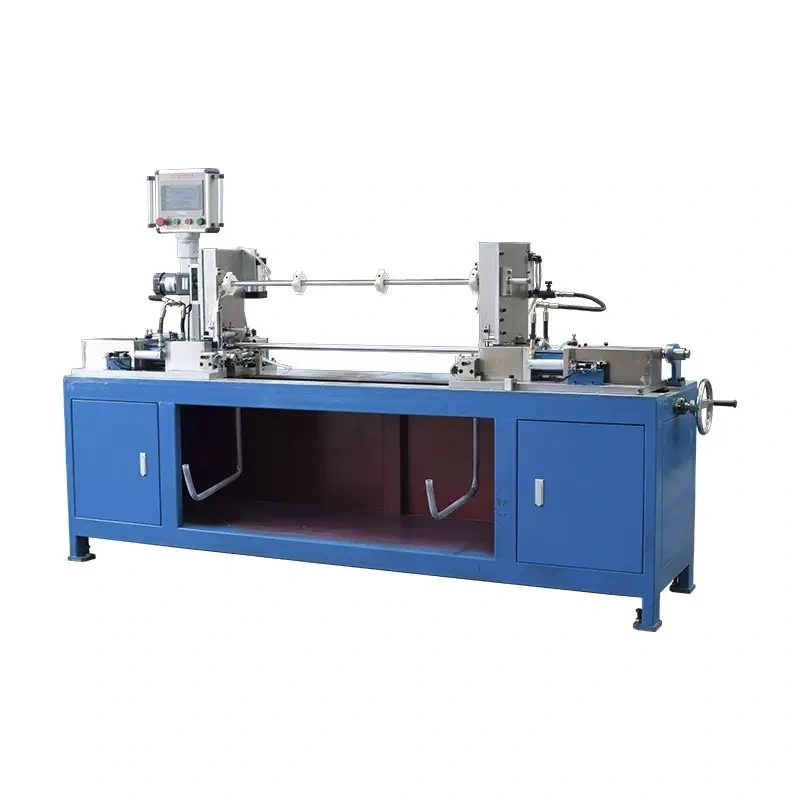

The MT02 double-end automatic turning machine is a high-efficiency equipment designed for the precise finishing of heater tube ends. This automated system operates via an inclined material rack where the heater tubes are placed and organized by a manipulation mechanism. Subsequently, a pneumatic mechanism controls the regular fall of the tubes onto a mandrel, where they are firmly held. A rotating turning tool, driven by a gas-liquid mechanism, moves towards both ends of the tube to perform the cutting and finishing. Finally, the processed tubes are automatically deposited onto a lower support for manual removal. This automatic heater tube cutter is fundamental for guaranteeing uniformity and quality in the final finishing of heating elements.
The MT02 double-end automatic turning machine represents an advanced solution for automation in the metal tube finishing industry for heater manufacturing. This industrial end-facing equipment is designed to optimize efficiency and quality in the heater tube finishing process. By automating the loading, positioning, cutting, and finishing of both ends of the tubes, the MT02 significantly reduces cycle times and dependency on manual labor. It is an automatic lathe for electric heaters that ensures a clean and precise finish, improving the aesthetics and functionality of the final product. For manufacturers looking to maximize productivity and consistency in the automatic processing of heater ends, the MT02 is a strategic investment that guarantees superior results.
The MT02 double-end automatic turning machine offers a series of features and advantages that make it an invaluable asset for the manufacturing of heating elements.
High Efficiency and Automation: The fully automatic design, from feeding to unloading, minimizes manual intervention, accelerating the finishing process and increasing production capacity. This translates into greater profitability and a reduction in operational costs.
Precision Finishing on Both Ends: The ability to turn and face both ends of the tube simultaneously guarantees a uniform, high-quality finish, which is essential for the aesthetics and correct assembly of heater tubes. This end grinding for heating tubes ensures the elimination of burrs and the attainment of clean surfaces.

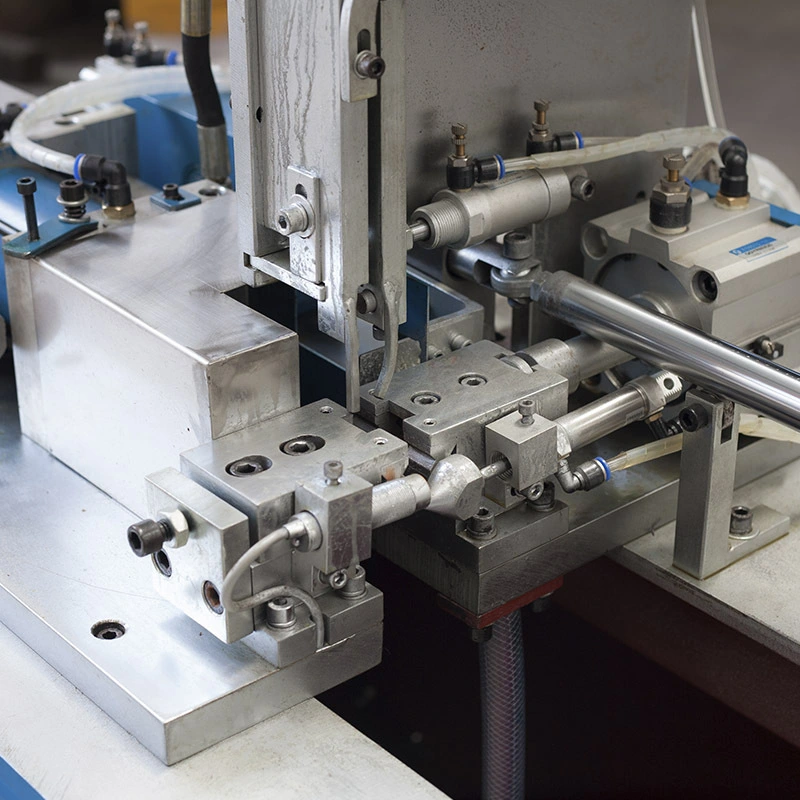

Regular and Safe Material Handling: The manipulation mechanism and pneumatic control ensure that the tubes are positioned precisely and securely on the mandrel, avoiding material damage and guaranteeing operator safety.
Adaptability Versatility: Capable of processing round tubes with lengths of 300 to 2000 mm and diameters of 6.5 to 16 mm, making it suitable for a wide range of heater tubes. This adaptability makes it highly flexible manufacturing machinery for heating elements.
Compact and Robust Design: With a volume of 2000x1000x1500 mm and a weight of 600 KG, the MT02 is a robust machine that integrates easily into any production line, optimizing floor space.
The following specifications detail the capabilities and technical requirements of the MT02 double-end automatic turning machine, an essential piece of equipment for heater tube end finishing.
|
Parameter |
Specification |
|---|---|
|
Adaptable Tube Type |
Round Tube |
|
Processing Capacity |
|
|
- Tube Length |
300 - 2000 mm |
|
- Tube Diameter |
6.5 - 16 mm |
|
Control and Operation |
|
|
- Control Mechanism |
Pneumatic and Gas-Liquid |
|
- Process |
Automatic loading, clamping, double-end turning and finishing, automatic unloading |
|
Physical and Electrical Characteristics |
|
|
- Power |
0.55 KW x 2 (1.1 KW total) |
|
- Voltage |
Three-Phase 380V / Three-Phase 220V / Single-Phase 220V |
|
- Volume (L x W x H) |
2000 x 1000 x 1500 mm |
|
- Weight |
600 KG |
The finishing of heater tube ends is a critical detail that directly impacts the quality, aesthetics, and functionality of the final product. The MT02 double-end automatic turning machine plays a fundamental role in optimizing the finish in heater production, ensuring that every heating element presents an impeccable termination. A precise finish not only improves the product's appearance but also facilitates assembly in final applications and prevents issues such as moisture ingress or corrosion at the ends. For manufacturers looking to differentiate themselves in the market, investing in a high-quality automatic heater tube cutter like the MT02 is essential. By highlighting the importance of precision finishing in electric heaters and industrial aesthetics, companies can attract clients who value excellence in every detail. The MT02 contributes to brand reputation by guaranteeing that every heater tube meets the highest standards of quality and presentation.
The implementation of the MT02 double-end automatic turning machine not only drives operational efficiency but also significantly improves safety in the industrial end-turning process. By automating repetitive and potentially dangerous tasks, personnel exposure to moving machinery and cutting tools is reduced. This translates into a safer work environment and a decrease in workplace accidents. Automation in the metal tube finishing process allows for continuous and consistent operation, minimizing human error and optimizing production line performance. For companies that prioritize safety in heater manufacturing and efficiency in industrial processes, the MT02 is a comprehensive solution. Its design, which includes pneumatic mechanisms for tube handling and a gas-liquid system for tool movement, guarantees a smooth and controlled operation, resulting in increased productivity and a reduction in risks associated with manual handling of parts and cutting tools.
The MT02 is a versatile industrial end-facing solution that allows for the attainment of high-quality finishes, which are fundamental for subsequent sealing and assembly stages. The processes it performs include:
Precision Facing: Perfectly perpendicular cutting of the metal sheath to ensure an exact length.
External and Internal Chamfering: Removal of burrs and smoothing of edges, which prevents damage to insulators and facilitates the insertion of plugs or resins.
End Cleaning: Preparation of the surface for welding or terminal crimping more efficiently.
Dimensional Uniformity: Guarantees that both ends of the heater tube are identical, improving the aesthetics and functionality of the final product.
