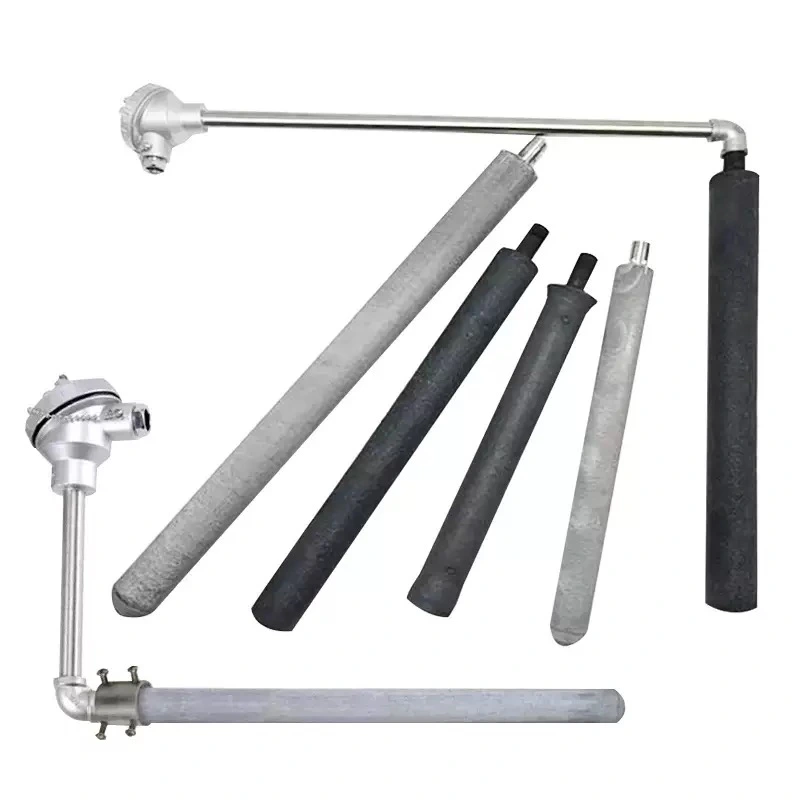

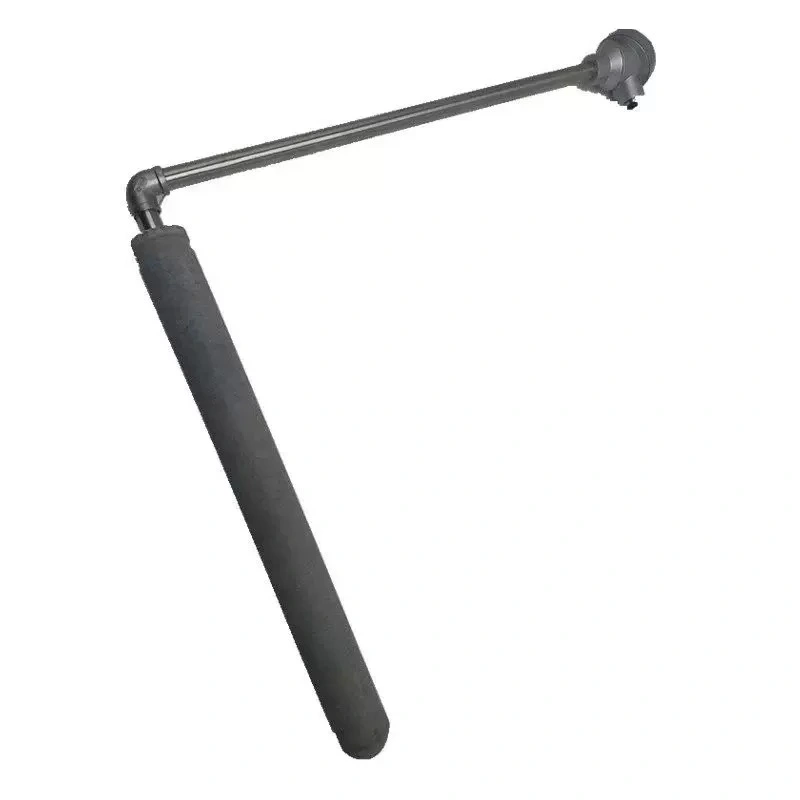

Silicon nitride thermocouple protection tubes represent an advanced and robust solution for precise temperature measurement in extreme industrial environments. Manufactured from silicon nitride (Si3N4), a high-performance technical ceramic, these thermocouple protection sheaths are distinguished by their exceptional resistance to high temperatures, thermal shock, corrosion, and wear. Their chemical composition and microcrystalline structure confer superior stability against oxidation and the aggression of molten metals, slags, and corrosive gases, making them indispensable thermocouple accessories in processes where other ceramic or metallic materials would fail prematurely. This silicon nitride ceramic protective tube ensures the integrity and prolongs the service life of the thermocouple sensing element, guaranteeing reliable and continuous measurements in the most challenging conditions.
The silicon nitride thermocouple sheath is designed to provide an unparalleled protective barrier. Its low wettability by non-ferrous molten metals, such as aluminum, zinc, and magnesium, prevents adhesion and contamination, a critical factor in the foundry industry. Furthermore, the excellent thermal shock resistance of the silicon nitride tube allows its direct immersion into molten metal baths without the risk of fracture due to sudden temperature changes. These thermocouple protection tubes are the result of advanced manufacturing processes that guarantee high density, low porosity, and a uniform microstructure, translating into superior performance and greater durability in critical applications. They are the optimal choice for industries demanding reliability and precision in temperature monitoring under severe conditions.
Silicon nitride thermocouple protection tubes are essential in a wide range of industrial applications where resistance to extreme conditions is paramount. Their superior performance makes them ideal for:
Non-Ferrous Metal Casting Industry: Extensively used as a thermocouple protection sheath in melting and holding furnaces for aluminum, zinc, magnesium, and their alloys. Their resistance to wettability by the molten metal and to corrosion by slags guarantees precise measurements and a long service life for the thermocouple. They are crucial in degassing processes and in the direct measurement of liquid metal temperature.
Chemical and Petrochemical Processes: In highly corrosive environments where acids, alkalis, and other chemical agents can rapidly degrade conventional materials, the silicon nitride tube offers robust protection for temperature sensors.
Industrial Furnaces and Heat Treatments: In high-temperature furnaces, sintering furnaces, and heat treatment processes, where precise and continuous measurements are required at elevated temperatures and in controlled or aggressive atmospheres.
Glass and Ceramics Industry: For temperature monitoring in glass melting tanks and ceramic firing kilns, where resistance to high temperatures and corrosion by molten materials is fundamental.
Incinerators and Power Plants: In combustion systems and boilers, where high temperatures and the presence of corrosive gases demand thermocouple protection materials of maximum resistance.
The inherent properties of silicon nitride confer upon these thermocouple protection tubes a series of distinctive features and advantages:
Exceptional Resistance to High Temperatures: Capable of operating continuously at temperatures up to 1200°C in air and up to 1400°C in controlled atmospheres, while maintaining their structural integrity and mechanical properties.
High Thermal Shock Resistance: The low coefficient of thermal expansion and high thermal conductivity of the silicon nitride ceramic protective tube allow it to withstand sudden and rapid temperature changes without cracking or fracturing, which is crucial for direct immersion in molten metals.
Excellent Corrosion Resistance: Immune to most acids, alkalis, salts, and molten metals, including aluminum, zinc, and magnesium. This property ensures a long service life in aggressive chemical environments and prevents contamination of metal baths.
Low Wettability by Molten Metals: The silicon nitride tube is not wetted by non-ferrous molten metals, which prevents slag adhesion and the formation of layers that could affect measurement accuracy and tube durability.
High Hardness and Wear Resistance: With a Vickers hardness of 14-16 GPa, these thermocouple protection tubes offer excellent resistance to abrasion and mechanical wear, prolonging their service life in demanding industrial environments.
Superior Chemical Stability: Maintains its composition and properties in the presence of reactive gases and corrosive atmospheres, guaranteeing consistent performance over time.
Measurement Precision and Reliability: By effectively protecting the thermocouple from adverse conditions, these thermocouple accessories contribute to obtaining more stable, precise, and reliable temperature measurements, reducing the need for frequent recalibrations or replacements.
The following technical specifications are representative of high-quality silicon nitride thermocouple protection tubes. Exact values may vary slightly depending on the specific material grade and manufacturing process.
|
Technical Property |
Unit |
Typical Value (GPSN) |
Notes |
|---|---|---|---|
|
Main Composition |
- |
Si3N4 |
Silicon Nitride |
|
Density |
g/cm³ |
3.2 - 3.4 |
High density for maximum strength and low porosity. |
|
Porosity |
% |
< 0.1 |
Virtually non-porous, ideal for molten metal environments. |
|
Flexural Strength |
MPa |
600 - 800 |
At room temperature, indicating high mechanical strength. |
|
Hardness (Vickers) |
GPa |
14 - 16 |
Excellent abrasion and wear resistance. |
|
Thermal Conductivity |
W/(m·K) |
15 - 30 |
Allows for fast thermocouple response and good thermal shock resistance. |
|
Coefficient of Thermal Expansion (20-1000°C) |
x 10⁻⁶/°C |
3.0 - 3.4 |
Very low, fundamental for thermal shock resistance. |
|
Maximum Use Temperature (Air) |
°C |
1200 |
Recommended maximum temperature in oxidizing atmospheres. |
|
Maximum Use Temperature (Controlled Atmosphere) |
°C |
1400 |
Recommended maximum temperature in inert or reducing atmospheres. |
|
Thermal Shock Resistance |
ΔT (°C) |
> 1000 |
Ability to withstand large and rapid temperature changes. |
|
Corrosion Resistance |
- |
Excellent |
Against molten metals (Al, Zn, Mg), slags, and most chemicals. |
We offer a wide range of silicon nitride thermocouple protection tubes to adapt to various needs and thermocouple configurations. The models differ in their dimensions, end types, and mounting options, ensuring compatibility with most industrial temperature measurement systems. Customization of dimensions is available upon request for specific applications.
Our silicon nitride thermocouple protection tubes meet the highest quality and performance standards, backed by ISO 9001:2015 certification, guaranteeing product reliability and consistency.
|

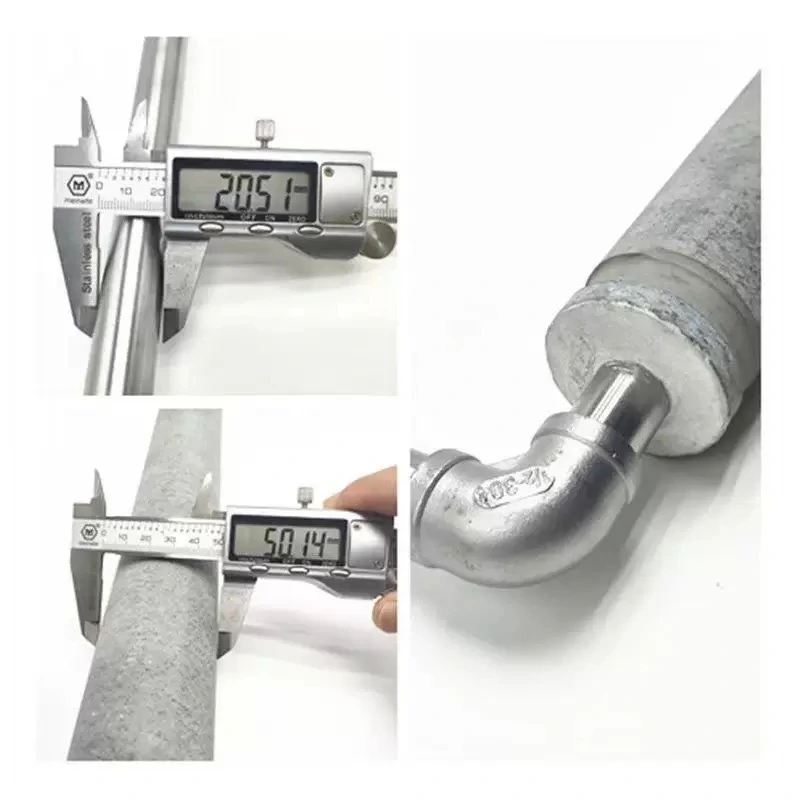

Dimension |
Typical Range (mm) |
Notes |
|---|---|---|
|
Outer Diameter (OD) |
16 - 45 |
Wide variety to accommodate different thermocouple diameters and process openings. |
|
Inner Diameter (ID) |
8 - 25 |
Designed to house thermocouples of various gauges. |
|
Length |
300 - 1600 |
Standard and custom lengths to cover a wide range of immersion depths. |
|

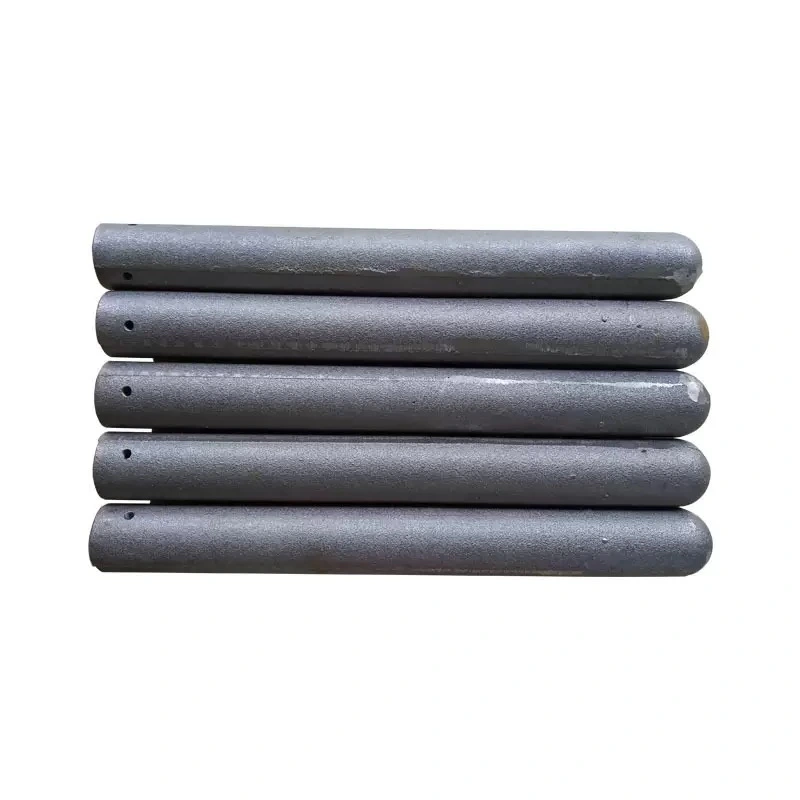

End Type |
Closed (One End Closed) |
The most common design for complete thermocouple protection. |
|
Open |
For specific applications requiring flow or direct contact. |
|
|

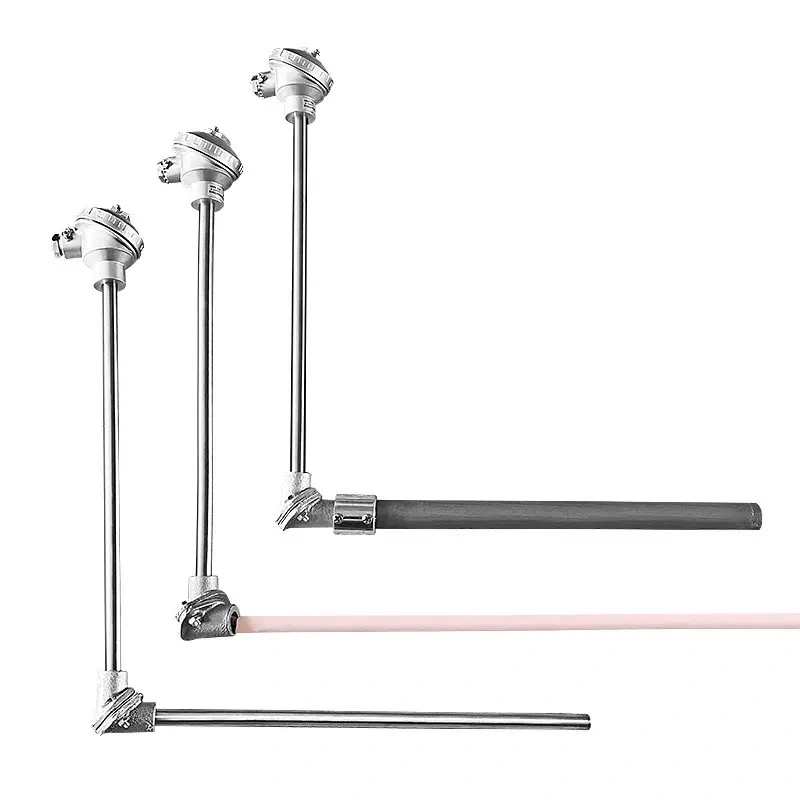

Mounting Options |
With Flange |
Facilitates installation and sealing in vessels or pipes. |
|
Threaded |
For secure fastening and easy replacement. |
|
|
Plain |
For mounting via compression or custom clamping systems. |
The service life of a silicon nitride protection tube is significantly superior to that of conventional ceramic or metallic materials, especially in aggressive industrial environments. Thanks to the inherent properties of silicon nitride (Si3N4), such as its exceptional thermal shock resistance, its high corrosion resistance to molten metals and slags, and its remarkable wear resistance, these thermocouple accessories can operate reliably for extended periods. In aluminum casting applications, where cast iron or silicon carbide tubes can degrade rapidly, a silicon nitride thermocouple protection sheath can extend its durability from weeks to several months, and even over a year, depending on the specific operating conditions, immersion temperature, and presence of contaminants. This durability of the Si3N4 thermocouple sheath translates into a drastic reduction in maintenance and replacement costs, as well as greater reliability in temperature measurement, fully justifying the initial investment in this advanced technical ceramic.
