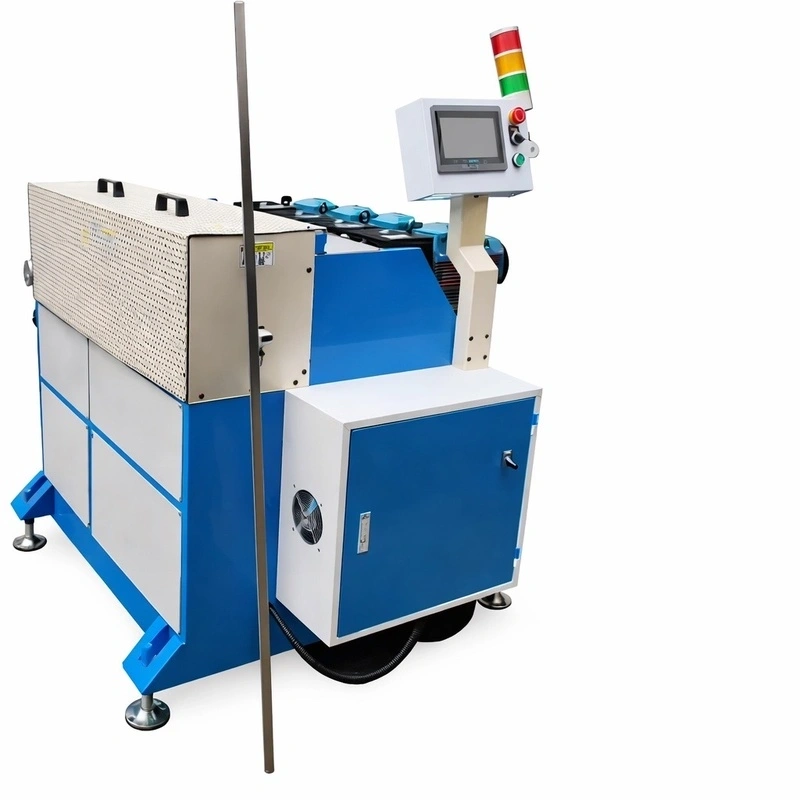

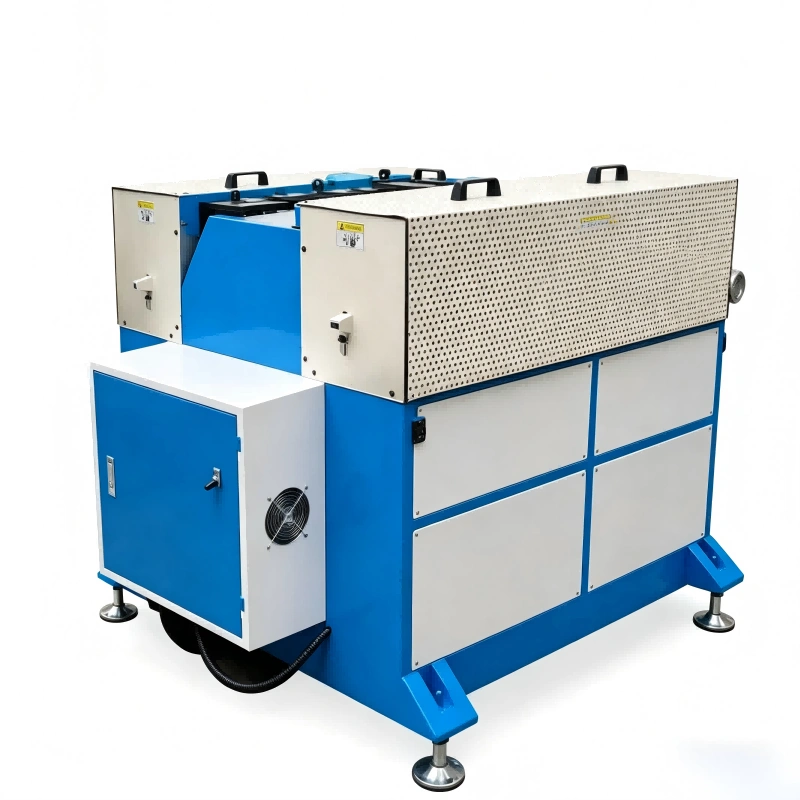

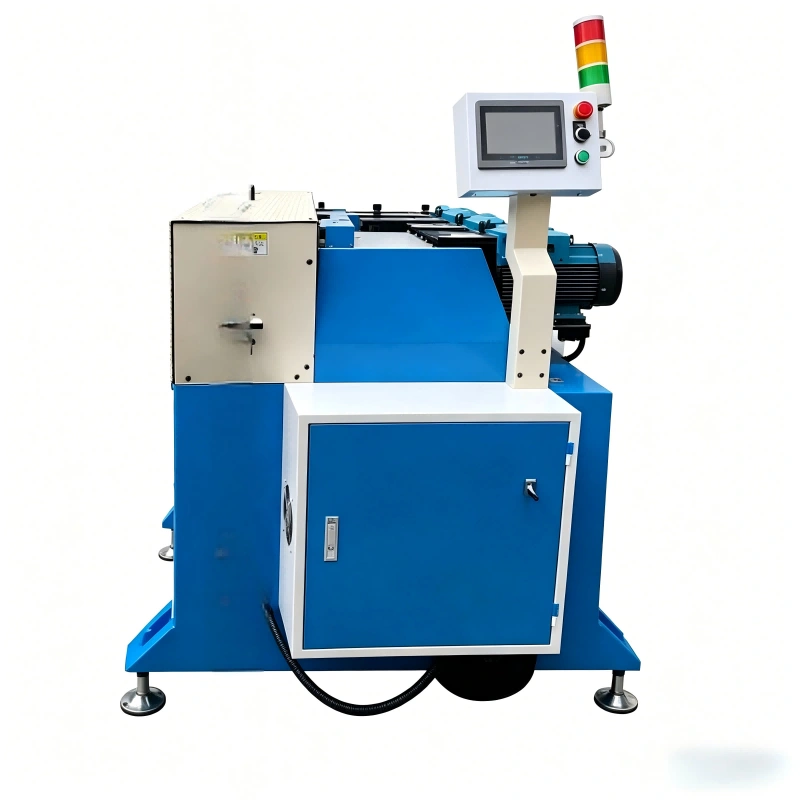

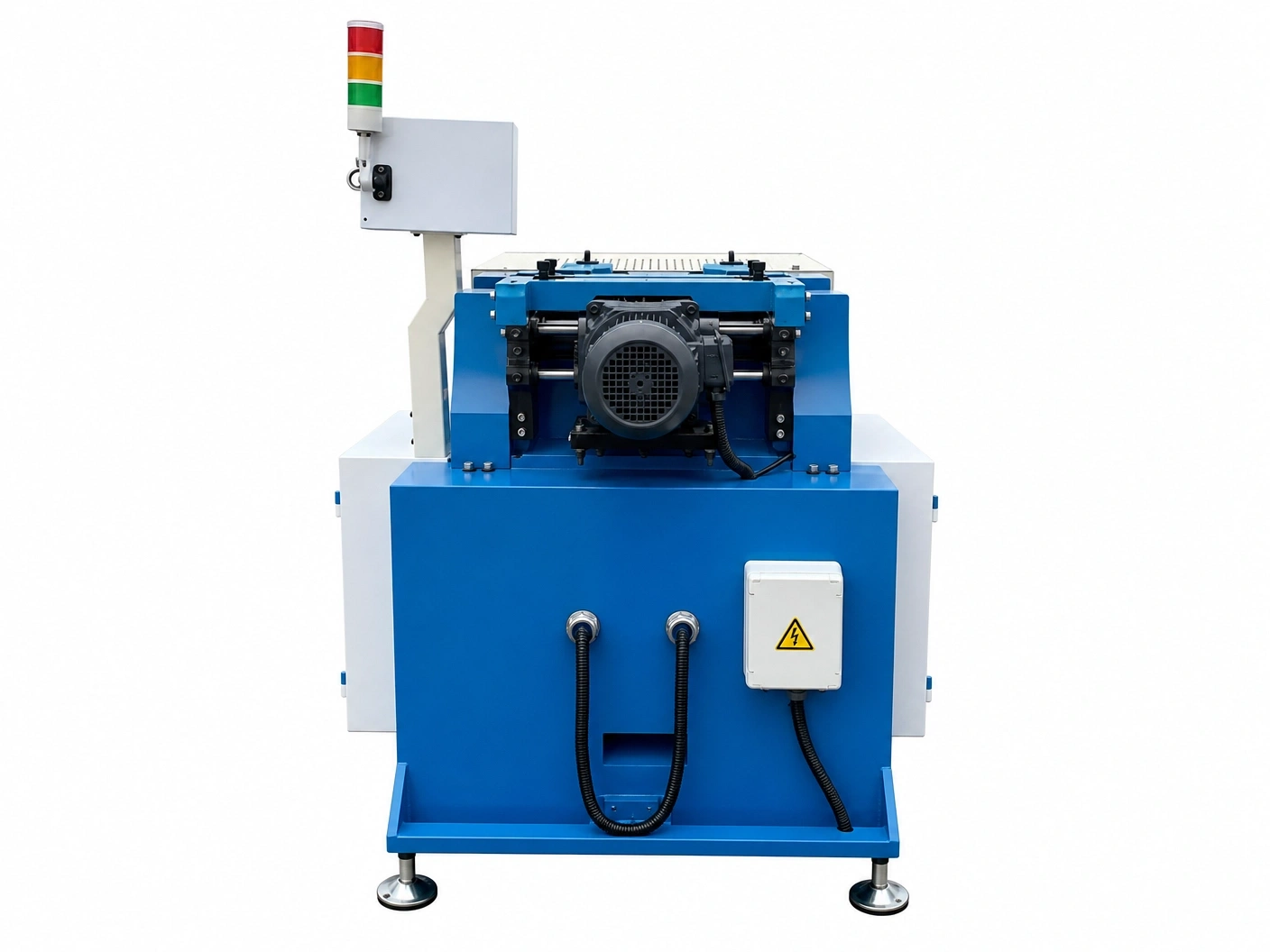

Built on an integral cast iron bed, the HTR-210 Rolling Machine undergoes a 72-hour high-temperature tempering treatment to relieve stress, granting it exceptional rigidity and resistance. This robustness guarantees stable, deformation-free operation, which is fundamental for maintaining rolling precision over time. The pressure roller spindle head, a unified structure, incorporates sliding blocks and an adjustment body cut with thread, achieving a diameter adjustment precision of 0.03 mm. It features a fine adjustment dial and a return-to-zero capability for simple calibration. The gearbox of the rolling mill motor offers differential and constant speeds, adapting to specific tube and customer requirements. The HTR-210 is compatible with a wide range of metallic tube materials and can process square, flat, rectangular, and round shapes via mold changes, offering unmatched versatility in the production of industrial electric heaters.
The HTR-210 Rolling Machine represents a significant advancement in the manufacturing of flat heaters and special-shaped oven tubes. Designed to overcome the efficiency limitations of traditional methods, this machine employs a multi-stage continuous rolling process. This approach guarantees a gradual and uniform diameter reduction, resulting in superior MgO powder compaction. The outcome is a flat heater with exceptionally high insulator density, impeccable straightness, and superior dimensional stability. The HTR-210 is the ideal tool for manufacturers seeking to maximize magnesium oxide density in their tubular heating elements, ensuring optimal heat transfer and an extended lifespan for the final product.
The HTR-210 Rolling Machine stands out due to a set of performance features that position it as a superior solution for electric heater compaction:
Unmatched Stability and Durability: Thanks to its integral cast iron bed with a 72-hour tempering treatment, the machine offers exceptional rigidity and resistance, guaranteeing stable and precise long-term operation even under intense workloads.
Advanced Rolling Precision: The design of the pressure roller spindle head, featuring wire-cut sliding blocks, allows for a diameter adjustment precision of 0.03 mm, ensuring uniform compaction and an exact dimensional finish for flat heaters.
Variable Speed Roller System: The gearbox of the rolling mill motor offers two speed types (differential and constant), optimizing tube extensibility and adapting to different diameters and compaction requirements.
High-Strength Rolling Tools: The rolling dies are manufactured with high-quality steel and cemented tungsten carbide, guaranteeing superior durability and consistent performance even with demanding tube materials.
Intelligent Automatic Stop Function: Equipped with an automatic stop system that activates in case of tube jamming, protecting the machine and material from potential damage and minimizing downtime.
Ergonomic and Efficient Design: With a compact size, low noise level, and fast, convenient adjustments, the HTR-210 is easy to operate and maintain, making it ideal for modern production environments.
Material and Shape Versatility: Suitable for rolling a wide range of metallic tube materials and capable of processing square, flat, rectangular, and round shapes via mold changes, offering exceptional production flexibility.
Full Frequency Conversion Operation: Incorporates a full frequency conversion system, allowing precise speed control and optimizing power consumption, contributing to a more efficient and sustainable operation.
The HTR-210 Rolling Machine is indispensable in the manufacturing of heating elements that require precise insulator compaction and specific shapes. Its main applications include:

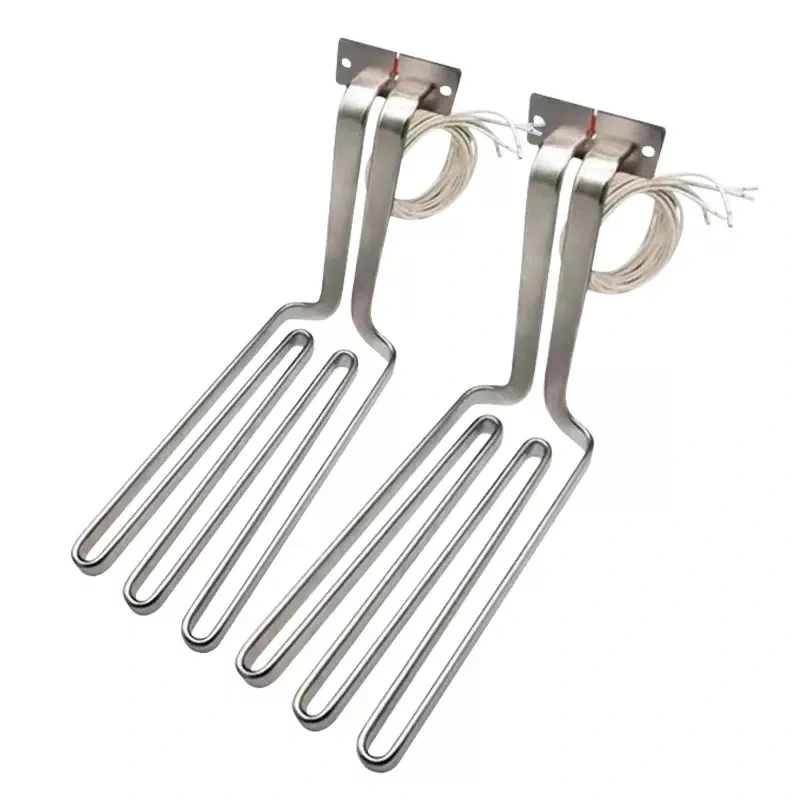

Flat Heaters: Fundamental for the production of flat heaters used in industrial applications such as thermal presses, packaging machinery, and heating surfaces where uniform heat distribution is needed.
Special-Shaped Oven Tubes: Ideal for the manufacture of heaters for industrial ovens and processing equipment that utilize non-round geometries, such as rectangular or square tubes.
High-Density Cartridge Heaters: Although specialized in flat forms, its MgO compaction capability is applicable to cartridge heaters that require extreme density for optimal performance.
Appliance Heating Elements: Used in the production of components for high-end appliances that demand efficiency and durability, such as flat irons, ovens, and grills.
|
Technical Parameter |
Value / Range |
|---|---|
|
Model |
HTR-210 |
|
Rolled Tube Diameter (Flat) |
25x9 mm - 25.4x6.5 mm |
|
Maximum Diameter Before Rolling (Round) |
Φ30 mm |
|
Minimum Processing Length |
120 mm |
|
Rolling Speed |
10 meters per minute (approx.) |
|
Straightness After Rolling |
1:350 |
|
Roundness After Rolling |
0.06 mm |
|
Power Supply |
Three-phase 380V, 50Hz |
|
Power |
27 KW |
|
Number of Die Sections |
12 sections |
|
Motor Gearbox |
Numerical control, constant speed, differential speed |
|
Machine Dimensions (L x W x H) |
1600 x 1200 x 1100 mm |
|
Weight |
1700 KG |
To adapt the HTR-210 Rolling Machine to your specific production requirements, we offer various customization options and accessories:
Interchangeable Die Materials: Availability of rolling dies manufactured from high-strength steel and cemented tungsten carbide, allowing the selection of the optimal material based on tube hardness and desired lifespan.
Advanced Control Systems: Integration of PLC with HMI touch screen for intuitive programming of rolling parameters, real-time monitoring, and storage of production recipes, optimizing the production of flat electric heaters.
Loading/Unloading Automation: Options to incorporate automatic tube feeding and unloading systems, increasing efficiency and reducing manual intervention in high-volume production lines.
Enhanced Cooling Systems: Possibility of forced-air or liquid cooling systems for applications requiring stricter thermal control during the rolling process.
Voltage and Frequency Configurations: Adaptation of the electrical system to different international standards (e.g., 220V/60Hz, 440V/60Hz) for global implementation.
Special Shape Molds: Development of custom molds to process tubes with non-standard geometries, such as oval, square, or rectangular shapes, expanding the machine's versatility and its application in industrial heaters.
Dimensional precision is the most critical factor in the manufacture of flat heaters, as it determines contact heat transfer. Our HTR-210 machine guarantees:
±0.03 mm Tolerance: Thanks to its spindle head with high-precision wire-cut sliding blocks, a constant thickness is achieved along the entire length of the tube.
Fine Dial Adjustment: Allows millimeter-level calibration to adapt to each client's exact specifications, ensuring the heater fits perfectly into grooves of thermal presses or heating plates.
Surface Uniformity: By maintaining precise thickness, "hot spots" caused by poor thermal contact are eliminated, extending the life of the heating element.
