HT-B5 Spiral Resistance Bending Machine - Heatecx Limited

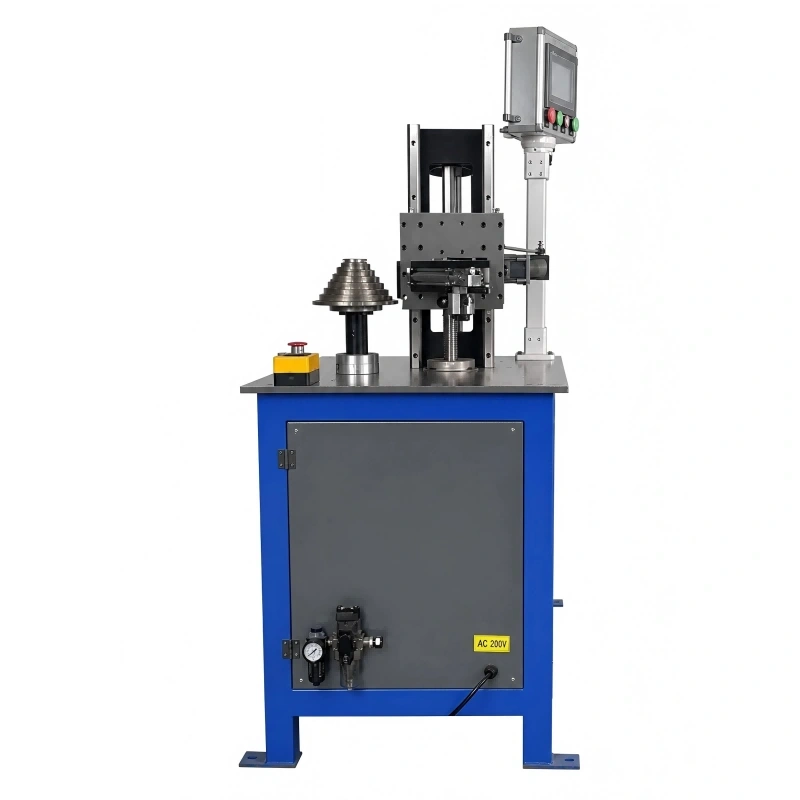

The HT-B5 Tube Bending Machine is a high-performance industrial equipment specifically designed for bending and forming tubes. This versatile tube bending machine specializes in creating complex shapes such as spirals, convolutions (coils), full circles, and semicircles. Its design is based on an interchangeable mold system that allows the operator to quickly and easily switch between different bending types, adapting to production needs with unprecedented agility. The entire operation is governed by a programmable logic controller (PLC), which guarantees millimeter precision, perfect repeatability in each piece, and high production efficiency, minimizing manual intervention and errors.

Tube Bending Machine​
Versatile tube bending machine​
High-performance industrial equipment
Bending and forming tubes​
sample-155
sample-156

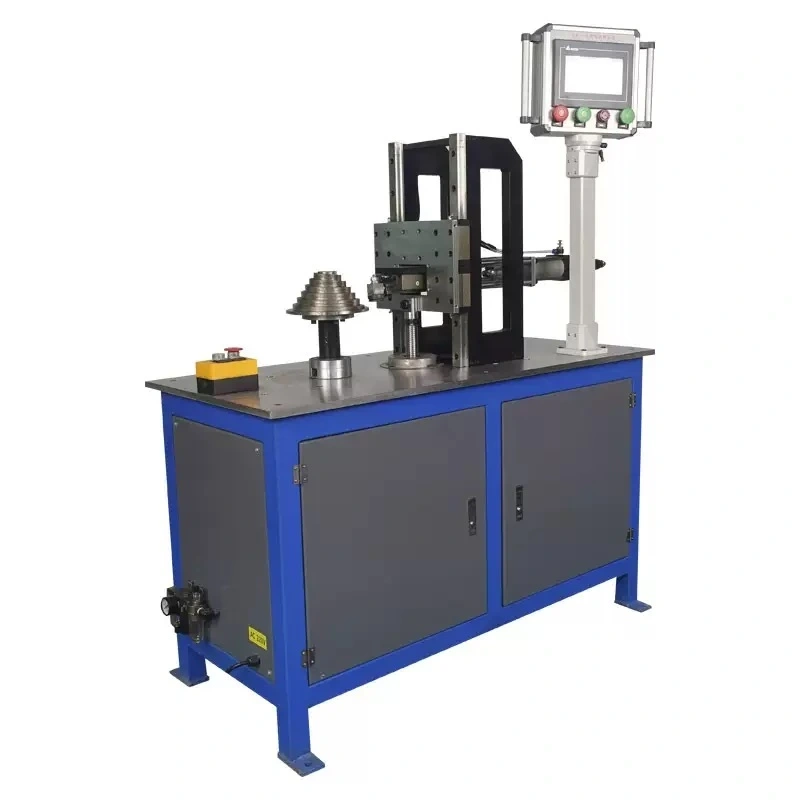

HT-B5 Spiral Resistance Bending Machine

The HT-B5 Tube Bending Machine is a high-performance industrial equipment specifically designed for bending and forming tubes. This versatile tube bending machine specializes in creating complex shapes such as spirals, convolutions (coils), full circles, and semicircles. Its design is based on an interchangeable mold system that allows the operator to quickly and easily switch between different bending types, adapting to production needs with unprecedented agility. The entire operation is governed by a programmable logic controller (PLC), which guarantees millimeter precision, perfect repeatability in each piece, and high production efficiency, minimizing manual intervention and errors.

Contact Us

The HT-B5 PLC-controlled Tube Bender is the definitive solution for companies looking to automate and optimize the manufacturing of tubular components with specific geometries. If your process requires the serial production of spiral electric resistances, heat exchanger coils, or any component that needs precise circular bending, this machine is your best ally. Forget about slow and imprecise manual processes. Thanks to its robust mold system and powerful 2KW motor, the HT-B5 transforms straight tubes into high-quality final products continuously and reliably. It is a strategic investment to increase production capacity, reduce labor costs, and ensure a superior quality standard in each manufactured piece.

The versatility of the HT-B5 Bending Machine makes it indispensable in a multitude of sectors. Its main application and where it truly stands out is in:
Manufacturing of Tubular Electric Resistances: This machine is the quintessential tool for shaping tubular electric resistances. It allows bending the metal tube containing the insulating material and the resistive wire into the geometric shapes required for its final application. It is ideal for creating:

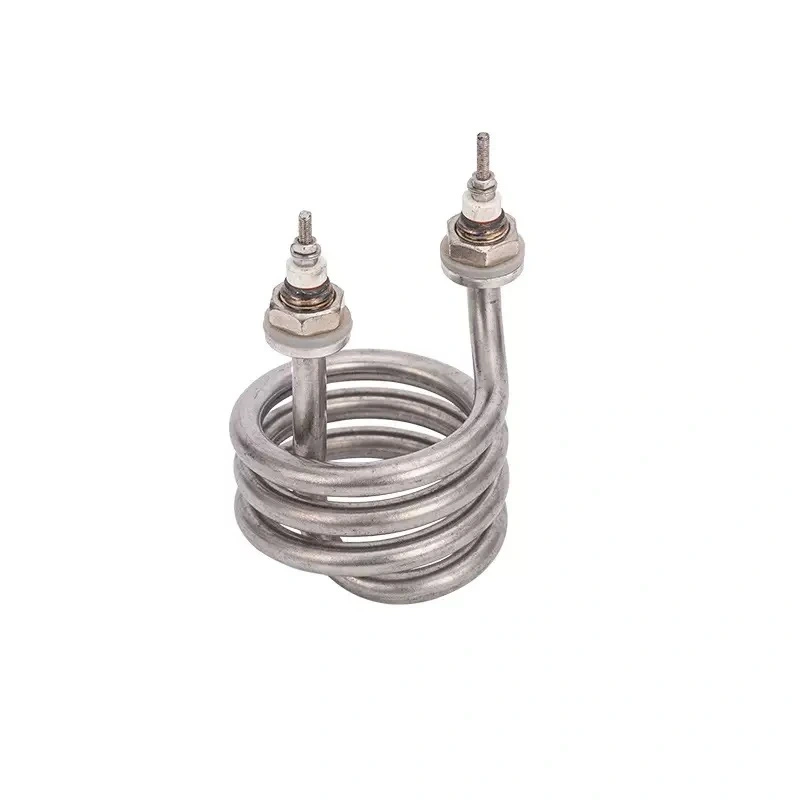

  • Spiral resistances for ovens and air heating systems.

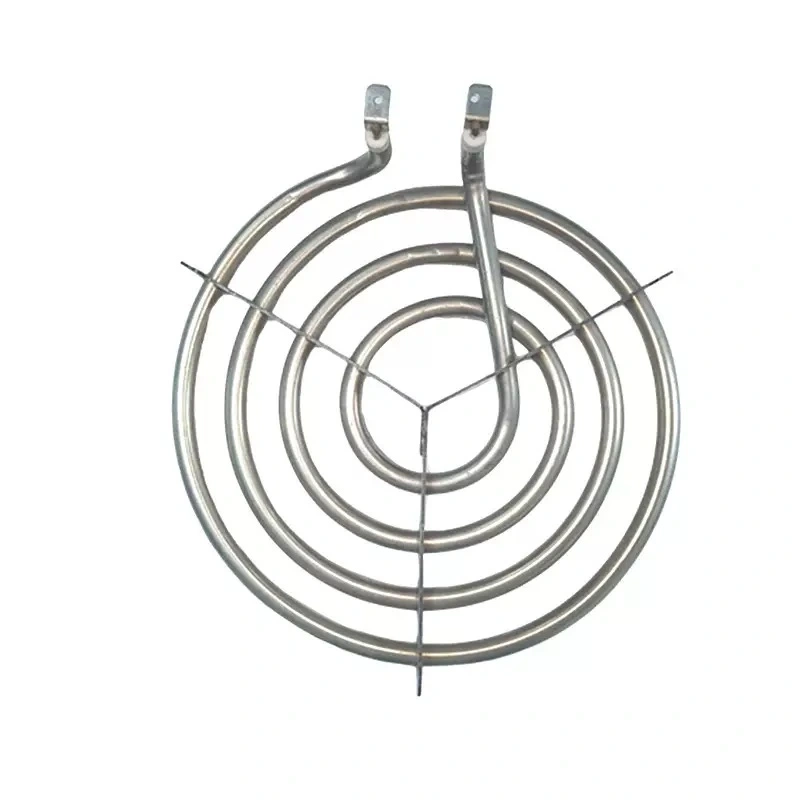

  • Circular and semicircular resistances for plates, grills, and heating bases.
  • Coils (convolutions) for immersion heaters and flow systems.
Other Industrial Applications:
  • HVAC-R Industry: Manufacturing of coils for small heat exchangers, evaporators, and condensers.
  • Automotive Sector: Bending small diameter pipes for brake lines, fuel, or hydraulic systems.
  • Metal Furniture: Creation of decorative and structural components with circular or spiral shapes.
  • Medical Equipment: Manufacturing of components for instruments and equipment that require precisely shaped tubing.
  • High Versatility: Capable of performing multiple types of bending (spiral, circular, semicircle, coil) in a single machine simply by changing the mold.

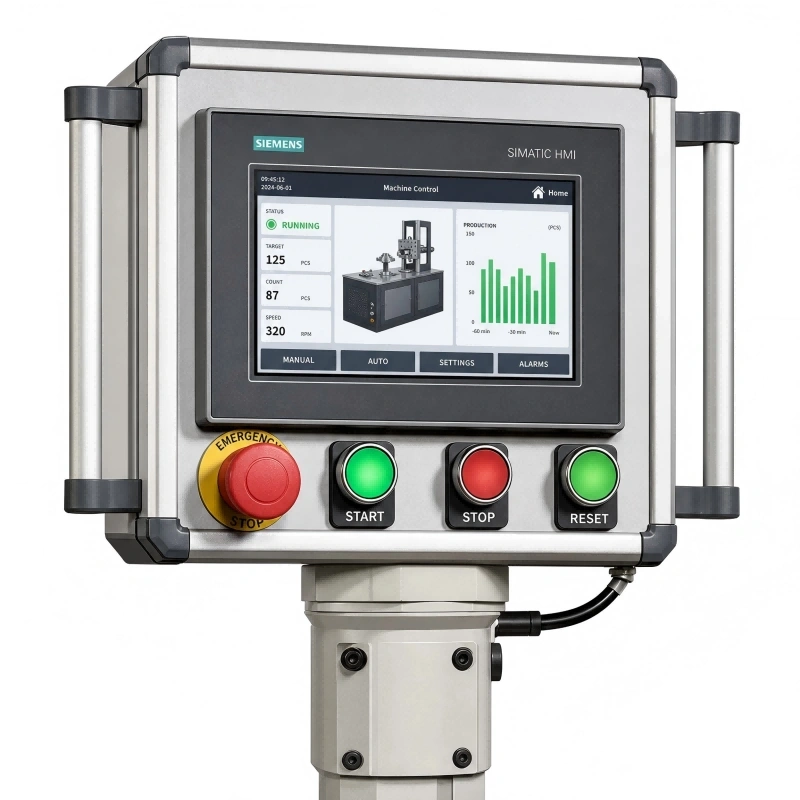

  • Total PLC Control: The PLC control system guarantees maximum precision, consistency, and repeatability in serial production, eliminating deviations inherent in manual work.
  • High Production Efficiency: Designed for automation, it drastically reduces cycle times and increases daily production volume.
  • Ease of Operation: Mold change is a quick and intuitive process, allowing production to be reconfigured for different products with minimal downtime.
  • Robust Construction: With a weight of 300 kg and a solid chassis, the machine is built to withstand long hours of continuous work, ensuring a long service life.
  • Quality Finish: Performs clean and precise bends without damaging the tube surface, guaranteeing a final product of high aesthetic and functional quality.
Feature
Specification
Model
HT-B5
Bending Functions
Spiral, Convoluted (Coil), Circular, Semicircular
Permissible Tube Diameter
5 mm – 10 mm
Control System
PLC (Programmable Logic Controller)
Motor Power
2 KW
Operating Voltage
Three-phase 380V / Three-phase 220V / Single-phase 220V (configurable)
Dimensions (L x W x H)
1600 x 1200 x 1000 mm
Net Weight
300 KG
Investing in the HT-B5 tube bending machine is a strategic decision for any company looking to lead the market in the manufacturing of tubular components. If you are looking for operations such as "how to bend electrical resistances," "machine for making coils," or "CNC spiral tube bender," you have found the definitive solution.
Unlike manual or semi-automatic bending machines, the HT-B5 offers complete automation thanks to its PLC control, which directly translates into:
  • Cost Reduction: Minimizes the need for specialized operators and almost completely eliminates material waste due to human errors.
  • Increased Production: Its high speed and efficiency allow you to accept higher volume orders and meet tighter delivery times.
  • Consistent Quality: Each piece is identical to the previous one, guaranteeing a quality standard that your customers will notice and value.
The HT-B5 is not just a machine; it is a competitive advantage that will position your company one step ahead of the competition.
