This industrial polisher is an essential tool for various industries and applications requiring high-quality finishes on metal components. Its main applications include:

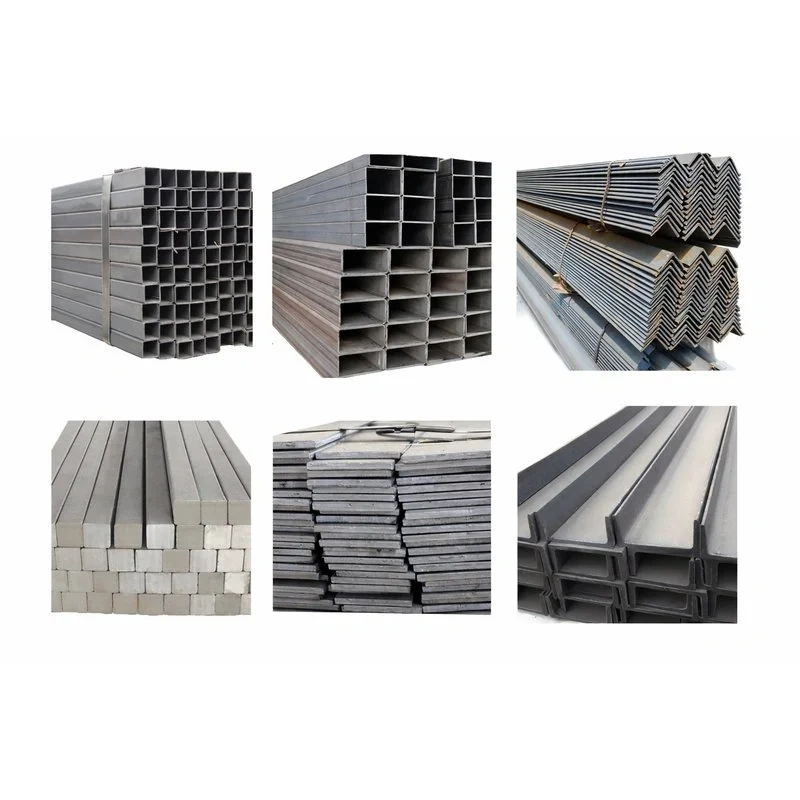

• Metal Structure Manufacturing:​ Polishing of square and rectangular tubes used in the construction of frames, supports, and decorative elements, guaranteeing superior aesthetics and corrosion resistance.

• Furniture Industry:​ Finishing of metal components for furniture, such as table legs, chairs, and shelves, achieving smooth and shiny surfaces.

• Automotive and Transportation:​ Polishing of parts and metal profiles for vehicles, improving their appearance and durability.

• Architecture and Decoration:​ Creation of mirror or satin finishes on architectural and decorative stainless steel elements, such as railings, handrails, and cladding.

• Machinery Manufacturing:​ Preparation of surfaces on machinery components to improve their functionality and wear resistance.

• Food and Pharmaceutical Industry:​ Polishing of stainless steel to meet strict hygiene and cleanliness standards, avoiding residue accumulation.

• Naval Construction:​ Finishing of metal profiles and tubes for vessels, where corrosion resistance and aesthetics are crucial.

Main Features:

• High-Performance Copper Motor:​ Equipped with a 4 KW motor at 2800 rpm, guaranteeing constant power and excellent heat dissipation, which translates to greater longevity and efficiency.

• Continuous Speed Regulation (Inverter):​ Allows adjustment of the feed speed from 1 to 12 meters per minute, adapting to different materials and finish requirements.

• Wide Processing Range:​ Capable of polishing pieces with dimensions from 1x1 cm to 10x10 cm, offering great flexibility.

• High Polishing Precision:​ Achieves a precision of 0.05 mm, ideal for fine and high-quality finishes.

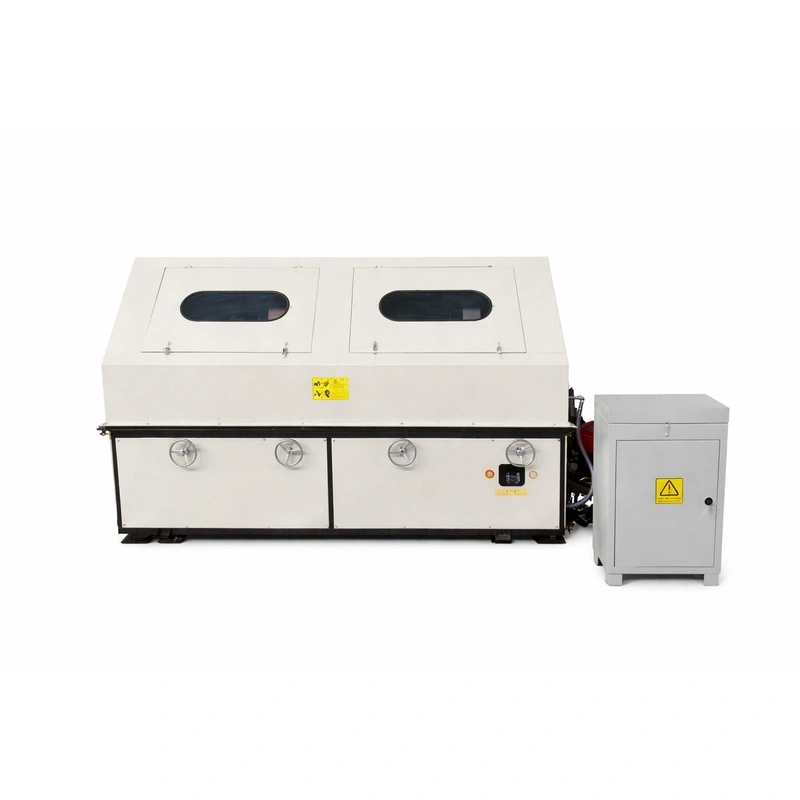

• Ergonomic and Safe Design:​ Includes an intuitive control panel, material entry port, polishing wheel adjustment handles, and transparent, liftable protective covers for operator safety.

• Integrated Dust Extraction System:​ Contributes to a cleaner and safer work environment, reducing exposure to metal particles.

• Robust Construction:​ With a weight of 900 KG and dimensions of 1800x1400x1500 mm, the machine is stable and durable, designed for intensive industrial use.

Advantages:

• Superior Efficiency:​ A single machine can perform the work of up to 10 operators, significantly reducing labor costs and increasing productivity.

• Consistent Finish Quality:​ High precision and speed control guarantee uniform and high-quality results on every piece.

• Material and Shape Versatility:​ Allows polishing a wide variety of metals and profiles, making it adaptable to multiple projects.

• Safe and Clean Operation:​ Safety features and the dust extraction system protect the operator and keep the work area organized.

• Time and Cost Savings:​ Automation of the polishing process accelerates production and minimizes material waste.

• Durability and Reliability:​ High-quality components ensure prolonged operation and low maintenance.

The versatility of this metal flat surface polisher allows for obtaining diverse finishes, adapting to the aesthetic and functional demands of each project. Below is a general guide to achieve the most common results:

• Coarse Polishing (Grinding):​ Use coarse-grit abrasive wheels (e.g., 250 mm diameter with P80-P120 grit). Adjust the feed speed to a medium range (6-8 m/min) to quickly remove surface imperfections, burrs, and weld marks. This step is fundamental to prepare the surface before fine finishing.

• Medium Polishing (Satin):​ For a uniform satin finish, use medium-grit wheels (e.g., 250-300 mm diameter with P180-P320 grit). The feed speed should be moderate (4-6 m/min). This process reduces grinding marks and creates a soft, matte texture, ideal for applications seeking an elegant appearance without excessive shine.

• Fine Polishing (Pre-Mirror):​ With fine-grit wheels (e.g., 300 mm diameter with P400-P600 grit) and a slower feed speed (2-4 m/min), a very smooth surface with initial shine is achieved. This step is crucial to eliminate any trace of previous abrasion and prepare the metal for the mirror finish.

• Mirror Polishing (High Gloss):​ To obtain a flawless mirror polish, use cloth or felt polishing wheels with high-gloss polishing compounds. The feed speed should be the lowest (1-2 m/min), and several passes may be required. This final process confers a sharp reflection and mirror appearance, highly demanded in luxury products and decorative applications.

The choice of wheel type, abrasive grit, and feed speed are key factors in controlling the final outcome. It is recommended to perform tests on sample pieces to optimize parameters according to the specific material and desired finish.

The following table details the technical specifications of the Industrial Polishing Machine for Tubes and Metal Profiles:

Note: Dimensions are reference measurements; the final product may vary according to each project.

To adapt to the specific needs of each client and further optimize performance, the Industrial Polishing Machine for Tubes and Metal Profiles offers various options and customization possibilities:

• Automated Feeding Systems:​ Integration with automatic loading and unloading systems for high-volume production, minimizing manual intervention.

• Additional Polishing Modules:​ Possibility to add polishing stations for multi-stage processes or to work with different types of abrasives simultaneously.

• Advanced Filtration Systems:​ Options for higher-capacity air filters or specific technologies for environments with stricter cleanliness requirements.

• Computer Numerical Control (CNC):​ Implementation of CNC systems for even more precise control of polishing parameters and automation of complex sequences.

• Adapters for Special Profiles:​ Development of custom tooling and adapters for polishing profiles with non-standard geometries or delicate materials.

• Integration with Production Lines:​ Compatibility to be integrated into existing production lines, facilitating a continuous workflow.

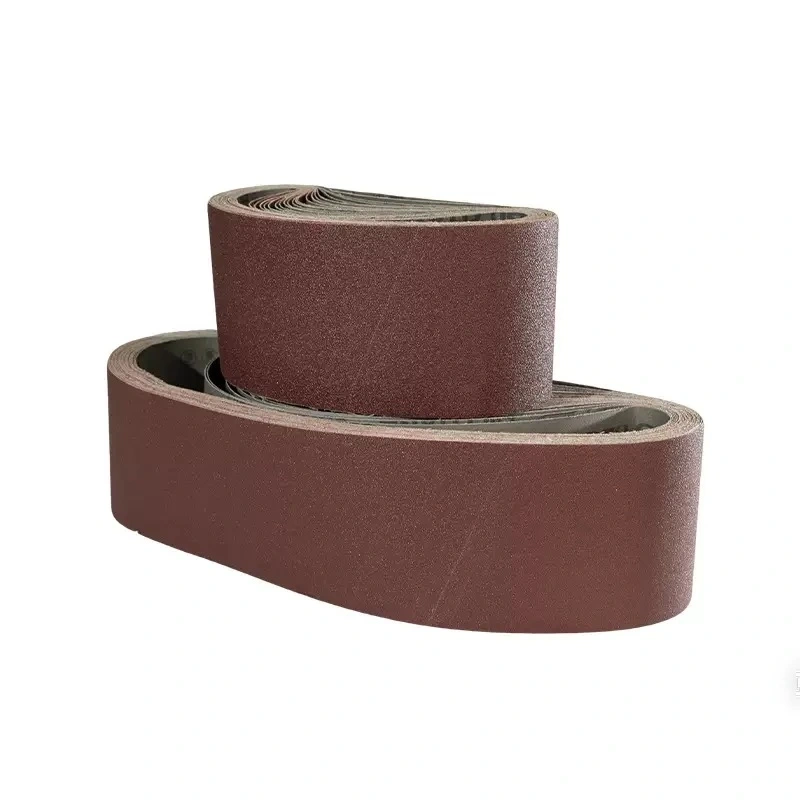

• Specific Consumables:​ Advice and supply of grinding wheels, abrasives, and polishing compounds optimized for the type of metal and finish desired by the client.

• Custom Voltage and Frequency:​ Adaptation of the electrical system to the voltage and frequency standards of different regions or countries.

These options allow users to configure a polishing solution that perfectly fits their operational and production requirements, maximizing efficiency and finish quality.
