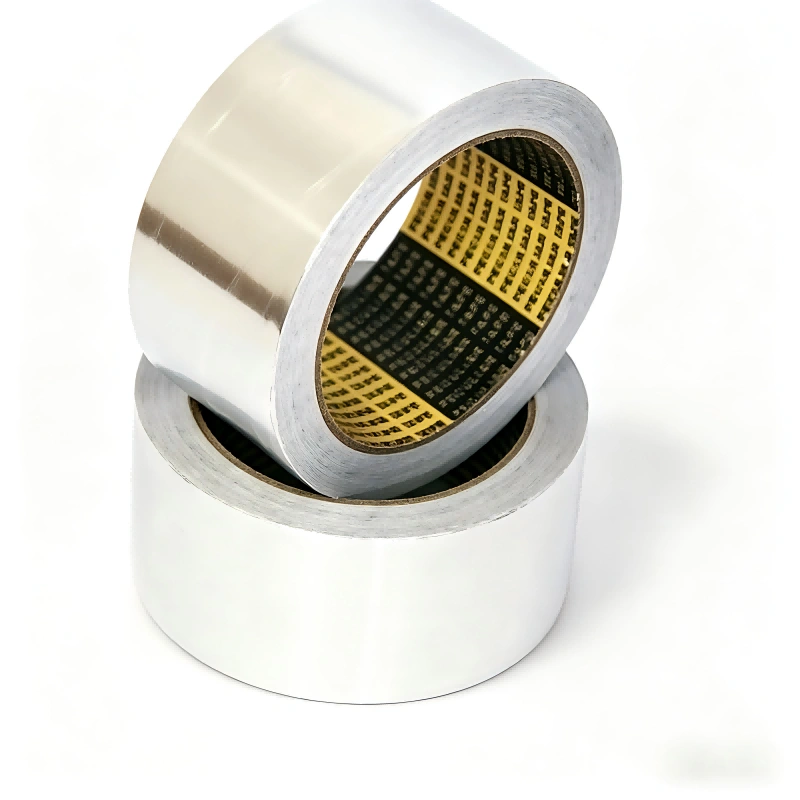

Aluminum Foil Tape (For Heat Tracing Systems)

Aluminum Foil Tape (For Heat Tracing Systems)

Aluminum foil tape is made by coating a special adhesive onto an aluminum foil substrate. It is specifically designed for Heat Tracing​ systems, providing reliable adhesion, thermal conductivity, and protection.

Contact Us

This product is a tape composed of an aluminum foil substrate and a special high-performance adhesive composite. In Heat Tracing​ systems, after the heating cable is installed, this tape is tightly applied along the direction of the cable onto the surface of pipes or tanks, playing a key role in heat distribution, protection, and auxiliary fixation.

Final installation in Heat Tracing​ systems, applied to the surface of pipes or tanks to cover the heating cable.

  • Excellent Thermal Conductivity:​ The aluminum foil substrate effectively diffuses heat from the heating cable, ensuring uniform temperature on the pipe surface and improving system thermal efficiency.

  • Reliable Adhesion and Sealing:​ The special adhesive ensures strong bonding to metal surfaces of pipes, tanks, or insulation layers, preventing moisture and corrosive media ingress.

  • Electromagnetic Shielding:​ The aluminum foil substrate can provide good electromagnetic shielding, protecting the heating cable from interference.

  • Substrate Protection:​ The aluminum foil can reflect part of the radiant heat and provide physical protection to the outer jacket of the heating cable.

  • Weather and Temperature Resistance:​ The aluminum foil substrate features moisture and corrosion resistance. Combined with a heat-resistant adhesive, it adapts to the operating temperature of Heat Tracing​ systems and complex environments.

  • Product Name:​ Aluminum Foil Tape (For Heat Tracing)

  • Substrate:​ Aluminum Foil

  • Thickness:​ Common 0.05mm - 0.08mm (Customizable)

  • Adhesive:​ Acrylic pressure-sensitive adhesive or rubber-based pressure-sensitive adhesive (Heat-resistant type)

  • Total Thickness (including adhesive):​ Approx. 0.08mm - 0.12mm

  • Common Widths:​ 50mm, 100mm (Customizable)

  • Common Roll Lengths:​ 20 meters, 33 meters, 50 meters (Customizable)

  • Color:​ Natural aluminum color (Silver)

  • Operating Temperature Range:​ Long-term resistance from -20°C to +120°C (Depending on the specific adhesive model)

  • Adhesive Strength (to steel):​ ≥ 1.2 N/cm (Typical value)

  • Elongation at Break:​ < 3%

  • Application Method:​ Apply tightly along the laying direction of the Heat Tracing​ cable onto the surface of the pipe or tank.

  • Specification Customization:​ Aluminum foil tape can be customized with different thicknesses, widths, and roll lengths as needed.

  • Performance Customization:​ Adhesives with different temperature resistance grades and tack levels can be provided to meet specific temperature or surface energy requirements.

  • Special Treatment:​ Special coating treatments can be applied to the aluminum foil surface to enhance corrosion resistance or stability in specific environments.

  • Packaging:​ Different core diameters, slit lengths, and packaging methods can be provided according to customer requirements.

FAQ

This product is primarily composed of an aluminum foil substrate and a special high-performance adhesive coated onto it.
