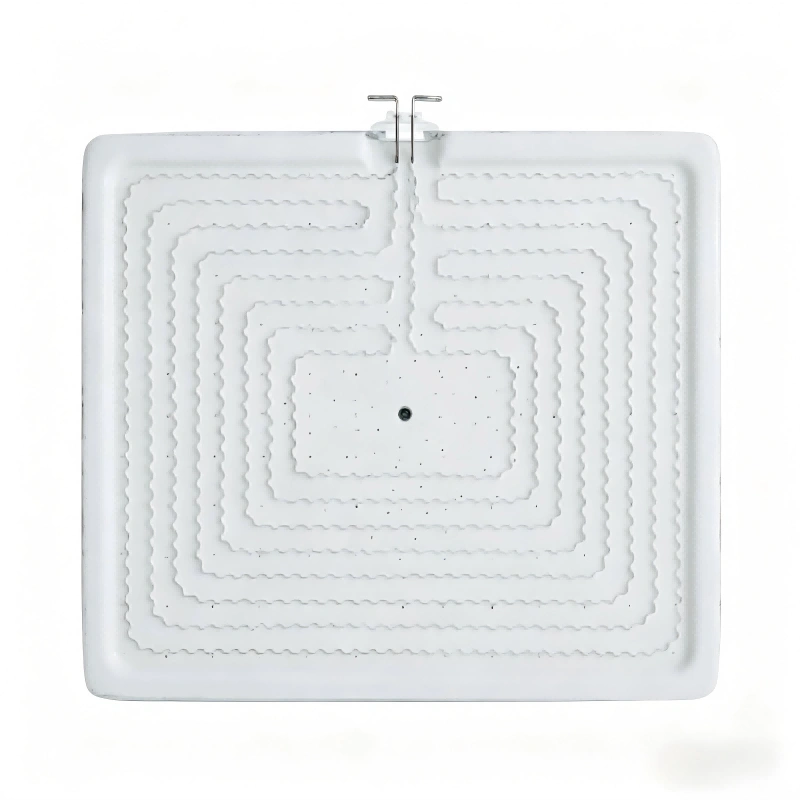

Infrared ceramic panel
Precision industrial oven

Ceramic Plate for IR Radiant Oven

Our state-of-the-art Ceramic Plate has been specifically designed for IR radiant oven systems and electric ceramic stoves, offering superior thermal efficiency and exceptionally uniform heat distribution. Manufactured with high-purity technical ceramics and cordierite components, this plate guarantees optimal thermal resistance, allowing for fast and safe heating in applications that require flameless combustion or heat transfer by direct contact. It is the essential component for manufacturers looking to integrate cutting-edge technology into multi-head ovens and high-performance cooking systems.

Contact Us

At the base of each infrared ceramic panel lies meticulous engineering that combines the durability of ceramic glass with the efficiency of a ceramic infrared burner. Whether for a fire boiler or a sophisticated tea stove, our plates provide a stable cooking surface resistant to thermal shock. The honeycomb ceramic plate design maximizes the surface area for optimal infrared radiation, ensuring that every portable cooking surface or electric kettle base operates with maximum precision and energy savings.

The versatile design of our panels allows for their implementation in a wide range of industrial and domestic sectors:
Sector
Main Applications
Home Appliances
Ceramic stoves, electric kettle bases, portable cooking surfaces, and domestic ovens.
Thermal Industry
Multi-head tunnel ovens, multi-zone heating systems, and precision industrial ovens.
Security and Energy
Fire boilers and gas radiant panel heating systems.
Hospitality
Professional tea stoves and contact temperature maintenance equipment.
•Superior Infrared Efficiency: Thanks to the honeycomb ceramic plate structure, a constant infrared heat emission is achieved that penetrates deeply, reducing cooking time and energy consumption.
•Extreme Thermal Resistance: The use of ceramic glass for stoves and heat-resistant glass panels allows it to withstand sudden temperature changes without deformation or cracking.
•Advanced Safety: Flameless combustion technology and integrated control systems (thermostats and thermocouples) guarantee safe operation in any environment.
•Uniform Distribution: Ideal for multi-zone heating systems, where temperature precision is critical for the quality of the industrial process.
•Extended Durability: The cordierite plate composition offers an extended lifespan even under intensive use in tunnel ovens.
Below are the technical specifications of our product line. All models feature temperature control via thermostat or thermocouple depending on the configuration.
Model
Power (W)
Diameter/Dimensions (mm)
Voltage (V)
Outlets
Control
CX-F165C
1200W
165mm
100-240V
4
Thermostat
CX-F200C
1700W
200mm
100-240V
4
Thermostat
CX-F230C
2100W
230mm
100-240V
4
Thermostat
CX-T165R
1200W
165mm
100-240V
2
Thermostat
CX-T180R
1500W
180mm
100-240V
2
Thermostat
CX-T200R
1800W
200mm
100-240V
2
Thermostat
CX-T200R(D)
1700W
200mm
100-240V
3
Thermostat
CX-T200R(S)
1700W
200mm
100-240V
3
Thermostat
CX-T230R
2200W
230mm
100-240V
2 / 3
Thermostat
CX-T230R(S)
2100W-2300W
230mm
100-240V
2
Thermostat
CX-T250R(S)
2000W
250mm
100-240V
2
Thermostat
CX-T250R(D)
3000W
250mm
100-240V
3
Thermostat
CX-T300R
2400W-3300W
300mm
100-240V
2
Thermostat
CX-T300R(D)
2400W-3000W
300mm
100-240V
3
Thermostat
CX-T300R(T)
2400W-3000W
300mm
100-240V
4
Thermostat
CX-RT130R
800W-1300W
130mm
100-240V
2
Thermocouple
CX-RT165R
1200W
165mm
100-240V
2
Thermocouple
CX-RT200R
1800W
200mm
100-240V
2
Thermocouple
CX-RT230R
2000W-2200W
230mm
100-240V
3
Thermocouple
CX-T270R
1800W
270mm
100-240V
3
Thermostat
CX-T285R
2200W
285mm
100-240V
3
Thermostat
CX-T435R
3600W
435mm
100-240V
6
Thermostat
CX-T335R
1700W
335x280mm
120V
2
Thermostat
We understand that every industrial project has unique requirements. Therefore, we offer a comprehensive OEM/ODM service:
•Custom Dimensions: Adaptation of the ceramic panel and ceramic glass plate size according to your chassis design.
•Power Configuration: Adjustment of watts and voltage to comply with international regulations or specific heating needs.
•Control Systems: Option to integrate different types of thermostats, thermocouples, or multi-zone temperature sensors.
•Zone Design: Configuration of multiple heating circuits on a single plate for precision ovens.

FAQ

Standard CX series models use a thermostat for cycle-based temperature control, ideal for domestic applications and tea stoves. CX-RT models integrate a high-sensitivity thermocouple, allowing for continuous and precise temperature monitoring, making them the preferred choice for precision industrial ovens and advanced digital control systems.
