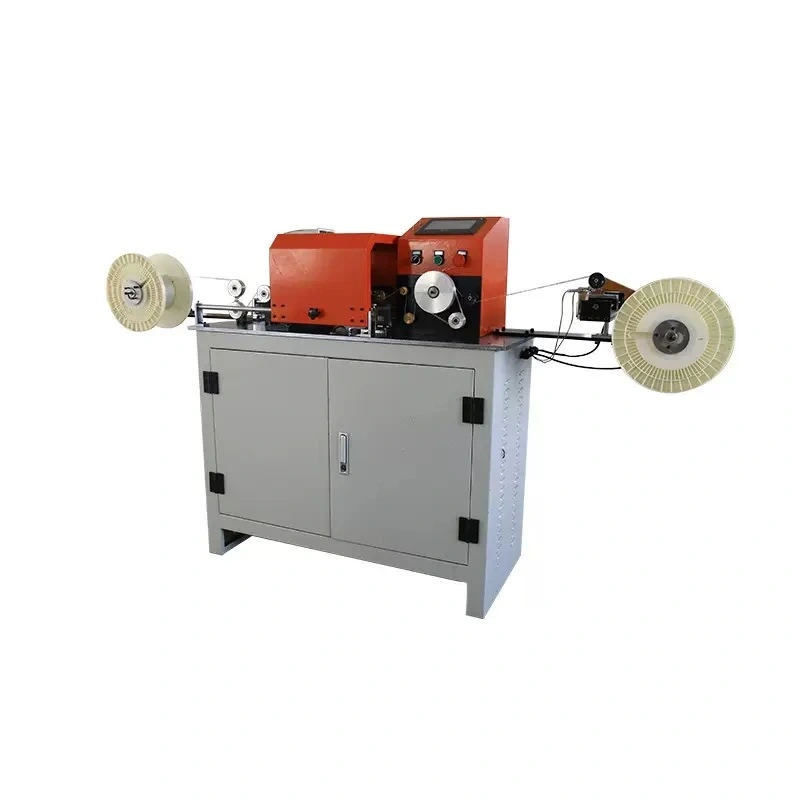

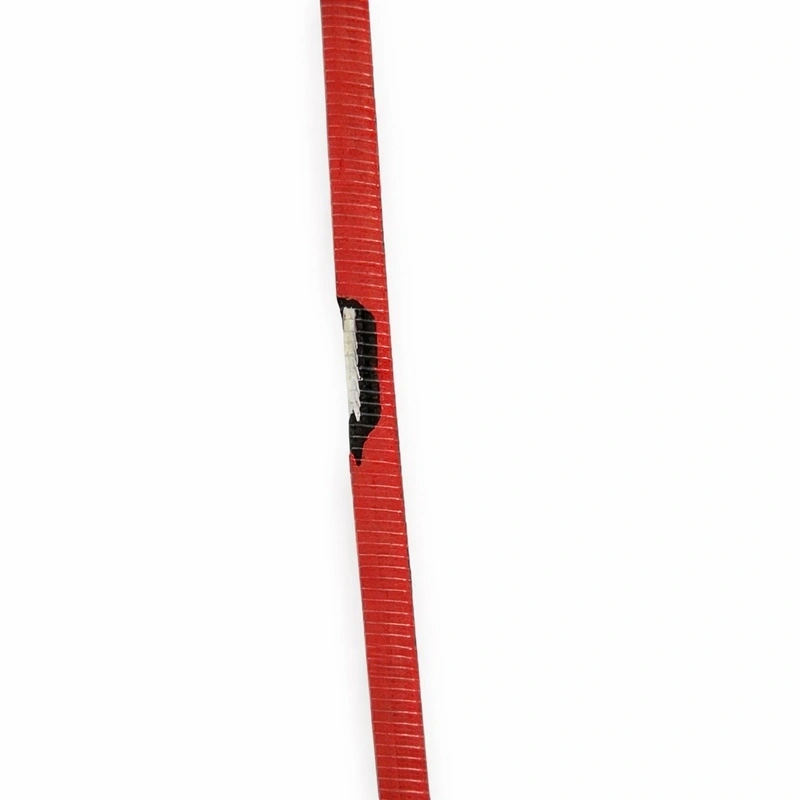

Setting up a CNC winder for resistance wire, especially for the production of constant wattage heat traces, requires precision and a clear understanding of winding pitch programming. To achieve an exact pitch and precision winding, follow these key steps:

Material Preparation: Ensure the resistance wire meets the diameter and material specifications. The wire winding machine must be equipped with the appropriate accessories for the wire gauge.

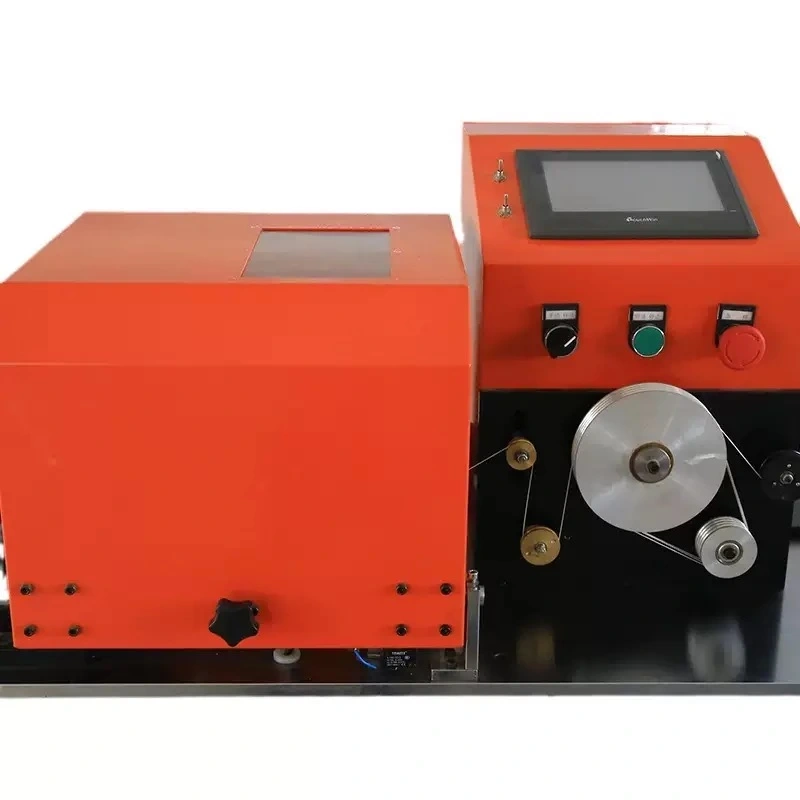

Interface Access: Use the HMI (Human-Machine Interface) of the automatic CNC winder. These modern interfaces allow for easy navigation through configuration parameters.

Winding Pitch Programming: In the winding parameters section, enter the desired value for the pitch. This value determines the distance between each turn of wire. For constant wattage traces, the pitch must be uniform and precise. Industrial winding machines with PLC control allow for direct setting and fine-tuning of this parameter.

Speed Adjustment: Configure the winding speed. The maximum winding spindle speed (e.g., 4000 rpm) should be adjusted in relation to the pitch to ensure smooth winding without overlaps.

Tension Control: Establish the appropriate wire tension. Precise tension control is fundamental to avoid deformation or breakage, especially with fine wires. High-speed automatic winders typically incorporate advanced tension systems.

Testing and Calibration: Perform a small test run and verify the pitch using precision measuring tools. Adjust parameters as necessary until the required accuracy for your constant wattage traces is achieved.

Controlling fine wire tension is one of the most critical challenges in small-gauge manufacturing, where preventing wire breakage is paramount. Modern wire winding machines employ several strategies to ensure safe and precise winding:

Active Tension Systems: Unlike passive systems, active systems use tension sensors and actuators (often servo-motors) to continuously monitor and adjust wire tension in real-time. This is crucial for maintaining constant tension throughout the winding process.

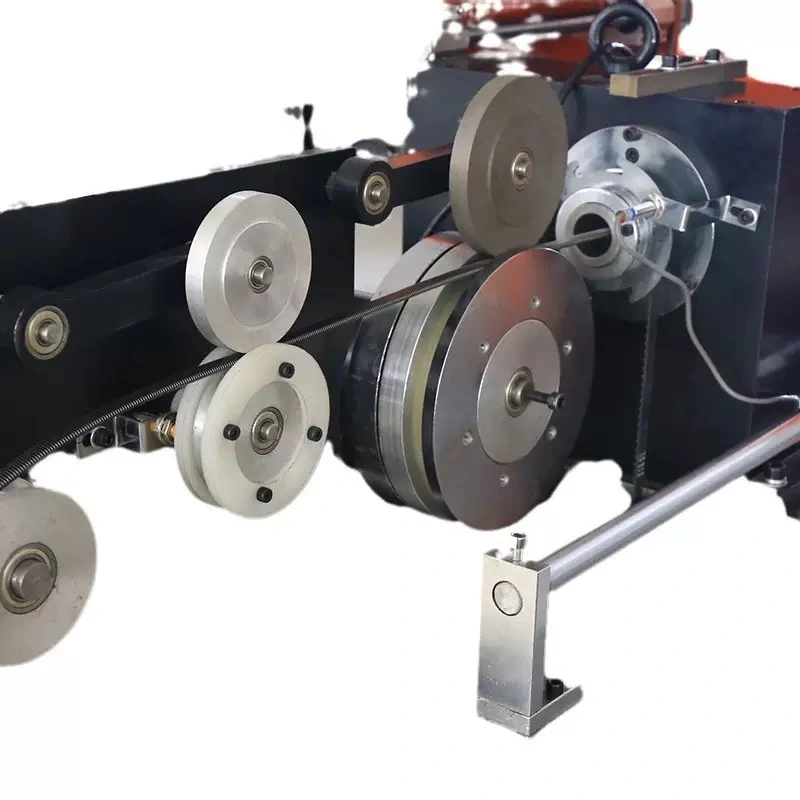

Servo-Motor Traction: A traction system driven by servo-motors (such as micro-caterpillar traction) provides extremely precise control over wire feed. This minimizes tension spikes and ensures smooth movement, significantly reducing the risk of breakage.

High-Precision Bearings: Using high-quality bearings, such as our NSK (Japan) bearings in the main spindle, reduces friction and vibration, contributing to more stable winding and a lower probability of wire breakage.

Acceleration/Deceleration Ramp Programming: Automatic winders allow for programming smooth acceleration and deceleration ramps at the start and end of winding, as well as during speed changes, to avoid tension shocks that could break the wire.

Wire-Break Sensors: The automatic wire-break shutdown function is an essential feature. These sensors instantly detect any interruption in the wire and stop the machine, preventing further damage and minimizing waste.

The integration of AI in winding control is revolutionizing the industry, transforming smart winding machines into proactive systems. Using sensors in winders along with industrial AI enables predictive maintenance and real-time quality control as follows:

Sensor Data Collection: Multiple sensors are installed at critical points of the automatic CNC winding machine, monitoring parameters such as wire tension, motor temperature, spindle vibration, winding speed, and pitch quality.

AI Data Analysis: Machine Learning algorithms process these vast datasets in real-time. AI can identify subtle patterns and anomalies indicating imminent component wear (for predictive maintenance) or deviations in winding quality (for real-time quality control).

Predictive Maintenance: Instead of reactive or time-based maintenance, AI predicts when a component is likely to fail. For example, a gradual increase in spindle vibration or motor temperature could indicate the need to replace a bearing before it causes a catastrophic failure.

Real-Time Quality Control: AI can compare current winding parameters with predefined quality standards. If it detects an inconsistent pitch, fluctuating tension, or any other defect, it can alert the operator or even automatically adjust machine parameters to correct the issue instantly.

Process Optimization: AI can also analyze historical data to identify optimal machine settings for different types of wire and coils, improving efficiency, reducing waste, and increasing the overall productivity of the industrial winding machine.
