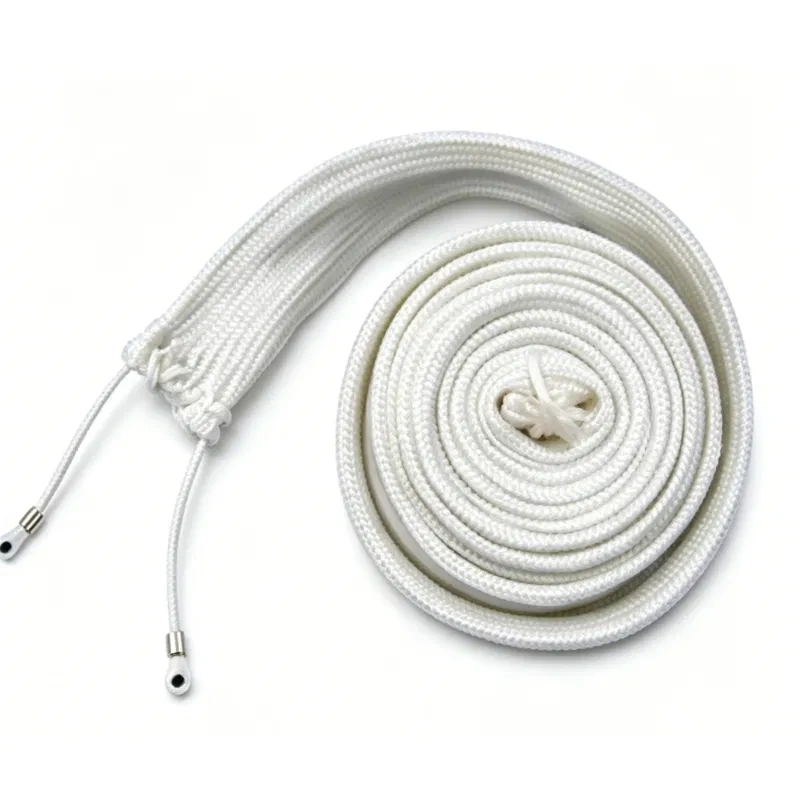

The ABBDC type glass fiber electric heating tape (heater) is a flexible heating element specifically designed for heat tracing and freeze protection of pipes, tanks, vessels, and other containers in industrial equipment. It utilizes a nickel-chromium alloy heating element and multi-layer alkali-free glass fiber insulation, featuring fast heating, simple installation, and safe, reliable operation.
This product is mainly composed of a nickel-chromium alloy heating tape (heating element) and multiple layers of alkali-free glass fiber (insulation layer). The alloy heating tape ensures rapid temperature rise and high thermal efficiency, while the glass fiber insulation layer provides excellent heat resistance and reliable electrical insulation performance. Its flexible structure allows it to be tightly wound around the surface of objects of various shapes for uniform heating. It is widely used in applications such as process temperature maintenance and frost protection.
Suitable for heating and heat maintenance of various industrial equipment tanks, pipes, valves, vessels, and other containers.
Typical applications: Temperature maintenance for chemical material pipelines, prevention of fuel line congealment, freeze protection for wastewater treatment facilities, container insulation in the food industry, etc.
Efficient Heating: The heating material is a nickel-chromium alloy tape, which heats up quickly with high thermal efficiency.
Safe Insulation: The insulation material is multi-layer alkali-free glass fiber, featuring high heat resistance (250°C) and reliable insulation performance (insulation resistance > 2 MΩ).
Flexible Design: The soft structure allows it to conform closely to surfaces of different shapes, ensuring uniform temperature distribution.
Easy Installation: It can be installed by direct winding without complex tools, making it convenient to use.
Long Service Life: Under normal operating conditions, the design service life can reach 3000 hours.
|
Item |
Specification/Description |
|---|---|
|
Product Model Series |
ABBDC-J₄-1-220/0.5 to ABBDC-J₄-1-220/1.8 |
|
Rated Voltage |
220V |
|
Rated Power |
0.5kW, 0.7kW, 1.0kW, 1.4kW, 1.8kW |
|
Corresponding Length & Width |
Refer to the detailed "Optional Configurations" table below |
|
Maximum Heat Resistance Temp. of Insulation Material |
250℃ |
|
Insulation Resistance |
> 2 MΩ |
|
Normal Service Life |
3000 hours |
|
Power Lead-out Direction |
Single-end, Double-end |
Standard Model Selection: You can choose from the following standard configurations based on required power, installation length, and available space:
|
Model |
Power (kW) |
Optional Length (m) |
Corresponding Width (mm) |
Power Lead-out Direction |
|---|---|---|---|---|
|
ABBDC-J₄-1-220/0.5 |
0.5 |
1.5 |
30 |
Single-end |
|
3 |
15 |
Double-end |
||
|
ABBDC-J₄-1-220/0.7 |
0.7 |
2 |
30 |
Single-end |
|
4 |
15 |
Double-end |
||
|
ABBDC-J₄-1-220/1 |
1.0 |
3 |
30 |
Single-end |
|
6 |
15 |
Double-end |
||
|
ABBDC-J₄-1-220/1.4 |
1.4 |
4 |
30 |
Single-end |
|
8 |
15 |
Double-end |
||
|
ABBDC-J₄-1-220/1.8 |
1.8 |
5 |
30 |
Single-end |
|
10 |
15 |
Double-end |
Customization Service: Non-standard customized solutions can be provided according to specific customer requirements for voltage, power, length, width, and special shapes (e.g., a narrower tape body customized for valves).
This product is suitable for industrial environments with relative humidity less than 80% and free of explosive gases. Its use is strictly prohibited in flammable or explosive atmospheres to ensure safety.
