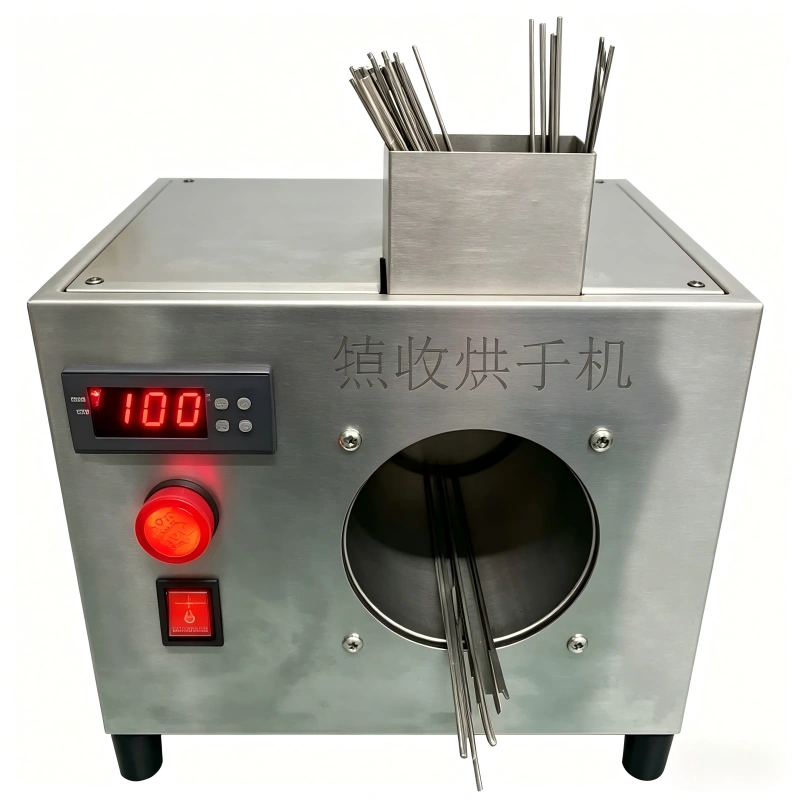

The X-B60 Drying Machine is a high-efficiency device specifically designed for the pre-welding treatment of MI cables and armored thermocouples. It can precisely control the drying temperature up to 200°C, effectively removing moisture from insulating materials, thereby ensuring welding quality and the stability and reliability of product performance.
The X-B60 Drying Machine is an indispensable key piece of equipment in the production and maintenance processes of MI cables and armored thermocouples. Its core function lies in thoroughly removing moisture from the insulating powder (such as magnesium oxide) and inside the cable through precise temperature control (up to 200°C) and high-efficiency dehumidification capability. Moisture is the main cause of decreased insulation performance in MI cables and welding defects in thermocouples. By optimizing the drying process, the X-B60 significantly improves the insulation resistance of armored cables and provides ideal pre-treatment conditions for subsequent precision welding (such as armor welding), thus ensuring the final product's electrical performance, mechanical strength, and long-term stability. Whether used in MI cable production lines or for custom processing of thermocouples, the X-B60 delivers outstanding performance and reliable assurance.
● MI Cable Production: Dries and dehumidifies mineral insulating powder and cables during the MI cable manufacturing process to ensure insulation performance.
● Armored Thermocouple Manufacturing: Pre-drying treatment of armored thermocouple wires before welding to prevent welding defects.
● Temperature Sensor Production: Applicable to the production of various types of armored temperature sensors, improving product quality and reliability.
● Aerospace and Defense: Manufacturing of special cables and sensors with extremely high requirements for insulation performance and reliability.
● Petrochemical Industry: Production of MI cables and thermocouples for use in harsh environments (high temperature, high humidity).
● Research Institutes and Laboratories: R&D, testing, and small-batch production of MI cables and thermocouples.
● Wire and Cable Industry: Drying treatment for special cables requiring high insulation performance.
● Precise Temperature Control: Drying temperature can be precisely adjusted within a range of up to 200°C, meeting the drying needs of different materials and processes.
● Efficient Dehumidification: Quickly and effectively removes moisture from MI cables and insulating materials, increasing insulation resistance.
● Optimizes Welding Quality: As a critical pre-treatment step before welding, it significantly reduces welding defects and improves welding strength and reliability.
● Improves Product Performance: Ensures the electrical performance and long-term stability of MI cables and thermocouples.
● Simple Operation: Intuitive control panel and simple operation process, easy to use and maintain daily.
● Compact Structure: Small footprint, easy to integrate into existing production lines or laboratory spaces.
● Energy Saving and Environmental Protection: Uses efficient heating elements and good thermal insulation design, reducing energy consumption.
|
Parameter Item |
Specification Description |
|---|---|
|
Model |
X-B60 |
|
Drying Temperature Range |
Ambient - 200°C (Adjustable) |
|
Temperature Control Accuracy |
±2°C |
|
Drying Method |
Internal Heated Circulating Air Drying |
|
Applicable Cable Types |
MI Cables, Armored Thermocouples, etc. |
|
Drying Chamber Size |
Based on Customization Requirements |
|
Rated Voltage |
AC 220V / 50Hz |
|
Rated Power |
Approx. 1.0 kW |
|
Control Method |
Digital Temperature Controller |
|
Display Method |
LED Digital Display |
|
Safety Protection |
Over-temperature Protection, Overload Protection |
|
Dimensions |
Approx. 350mm x 300mm x 280mm |
|
Weight |
Approx. 10kg |
We provide comprehensive customization services to ensure the X-B60 Drying Machine perfectly meets your specific needs:
● Drying Chamber Size Customization: Custom drying chambers of different sizes based on the length and diameter of the customer's cables to be dried.
● Temperature Range Extension: Customized solutions with higher or lower temperature ranges based on special process requirements.
● Automated Integration: Automated solutions integrated with loading/unloading systems and production line control systems for large-scale production lines.
● Special Material Compatibility: Optimization of drying parameters and internal structure for special types of insulating materials or cables.
● Data Logging and Monitoring: Optional temperature data logging and remote monitoring modules to meet quality traceability and smart manufacturing needs.
● On-site Installation and Training: Professional equipment installation, commissioning, and operator training services
The main function of the X-B60 MI Cable Drying Machine is to efficiently dry and dehumidify the mineral insulating powder and cable inside MI cables and armored thermocouples before welding. This thoroughly removes moisture, preventing issues such as bubbles and decreased insulation performance during the welding process, thereby significantly improving welding quality, insulation resistance, and the reliability and service life of the final product.
